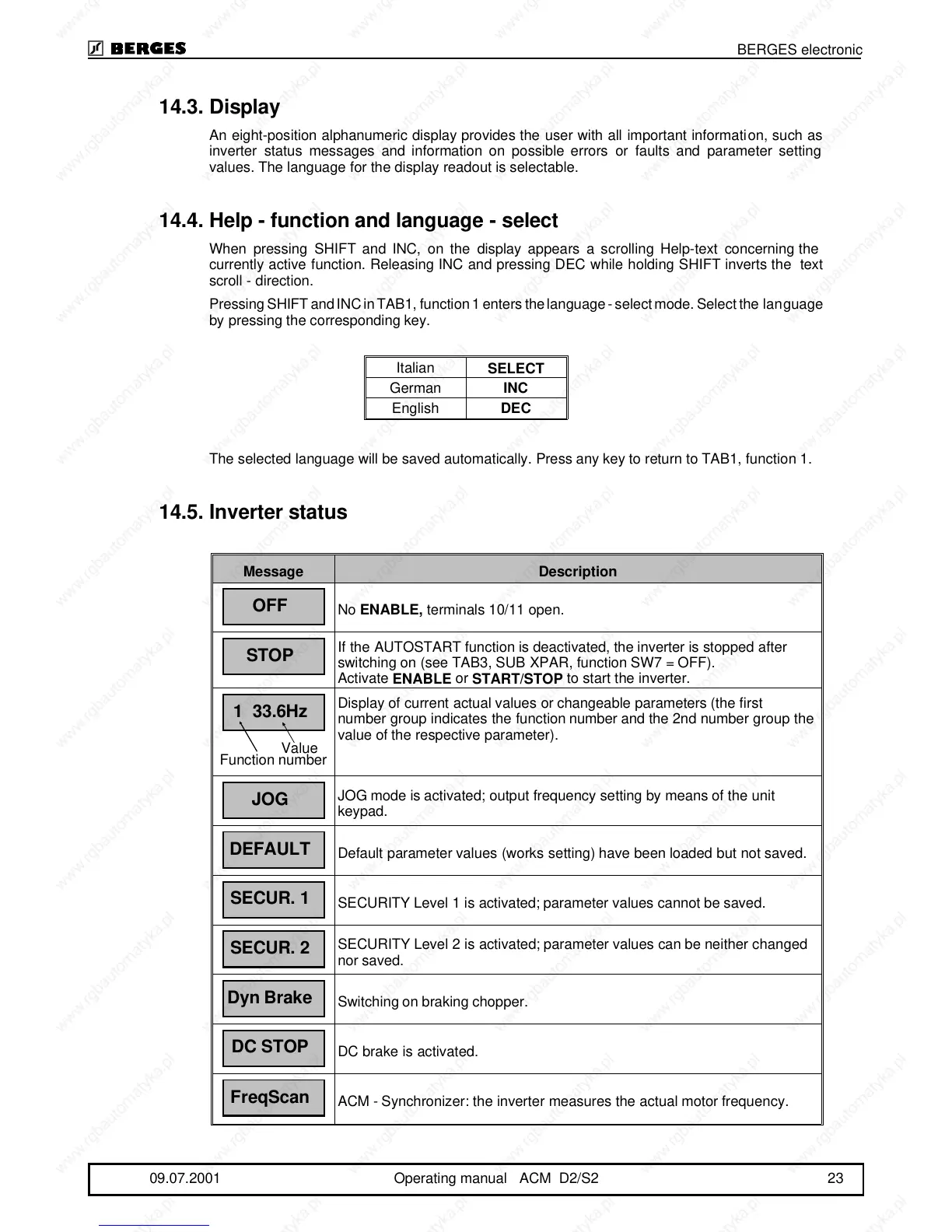

14.3.Display
An eight-position alphanumeric display provides the user with all important information, such as
inverter status messages and information on possible errors or faults and parameter setting
values. The language for the display readout is selectable.
14.4.Help - function and language - select
When pressing SHIFT and INC, on the display appears a scrolling Help-text concerning the
currently active function. Releasing INC and pressing DEC while holding SHIFT inverts the text
scroll - direction.
Pressing SHIFT and INC in TAB1, function 1 enters the language - select mode. Select the language
by pressing the corresponding key.
Italian
SELECT
German
INC
English
DEC
The selected language will be saved automatically. Press any key to return to TAB1, function 1.
14.5.Inverter status
Message Description
No
ENABLE,
terminals 10/11 open.
If the AUTOSTART function is deactivated, the inverter is stopped after
switching on (see TAB3, SUB XPAR, function SW7 = OFF).
Activate
ENABLE
or
START/STOP
to start the inverter.
Value
Function number
Display of current actual values or changeable parameters (the first
number group indicates the function number and the 2nd number group the
value of the respective parameter).
JOG mode is activated; output frequency setting by means of the unit
keypad.
Default parameter values (works setting) have been loaded but not saved.
SECURITY Level 1 is activated; parameter values cannot be saved.
SECURITY Level 2 is activated; parameter values can be neither changed
nor saved.
Switching on braking chopper.
DC brake is activated.
ACM - Synchronizer: the inverter measures the actual motor frequency.
OFF
STOP
1 33.6Hz
JOG
DEFAULT
SECUR. 1
SECUR. 2
Dyn Brake
DC STOP
FreqScan
BERGES electronic
09.07.2001 Operating manual ACM D2/S2 23
