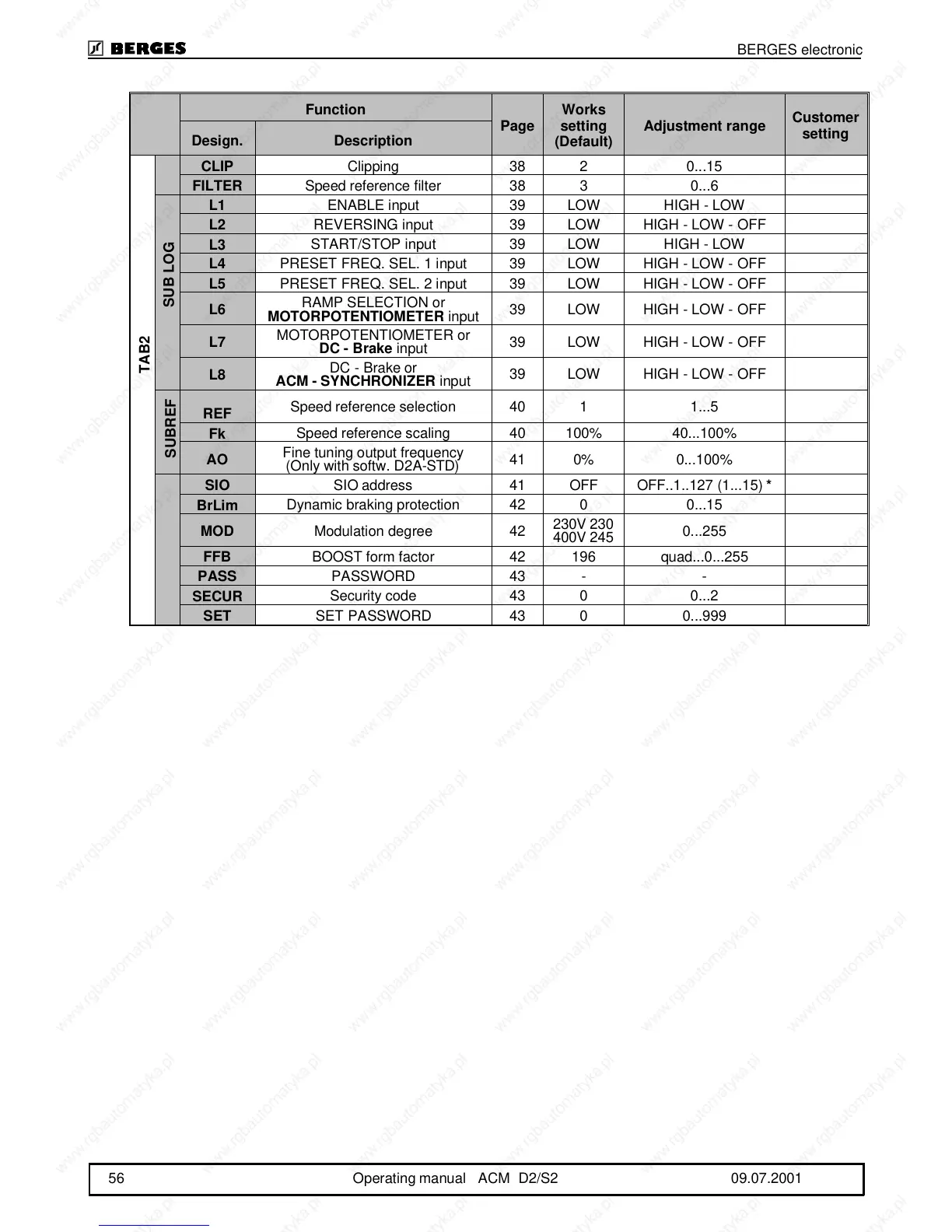

Berges ACM D2 - Notes; General Notes

Function
Page
Works
setting
(Default)
Adjustment range
Customer
setting
Design. Description
CLIP
Clipping 38 2 0...15
FILTER
Speed reference filter 38 3 0...6
L1
ENABLE input 39 LOW HIGH - LOW
L2
REVERSING input 39 LOW HIGH - LOW - OFF
L3
START/STOP input 39 LOW HIGH - LOW
L4
PRESET FREQ. SEL. 1 input 39 LOW HIGH - LOW - OFF
L5
PRESET FREQ. SEL. 2 input 39 LOW HIGH - LOW - OFF
L6
RAMP SELECTION or
MOTORPOTENTIOMETER
input
39 LOW HIGH - LOW - OFF
L7
MOTORPOTENTIOMETER or
DC - Brake
input
39 LOW HIGH - LOW - OFF
L8
DC - Brake or
ACM - SYNCHRONIZER
input
39 LOW HIGH - LOW - OFF
REF
Speed reference selection 40 1 1...5
Fk
Speed reference scaling 40 100% 40...100%
AO
Fine tuning output frequency
(Only with softw. D2A-STD)
41 0% 0...100%
SIO
SIO address 41 OFF OFF..1..127 (1...15)
*
BrLim
Dynamic braking protection 42 0 0...15
MOD
Modulation degree 42
230V 230
400V 245
0...255
FFB
BOOST form factor 42 196 quad...0...255
PASS
PASSWORD 43 - -
SECUR
Security code 43 0 0...2
SET
SET PASSWORD 43 0 0...999
TAB2
SUB LOG
SUBREF
