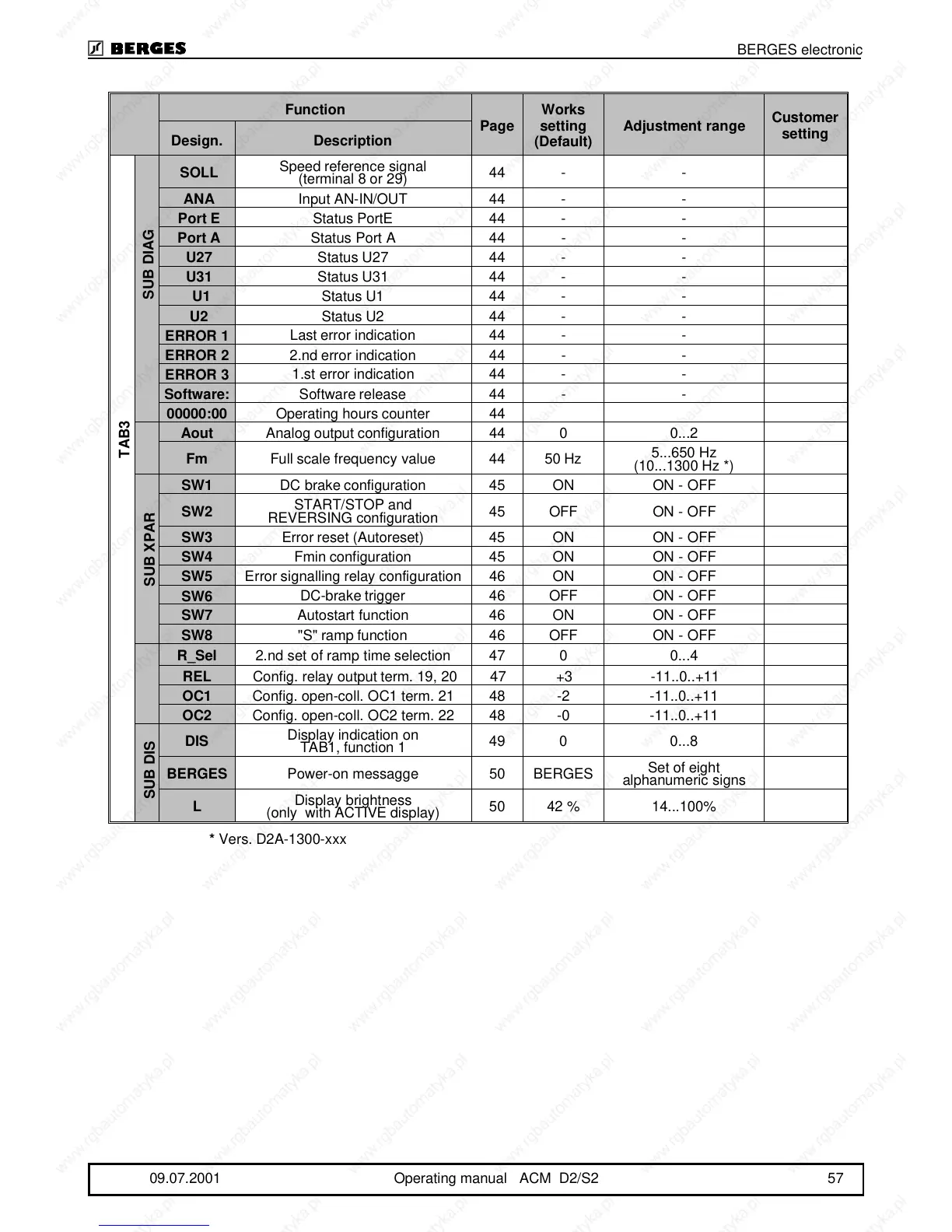

Function
Page
Works
setting
(Default)
Adjustment range
Customer
setting
Design. Description
SOLL
Speed reference signal
(terminal 8 or 29)
44 - -
ANA
Input AN-IN/OUT 44 - -
Port E
Status PortE 44 - -
Port A
Status Port A 44 - -
U27
Status U27 44 - -
U31
Status U31 44 - -
U1
Status U1 44 - -
U2
Status U2 44 - -
ERROR 1
Last error indication 44 - -
ERROR 2
2.nd error indication 44 - -
ERROR 3
1.st error indication 44 - -
Software:
Software release 44 - -
00000:00
Operating hours counter 44
Aout
Analog output configuration 44 0 0...2
Fm
Full scale frequency value 44 50 Hz
5...650 Hz
(10...1300 Hz *)
SW1
DC brake configuration 45 ON ON - OFF
SW2
START/STOP and
REVERSING configuration
45 OFF ON - OFF
SW3
Error reset (Autoreset) 45 ON ON - OFF
SW4
Fmin configuration 45 ON ON - OFF
SW5
Error signalling relay configuration 46 ON ON - OFF
SW6
DC-brake trigger 46 OFF ON - OFF
SW7
Autostart function 46 ON ON - OFF
SW8
"S" ramp function 46 OFF ON - OFF
R_Sel
2.nd set of ramp time selection 47 0 0...4
REL
Config. relay output term. 19, 20 47 +3 -11..0..+11
OC1
Config. open-coll. OC1 term. 21 48 -2 -11..0..+11
OC2
Config. open-coll. OC2 term. 22 48 -0 -11..0..+11
DIS
Display indication on
TAB1, function 1
49 0 0...8
BERGES
Power-on messagge 50 BERGES
Set of eight
alphanumeric signs
L
Display brightness
(only with ACTIVE display)
50 42 % 14...100%
*
Vers. D2A-1300-xxx
TAB3
SUB DIAG
SUB XPARSUB DIS
BERGES electronic
09.07.2001 Operating manual ACM D2/S2 57
