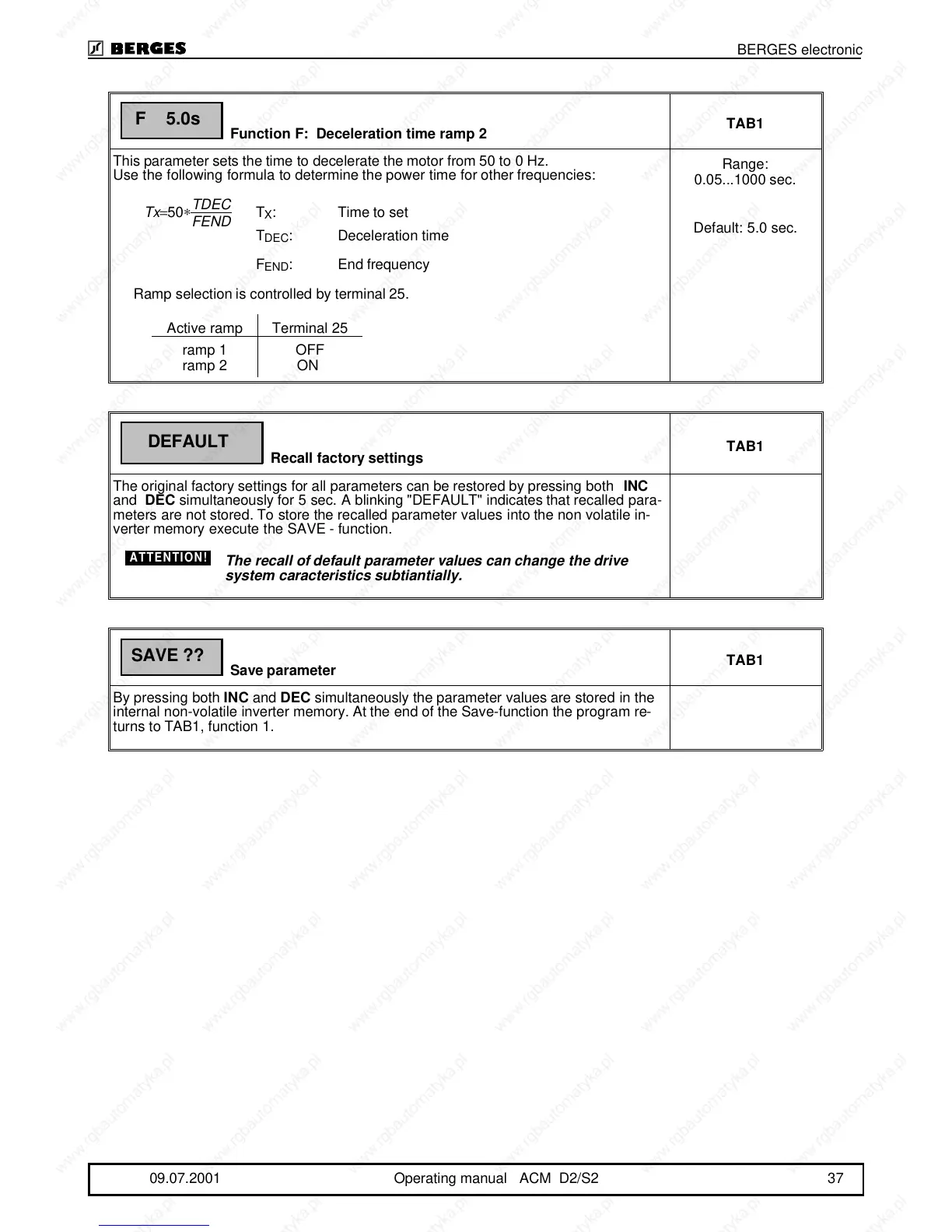

Function F: Deceleration time ramp 2
TAB1
This parameter sets the time to decelerate the motor from 50 to 0 Hz.
Use the following formula to determine the power time for other frequencies:
Tx
=50∗
TDEC
FEND
T
X
: Time to set
T
DEC
: Deceleration time
F
END
: End frequency
Ramp selection is controlled by terminal 25.
Range:
0.05...1000 sec.
Default: 5.0 sec.
Recall factory settings
TAB1
The original factory settings for all parameters can be restored by pressing both INC
and DEC simultaneously for 5 sec. A blinking "DEFAULT" indicates that recalled para-
meters are not stored. To store the recalled parameter values into the non volatile in-
verter memory execute the SAVE - function.
The recall of default parameter values can change the drive
system caracteristics subtiantially.
Save parameter
TAB1
By pressing both INC and DEC simultaneously the parameter values are stored in the
internal non-volatile inverter memory. At the end of the Save-function the program re-
turns to TAB1, function 1.
F 5.0s
Active ramp Terminal 25
ramp 1
ramp 2
OFF
ON
DEFAULT
ATTENTION!
SAVE ??
BERGES electronic
09.07.2001 Operating manual ACM D2/S2 37
