Important instructions on installation
In case of inadequate distance between the sensor and the pipe, use elastic pipe fittings (Fig. 25). Do not try to
move the pipe closer to the sensor by tightening the bolts (Fig. 26).
Do not try to move the pipe closer to the sensor by tightening the bolts.
Also avoid the following positions (*) :
(*) Note: Insertion meters can also be installed horizontally.
DO NOT install the sensor on vertical pipes with a free outlet or at the highest point of the pipe system.

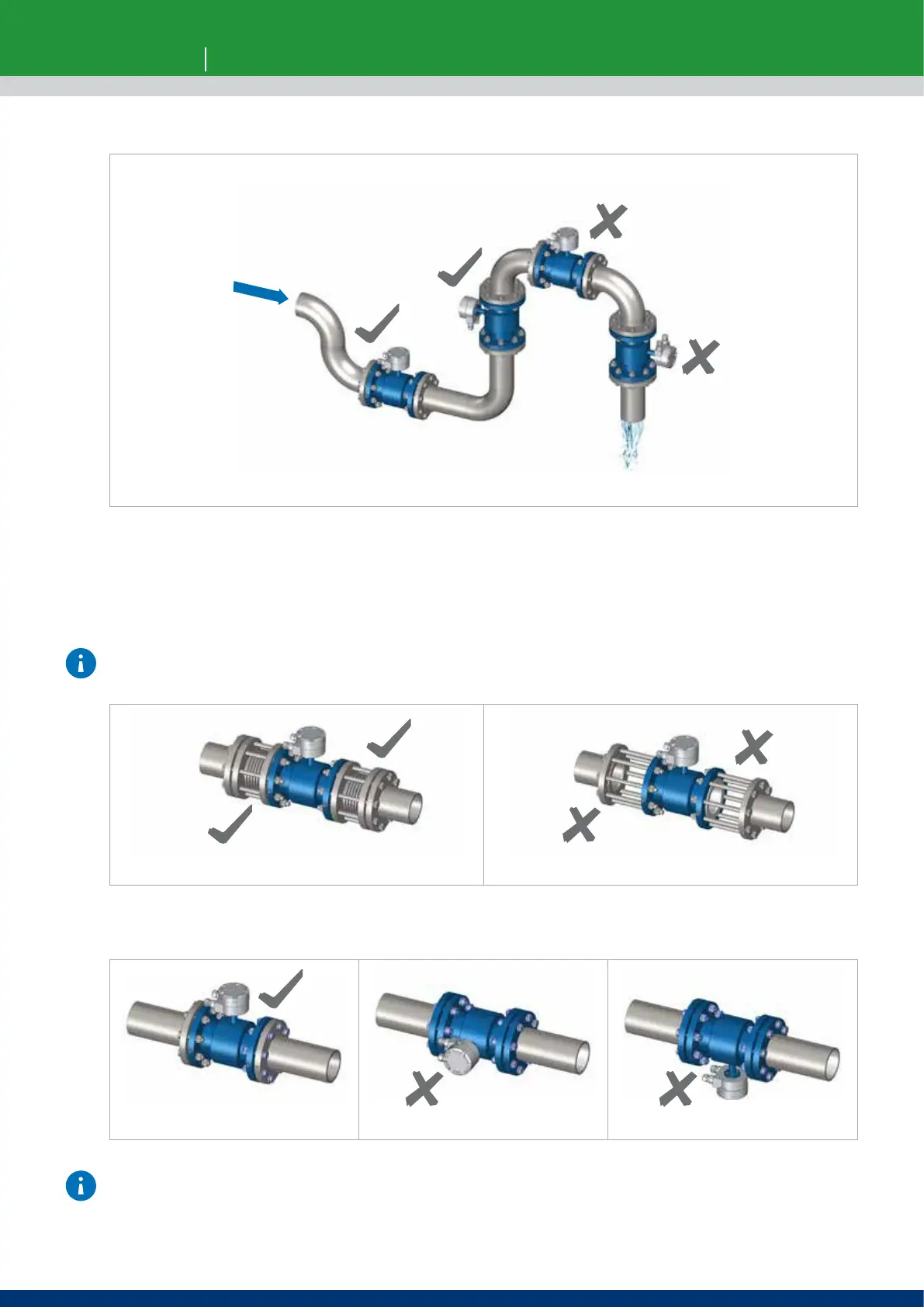

Fig. 24 Incorrect installation
Fig. 25 Correct fixing Fig. 26 Incorrect fixing
Fig. 27 Correct position Fig. 28 Incorrect position Fig. 29 Incorrect position
