7 . 4 . 2 Calculation of the insertion depth
The insertion depth I can be determinated using the following formula:
I = –
Di
8
In order to precisely set the insertion depth, it is possible to use the control value M
1
:
M
1
= L - S - –
Di
8
Where:

L = Flowmeter length = 367mm

Di = Internal pipe diameter

S = Thickness of the pipe, including possible coating
74
L = 367
M
M
S
S
Ø Di
A

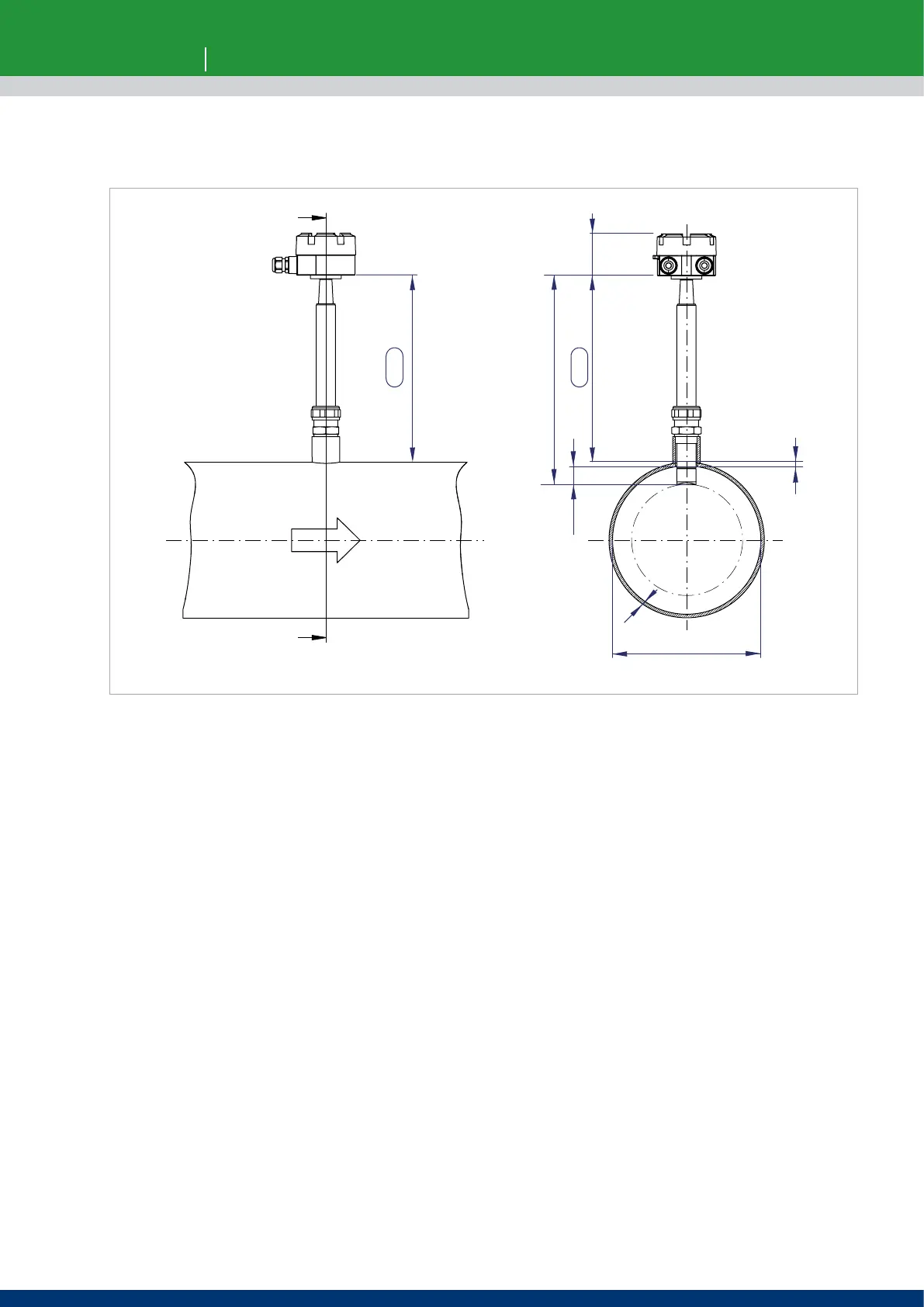

A Sez. A-A
1/8Di
Fig. 77
