5 . 2 ELECTRICAL DIAGRAMS
5 . 2 . 1 Connection with standard single-shielded electrode cable
The shields must ONLY be connected on the converter side.
5 . 2 . 2 Connection with standard double-shielded electrode cable
The shield of the coil cable must be connected ONLY on the converter side, as well as the INTERNAL shield of
the electrode cable. The EXTERNAL shield of the electrode cable must be connected to the case on the earthing
point of the separation box of the sensor.
A
B
T
C
D
E
F
A
B
T
C
D
E
F
Converter
Coils cable
Electrodes cable
Separation box of the sensor

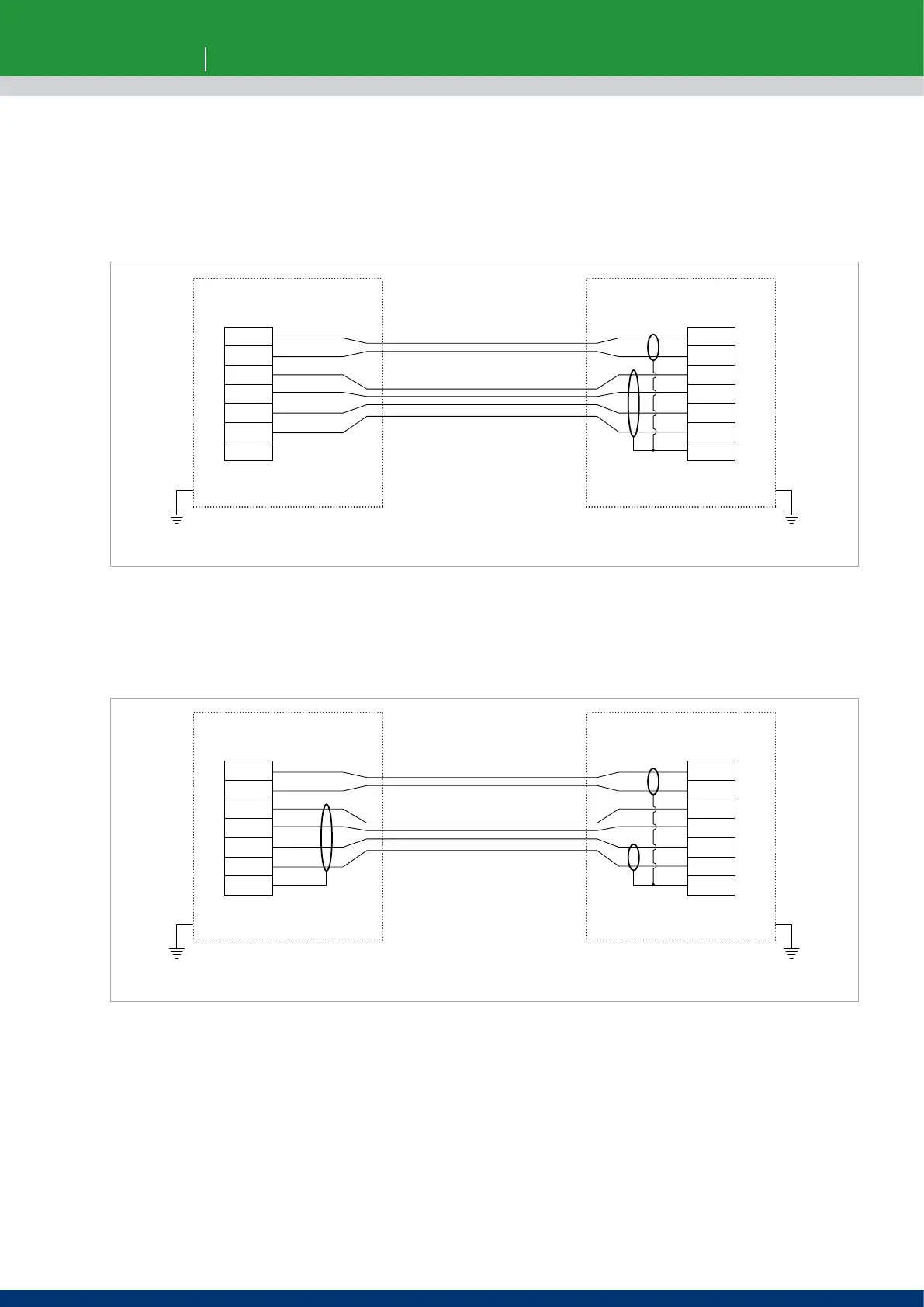

Fig. 52 Standard single-shielded cables - C022
A
B
T
C
D
E
F
A
B
T
C
D
E
F
Converter
Coils cable
Electrodes cable
Separation box of the sensor
Fig. 53 Standard single-shielded cables - C028
