. 5 . 1 Dimensions and main features
The MUT2770 sensor is suitable for fixed installation in medium-large diameter pipes. It can be supplied in
dierent sizes depending on the size of the pipe in which it will be installed, starting from a minimum of DN100
up to DN2500.
The installation and assembly/disassembly of this meter requires a 50mm hole drilling on the pipe and a flanged
sleeve welding.
ATTENTION: For installation, assembly, and disassembly of the meter, the pipe must be empty - the sensor does
not have Hot-Tap functionality.
The maximum pressure at which the meter can operate is 25bar.
NOTE: The supply of the flowmeter includes a flanged sleeve that has to be installed on the pipe after cutting
it to the right size.

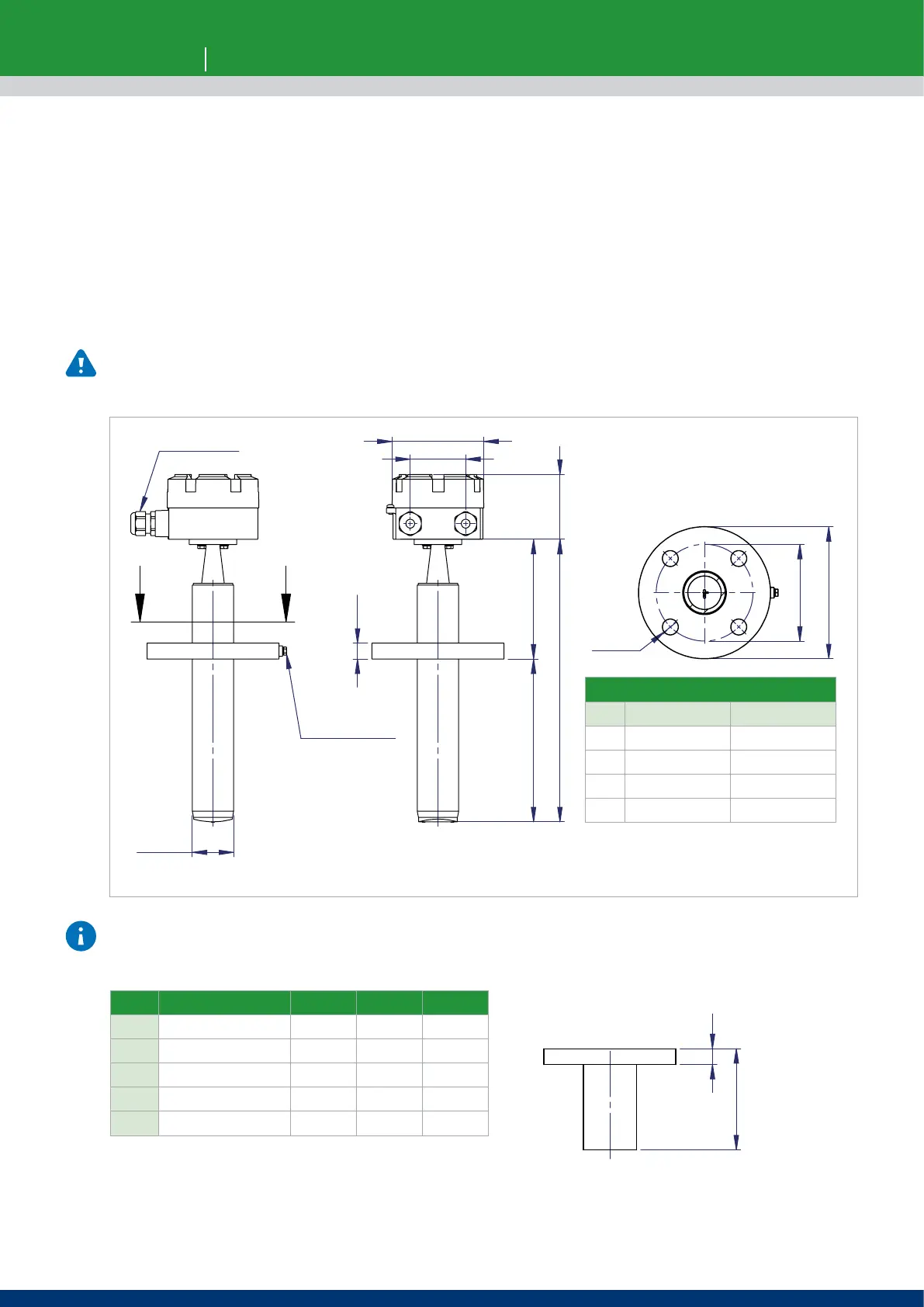

Size DN Range L Li Ld
A 100…500 251 115 115
B 600…1100 321 185 115
C 1200…1600 400 264 115
D 1700…2100 466 330 115
E 2200…2500 555 419 141
Mounting sleeve
Sf
Ld
2xM10x1.5
Ø 104
Ø 47
C C
63
74
Dp
4xDf
De
136Li
Sf
L
SECTION C-C
Flange
Grounding
Messa a terra
Flange dimensions
UNI - EN1092 ANSI150
Dp 110 98.4
De 150 125
Df 18 16
Sf 18 20
Fig. 85
