Irrigation IOM
Sensors
| 32 |
5 ELECTRICAL CONNECTION
5
.
1
SEPARATE VERSION SENSOR CONNECTION
All operations on the electrical connections must be carried out if the instrument is disconnected from the mains
and/or from the battery!
All operations performed on the electrical junction box or the electrical components of the device must be carried
out by duly trained and specialized personnel.
The sensor is supplied with cables connected and resin coated in the separation box unless otherwise requested
by the customer.

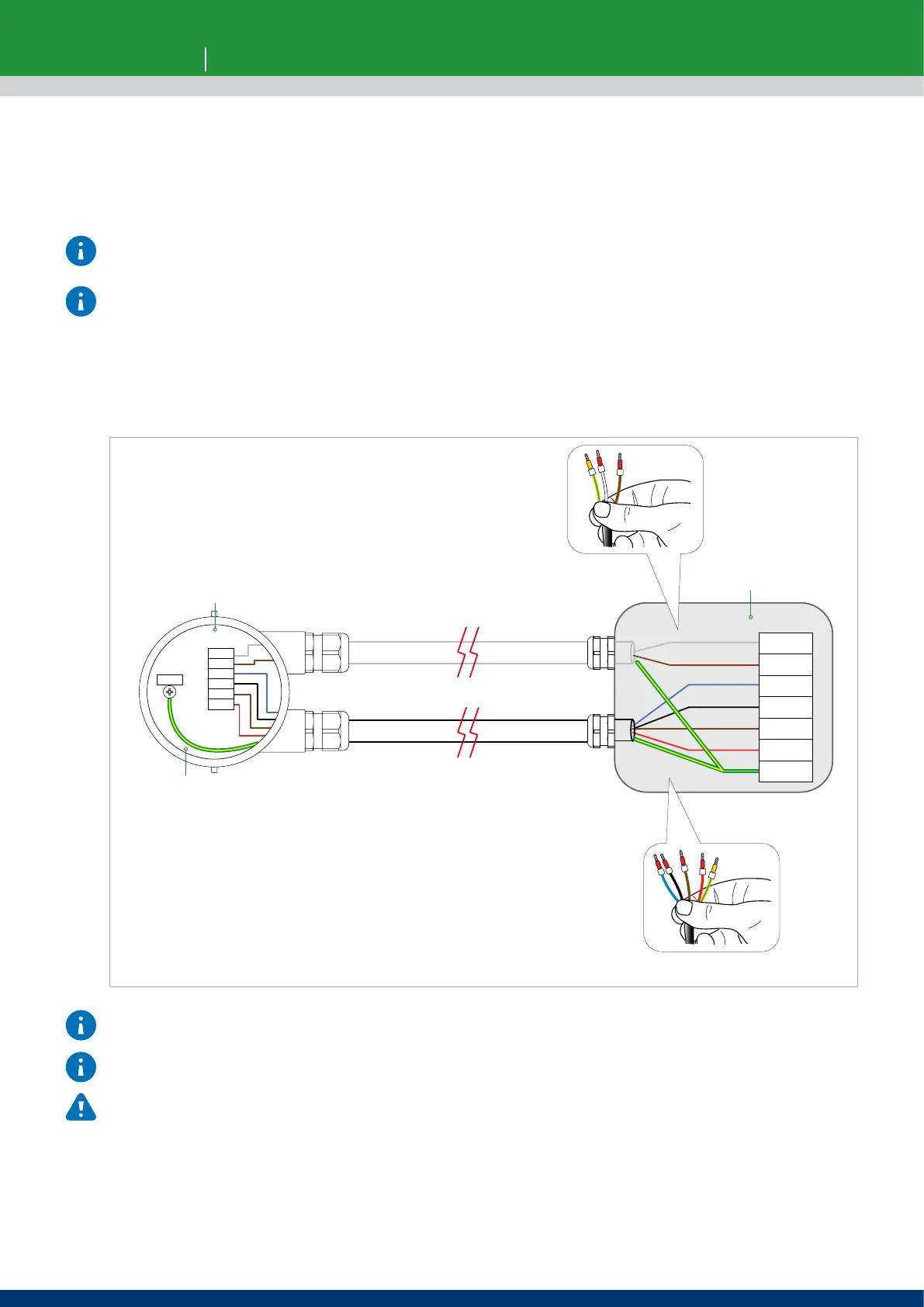

The following diagrams, for the connection of the separation cables between sensor and converter, may vary
according to the type of converter; therefore, follow the indications given in the relevant documentation.
Info: If cables in the coil are used, always use the ferrules for the connections in the terminal board and adequately
insulate the shields.
Info: use only cables supplied by Euromag International.
ATTENTION: After making all the necessary connections, make sure to properly tighten the cable glands and the
cover, in order to protect the insulation of the cables and the electrical/electronic boards from humidity and water
in case the converter is installed outdoors. Refer to the manual of the relative converter for more information.
A
B
T
C
D
E
F
A
B
T
C
D
E
F
F
E
D
C
T
F
B
A
ONLY
DOUBLESHIELDED
CABLES C028
JUNCTION BOX OF
THE SENSOR
JUNCTION BOX OF
THE CONVERTER
Fig. 51
