6 PRESSURE TAP
The MUT2200EL sensor can be optionally supplied with a ⁄ ”GAS pressure plug to which a pressure transducer
can be connected.
The pressure transducer can be supplied by Euromag on request, and it will be integrated into the converter, or
a third-party sensor can be used.
It is recommended to place a valve between the pressure tap and the transducer so that the transducer can be
assembled and disassembled while keeping the pipeline under pressure.
Characteristics and dimensions of the pressure transducer supplied by Euromag may vary depending on the
model of the connected converter.
⁄” GAS/BPS
TAPPING
Valve
Pressure
transducer

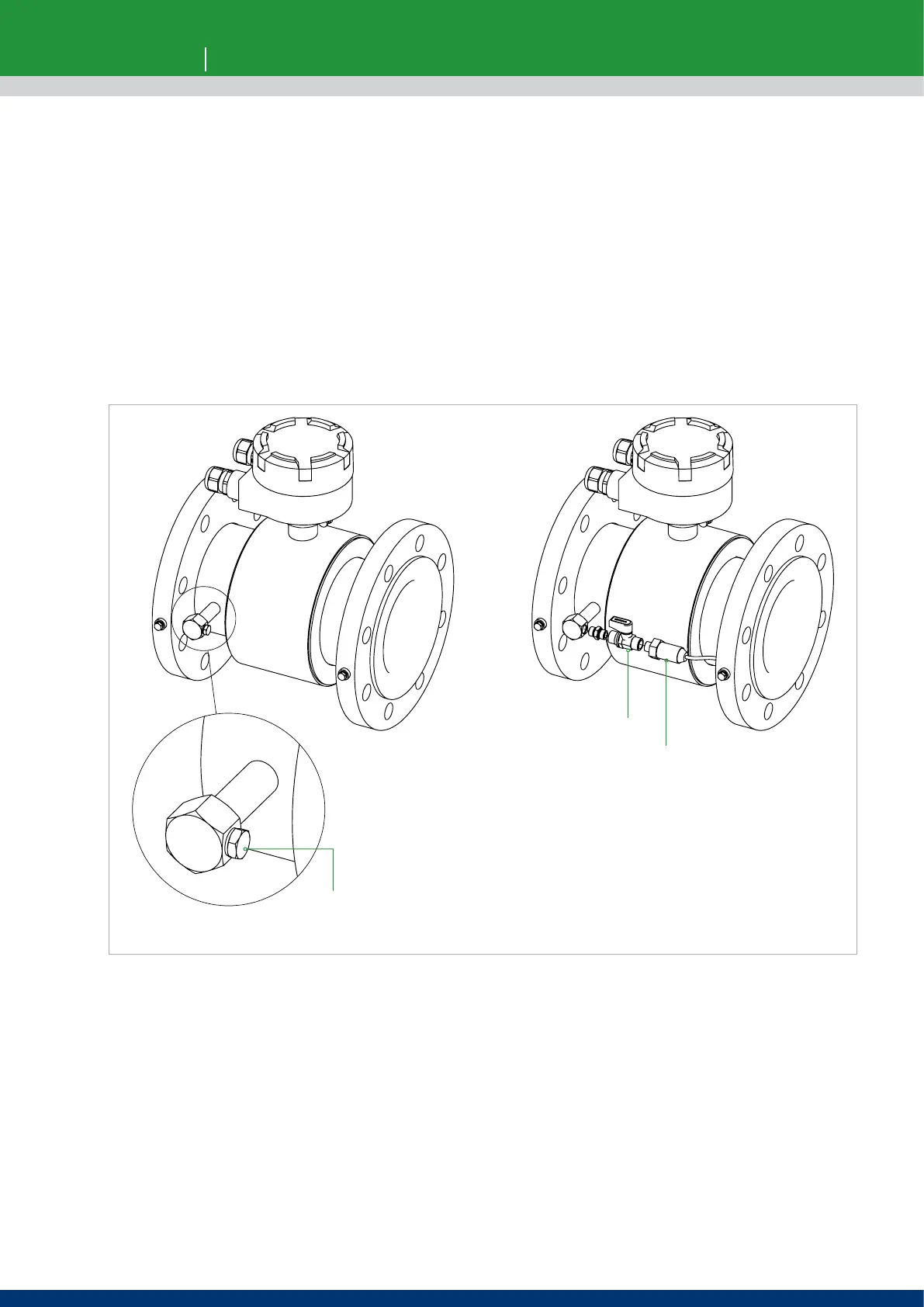

Fig. 58
