BERMAD MUT2200EL - Calculation of the Insertion Depth

Irrigation IOM
Sensors
| 40 |
7 . 3 . 2 Calculation of the insertion depth
The insertion depth I can be determinated using the following formula:
I = –
Di
8
In order to precisely set the insertion depth, it is possible to use the control value M
1
:
M
1
= L - S - –
Di
8
Where:

L = Flowmeter length according to the table of Fig. 63

Di = Internal pipe diameter

S = Thickness of the pipe, including possible coating

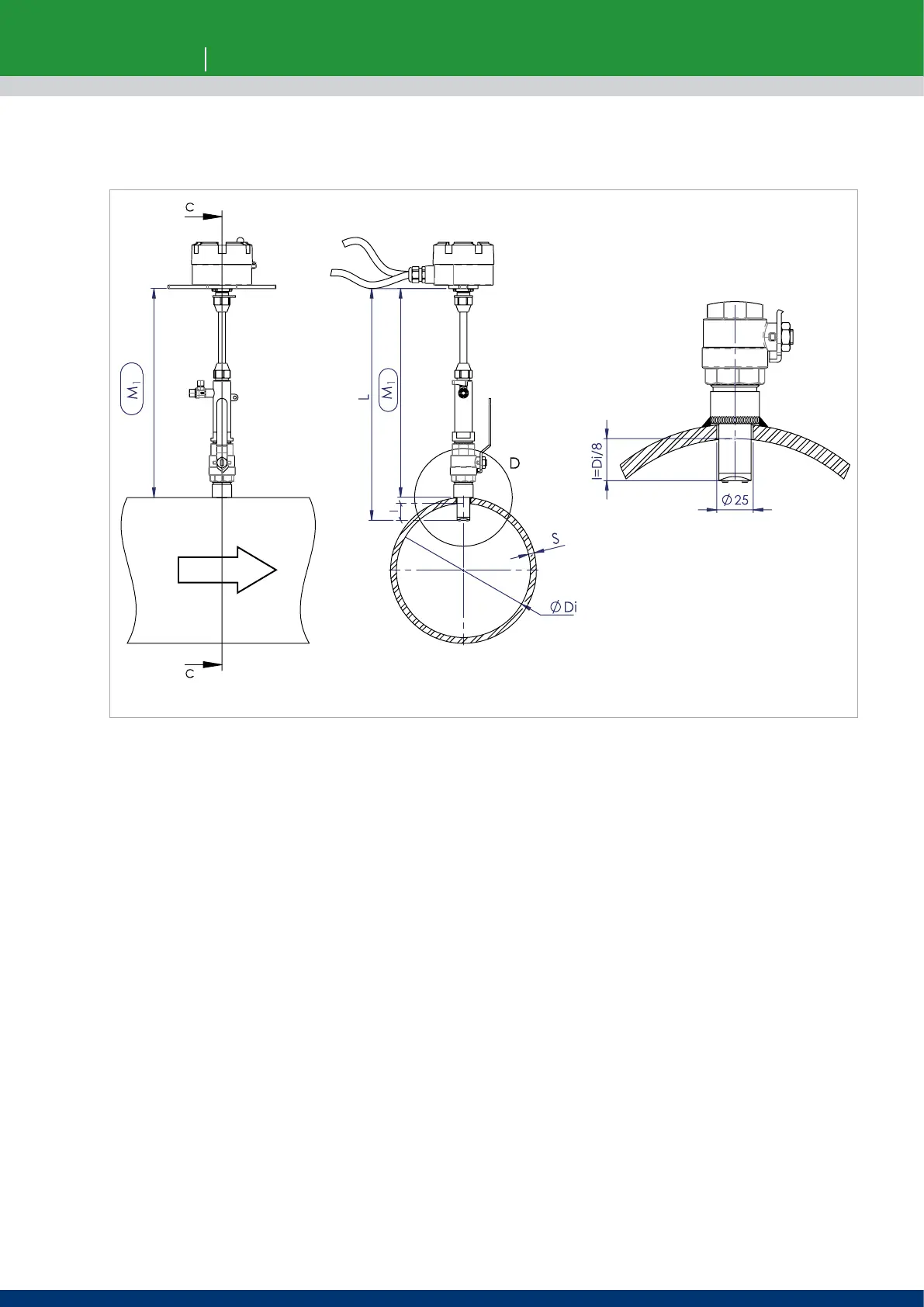

DETAIL D
Scale 1:2
SECTION C-C
Fig. 64
