Irrigation IOM
Sensors
| 20 |

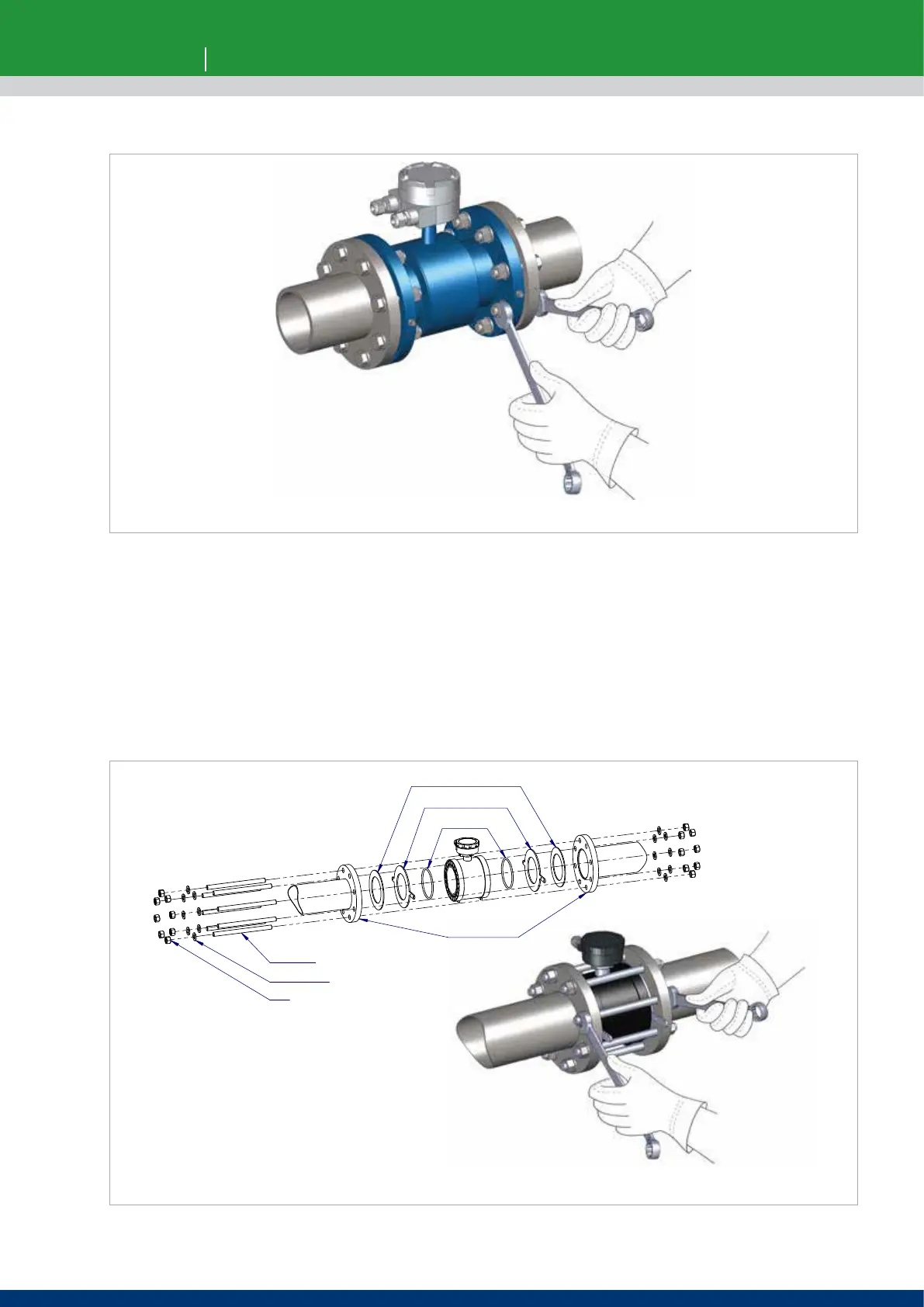

Carefully follow the instructions given in the diagrams. Check the correct centering of the sensor before you
tighten the flanges and proceed following the steps described here.
Step 1. ≈ 50% of the maximum tightening torque
Step 2. ≈ 80% of the maximum tightening torque
Step 3. 100% of the maximum tightening torque given in the diagram
All the values are theoretical and have been calculated for optimal conditions and with the use of carbon steel
flanges.
Wafer Sensors
Fig. 33 Flange tightening
Grounding Rings
Flat Gasket
O-Rings
Stud Bolt
Piping Flanges
Nut
Flat Washer
Fig. 34 Flange tightening
