Berthoud HERMES 800 - Optional Tape Gauge; Recommended Boom Height; Rinsing Tank Description

10 82.526 - HERMES

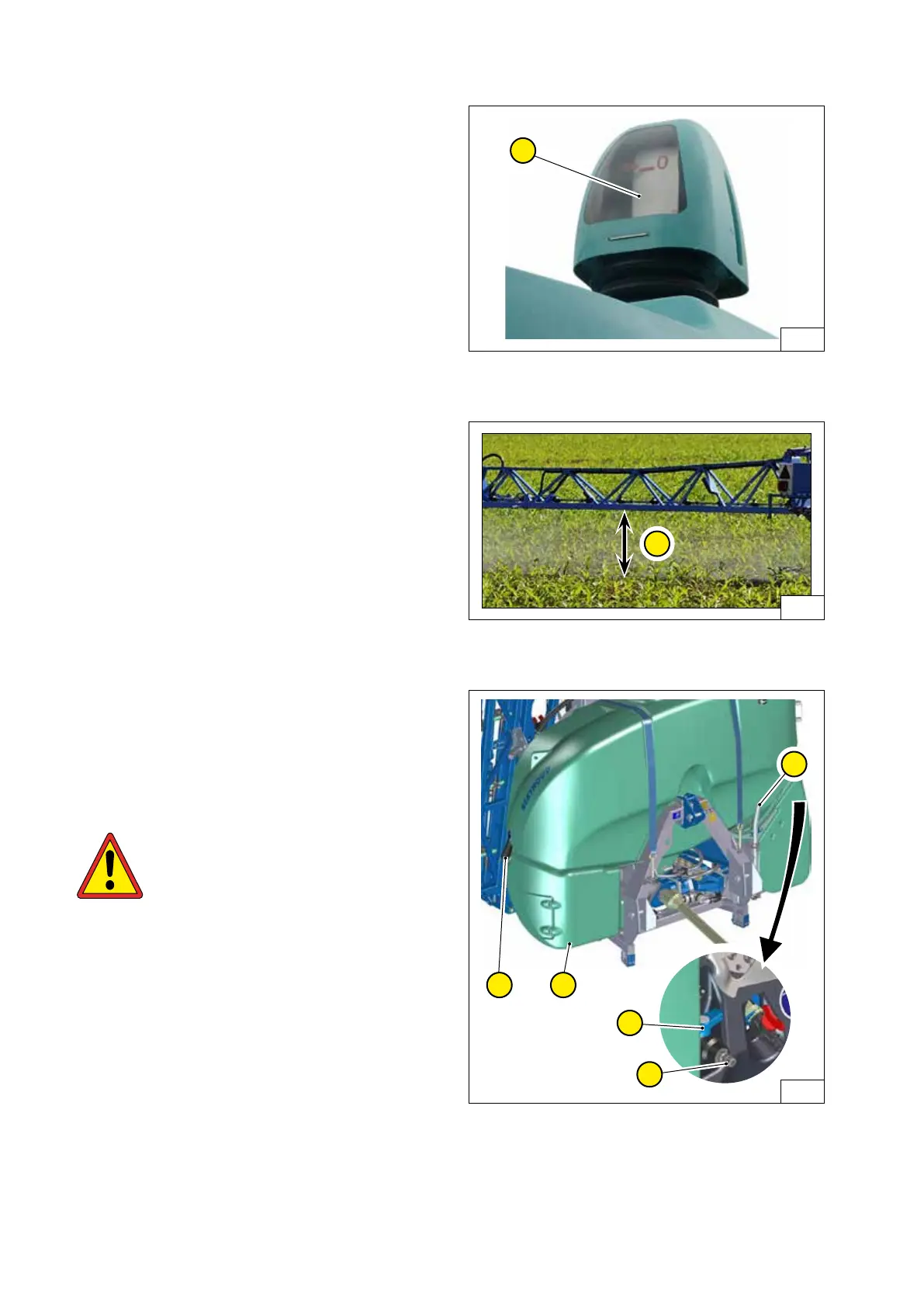

2.3 TAPE GAUGE (Option)
A tape gauge (1), rhighly visible from inside the tractor
cab and at control station (BERLOGIC) is positioned
on the top of the equipment. It shows the volume
contained in the main tank.
1
05
2.4 BOOM HEIGHT
A working height (H) between 50 and 60cm above
the surface to be treated is recommended. It is dened
by the nozzle spraying angle and spacing.
There is a risk of drift with a greater height.
H
06
2.5 RINSING TANK
A 120-litre clean water tank (2) is used to rinse
the sprayer.
The rinsing tank (2) is positioned under the right
hand side of the main tank.
Its lling level can be seen from the tractor cab and
at the control station via a direct read oat gauge (3).
IMPORTANT:
The rinsing tank MUST be lled with
clean water, not under pressure:
• Via the cover (1).
• Or via the connector (4) situated
on the control station. To ll, open
valve (D).
07
1
4
D
2
3
