14 82.526 - HERMES
4. MAIN SPRAYER FUNCTIONS
WITH A GAMA 101 OR GAMA 130 PUMP

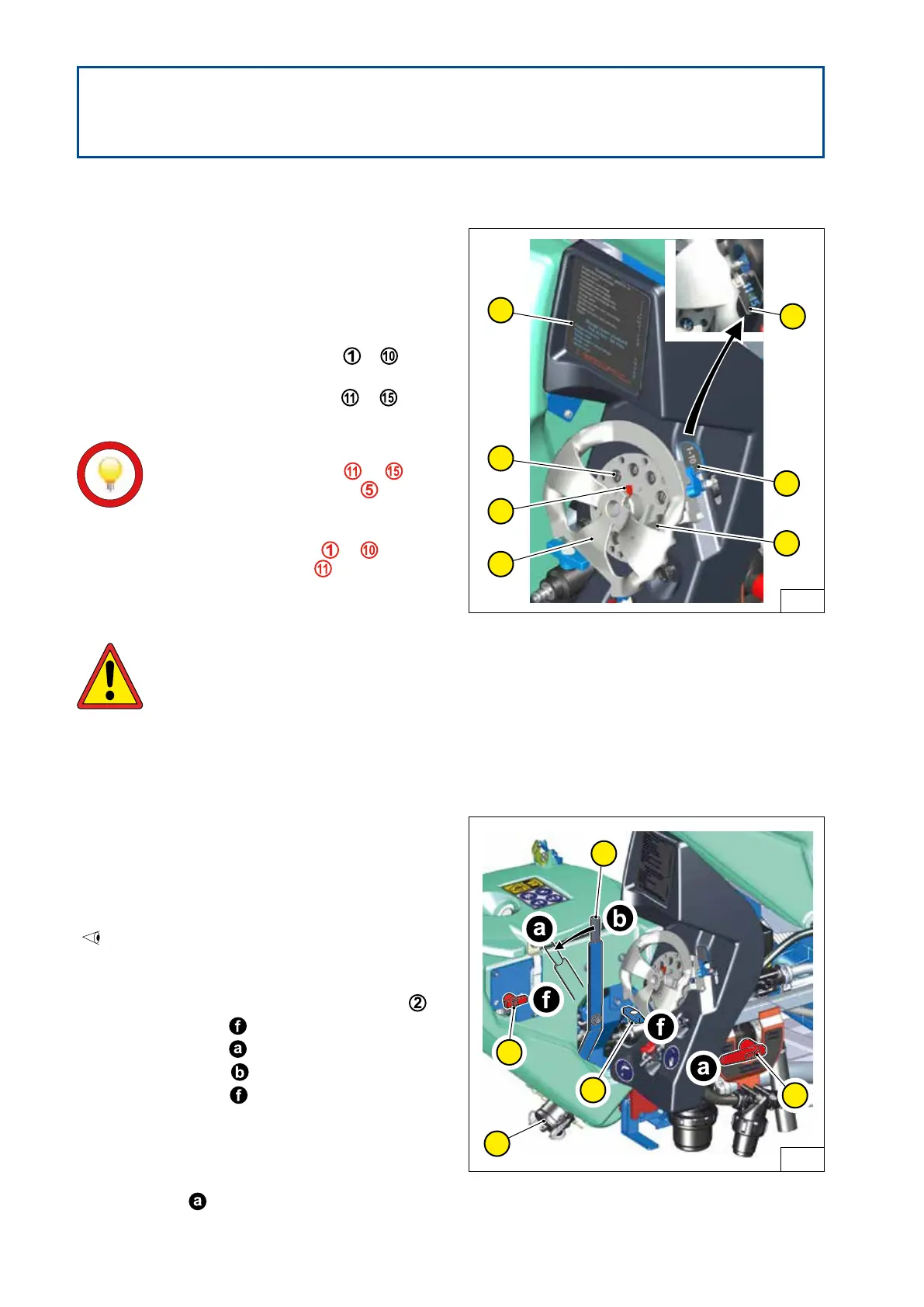

4.1 ADJUSTING THE VALVES
The main functions are shown on the BERLOGIC
(list (1), gure 12).
To obtain the desired position, pull the indexing palette
(6) towards you and turn the wheel (4) to position the
index (3) opposite the desired function on the disc (2)
and then release the indexing palette (6).
The white numbers on the disc (2) from
to refer
to the main functions.
The blue numbers on the disc (2) from
to refer
to the complete rinsing functions.
NOTE:
• For access to functions
to , set
the index (3) to position on the
disc (2) and move the palette (5)
to the right.
• to return to functions
to , set the
index (3) to position on the disc (2)
and move the palette (5) to the left.
12
5
6
3
4
2
1
5
WARNING:
All operations on valves must be done with the power take-off stationary.
4.2 FILLING THE MAIN TANK
Via the manhole (gravity):
• Open the cover on the top of the tank.
Via the external suction device without using
the hopper:
There should be a quantity of water in the main tank
before you start. This water can be poured through
the manhole or be drawn in from the rinsing tank
(
4.4, page 16).
• Attach the lling pipe to the quick connector (1)
(gure 13).
• Set the index on the steering wheel in position
.
• Valve (A) in position
.
• Valve (B) in position
.
• Lever (C) in position
.
• Valve (D) in position
.
• Dip the lling pipe into the water to be pumped.
• Engage the tractor's power take-off and bring it to
540 rpm.
• When the lling operation is complete, set the lever
(C) to position
.
• Remove the lling pipe and replace the cap on the
quick connector (1).
13
B
1
D
C
A
