Berthoud HERMES 800 User Manual

16 82.526 - HERMES

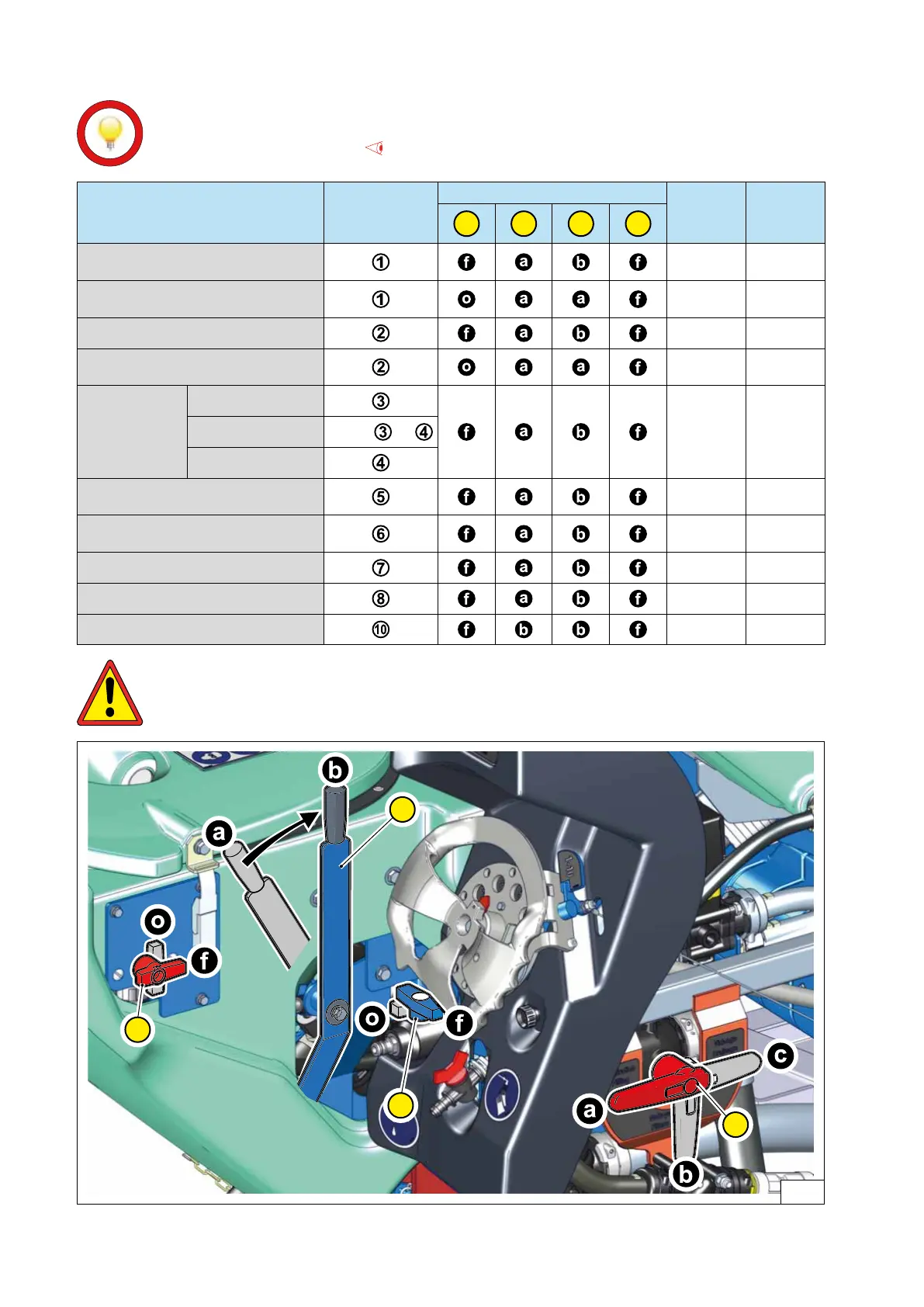

4.4 SPRAYING FUNCTIONS: POSITIONS 1-10
NOTE:
The rinsing functions allow partial rinsing if there is no change of products but not a complete
rinsing of the circuit (for that,
4.5).
FUNCTIONS
Position of the
index on the
wheel
Position of the valves
State of the
sections
Power
take-off
A B C D
Priming / Filling the main tank from
outside
Closed 540 rpm
Mixing the product via the hopper using
the rinsing tank
Closed 540 rpm
Filling the main tank from outside
Closed 540 rpm
Mixing the product via the hopper using
the main tank
Closed 540 rpm
Spraying
Without agitation
Open 540 rpmWith 50% agitation
Between and
With 100 % agitation
Rinsing the boom using the rinsing tank
(clean water)
Open 300 rpm
Rinsing the main tank using the rinsing
tank (clean water)
Closed 300 rpm
Rinsing the main tank using the main tank
Closed 300 rpm
External washing option
Closed 300 rpm
Isolating the circuit (cleaning the lters)
Closed 0 rpm
WARNING
All operations on valves must be done with the power take-off stationary.
16
B
D
C
A
