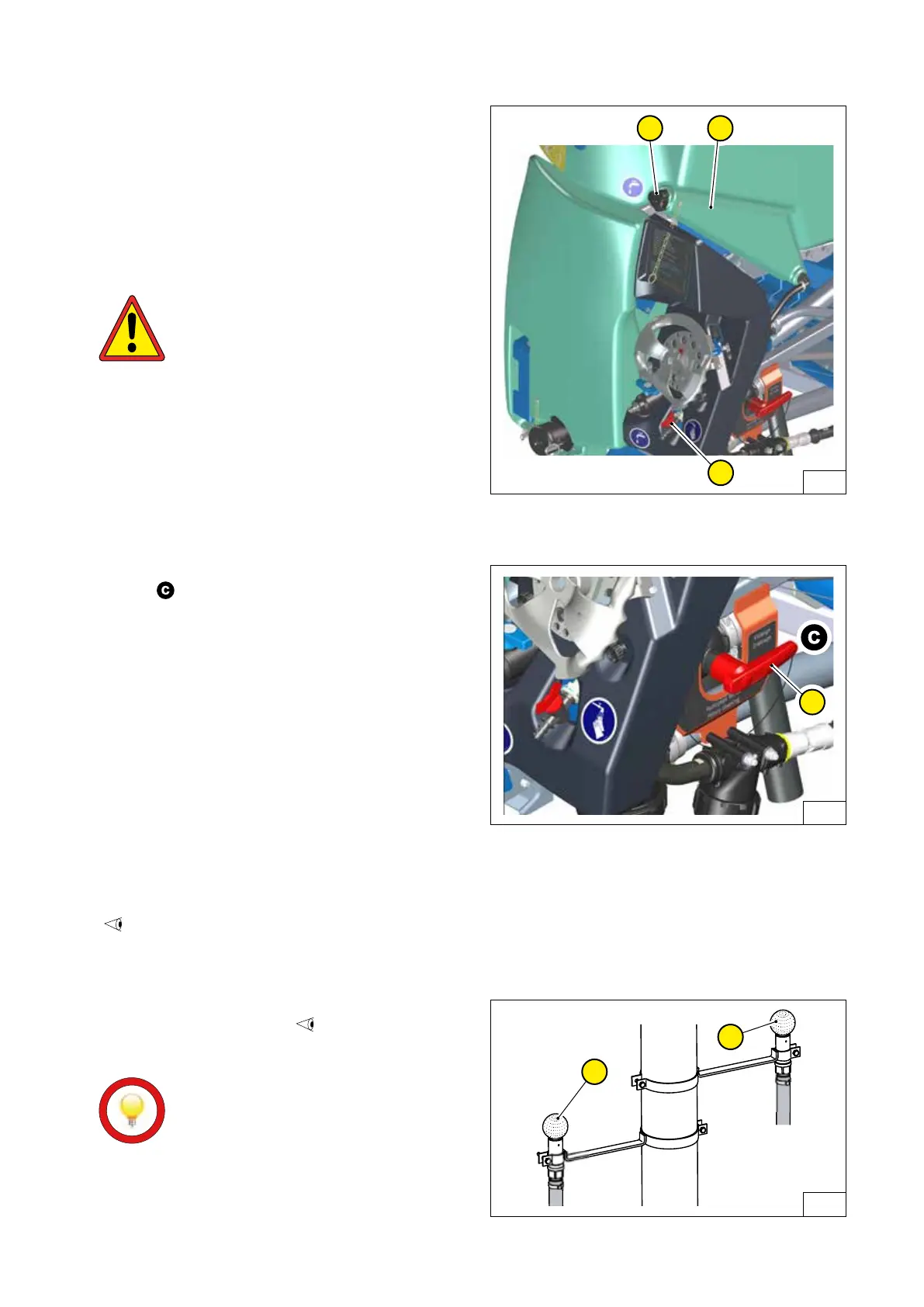

82.526 - HERMES 11
2.6 HANDWASH TANK
08
3
21
For hygiene and convenience: An 18-litre clean water
tank (2), separate from the rinse tank is provided for
washing your hands and all body parts (face, eyes,
etc.) contaminated by the product.
The tank is on the left of the main tank; the tap (3)
is accessed under the control wheel on the control
station.
To wash your hands, open the tap (3) to the
desired ow.
WARNING:
The handwash tank MUST be lled
with clean, unpressurised water, via
the cover (1).
2.7 DRAINING THE MAIN TANK
Turn the valve (1) on the control station to
position (gure 09).
Recover the liquid from the tank in a container
suitable for phytosanitary residues.
09
1
2.8 AGITATION
Hydraulic agitation produces a uniform product mixture in the tank, before and during the spraying operation
( 4.4, page 16 for the position of the valves).
2.9 RINSING BALLS
The balls (1) on the gauge tube inside the main tank
provide the rinsing function ( 4.4, page 16 or 4.5,
page 17 for the various rinsing phases).
NOTE:
With a direct read external gauge, there
is one rinsing ball.
With a tape gauge, there are two rinsing
balls
10
1
1
