6 82.526 - HERMES

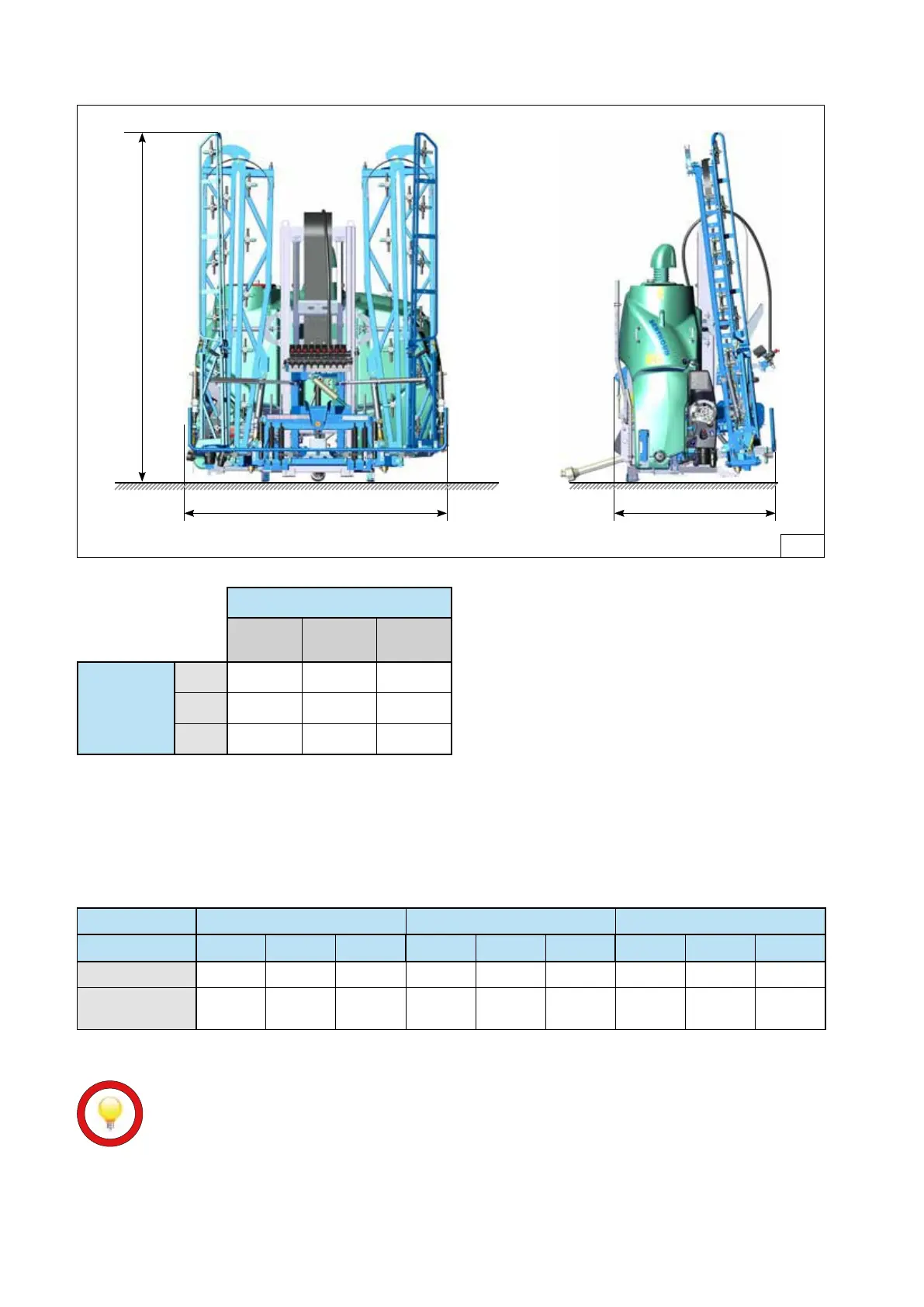

1.2 OVERALL DIMENSIONS
01
B
CA
BOOMS
ALSR 15 ALSR 16 ALSR 18
HERMES
A 2.450 m 2.450 m 2.450 m
B 2.615 m 3.150 m 3.150 m
C 1.665 m 1.665 m 1.665 m
The height should be understood with the equipment on its support on the ground (without wheels).
1.3 WEIGHTS TABLE
The data below relates to France only (see DREAL document).
EQUIPMENT HERMES 800 HERMES 1000 HERMES 1200
BOOM ALSR 15 ALSR 16 ALSR 18 ALSR 15 ALSR 16 ALSR 18 ALSR 15 ALSR 16 ALSR 18
Kerb weight 915 kg 925 kg 930 kg 925 kg 935 kg 940 kg 930 kg 940 kg 945 kg
Max. gross
vehicle weight
2015 kg 2115 kg 2120 kg 2440 kg 2450 kg 2455 kg 2720 kg 2730 kg 2735 kg
These weights are to be understood in the equipment's heaviest conguration (options, settings, suspensions).
NOTE:
Before you hitch the equipment, it is recommended that you check the maximum permissible load
on your tractor coupling.
This information will be provided by your tractor supplier in the technical handbook of your tractor..
