82.526 - HERMES 9
2. PRESENTATION OF THE EQUIPMENT

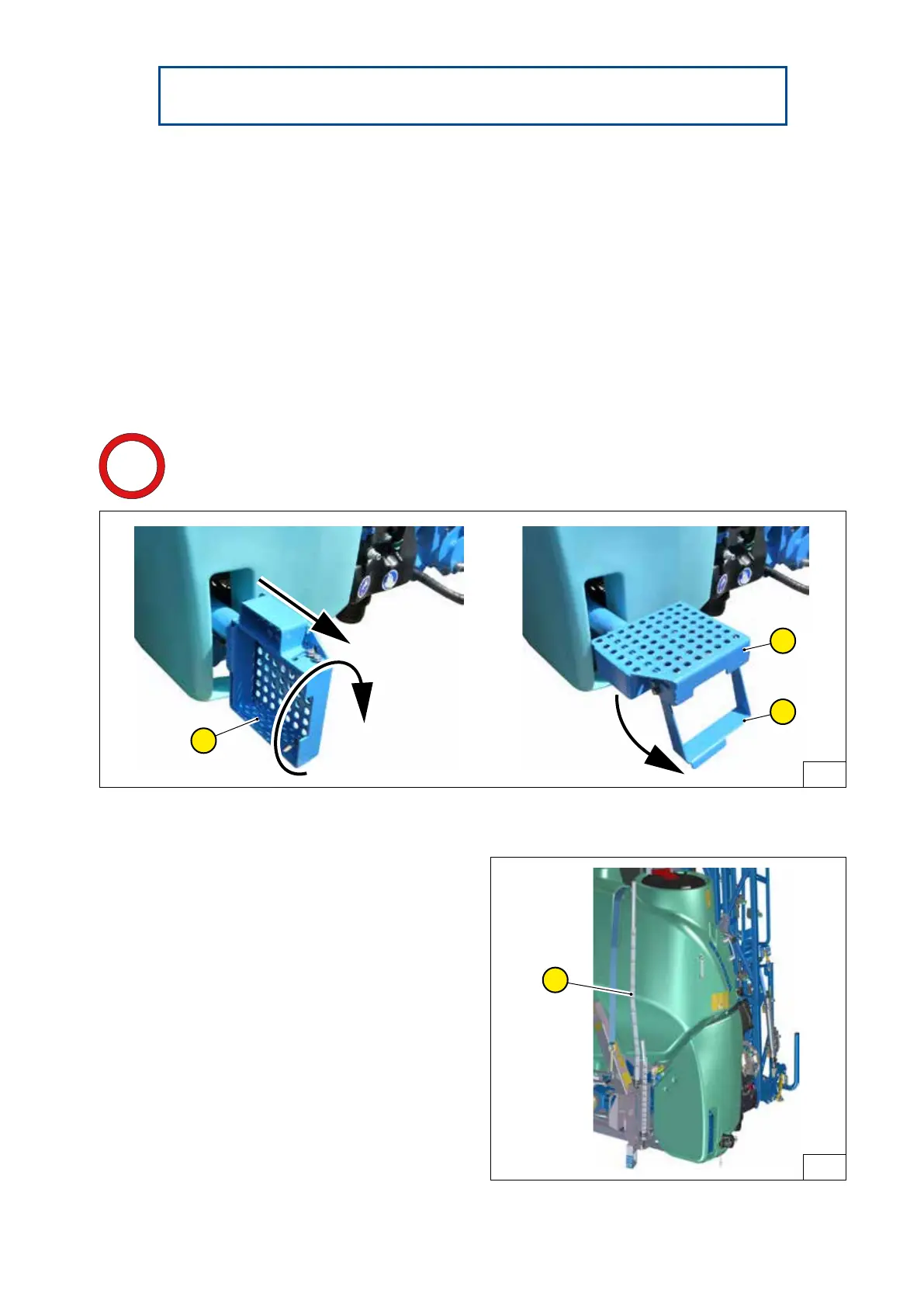

2.1 STEP
A non-slip step (1), housed in the hopper, provides safe access to the manhole (hopper in closed position).
To remove the step from its housing:
• Pull the step towards you (1) and pull it out all the way.
• Turn it clockwise until it is horizontal.
• Lower the riser (2).
To return the step to its housing:
• Fold up the riser (2).
• Turn the step (1) anti-clockwise into the vertical.
• Push it home until it locks.
IMPORTANT:
Whenever the sprayer is in motion, the step (1) must be locked in its housing.
1
1
2
03
2.2 DIRECT READ FLOAT GAUGE
A direct read oat gauge (1), highly visible from inside
the tractor cab and at control station (BERLOGIC) is
positioned on the front left of the equipment. It shows
the volume contained in the main tank.
1
04
