82.526 - HERMES 15
4.3 INDUCTION HOPPER
The Induction hopper is used to mix phytosanitary
powders and liquids while the main tank is being lled.
This feature ensures that the product is mixed
perfectly with the water and makes the work easier
at the same time.
There are three different ways of mixing:
1 - By drawing liquid from the main tank.
2 - By drawing liquid from the rinsing tank.
3 - By drawing it in from outside.
NOTE:
When the lever (C) is in position
,
drawing in from outside is cut off.
In case 2, drawing in clean water has several
advantages:
• Beingable to rinse accessories, cans and the
hopper with clean water.
• Being able to clean the induction hopper circuit
immediately after use.
NOTE:
It is necessary to partly ll the main
tank (
4.2) before incorporating in the
hopper.
Position of the index on the wheel
in each case:
Suction point
Position of
the index on
the wheel
Power
take-off
speed
1 - Main tank
540 rpm
2 - rinsing tank
540 rpm
3 - External
540 rpm
OperatiOn Of the hOpper
• Set the wheel to the desired position (see table
above).
• Press the pedal (1) and pull the hopper towards
you to lower it.
• Unlock the lid and open it.
• Pour the phytosanitary product into the hopper.
• Valve (A) in position
.
• Valve (B) in position
.
• Lever (C) in position
.
• Valve (D) in position
.
• Engage the tractor's power take-off.
• To empty the hopper:
- Replace the cover and lock it.
The product is incorporated and mixed in the
sprayer's main tank.
• To rinse the induction hopper:
- Set the index on the wheel in position
.
- Open valve (A) in position
(gure 14);
it actuates the rinsing manifold in the hopper.
- After this operation, close valve (A) in position
.
NOTE:
Close valve (A), position
, as soon
as the hopper is empty, so as not to
produce foam in the main tank.

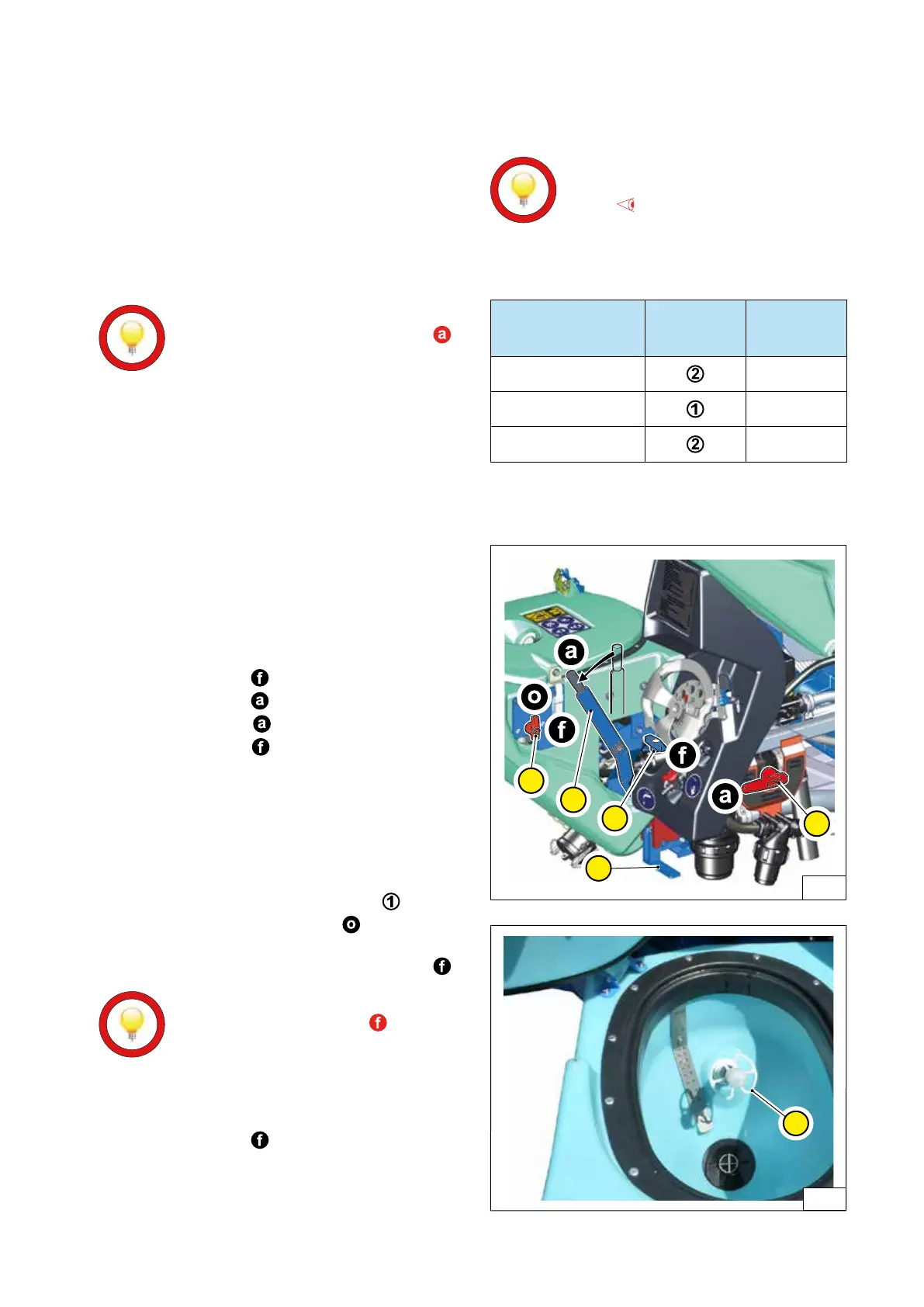

rinsing cans
• Valve (A) in position (gure 14).
• Put the product can on the part (1) (gure 15)
and press.
14
B
1
D
A
C
1
15
