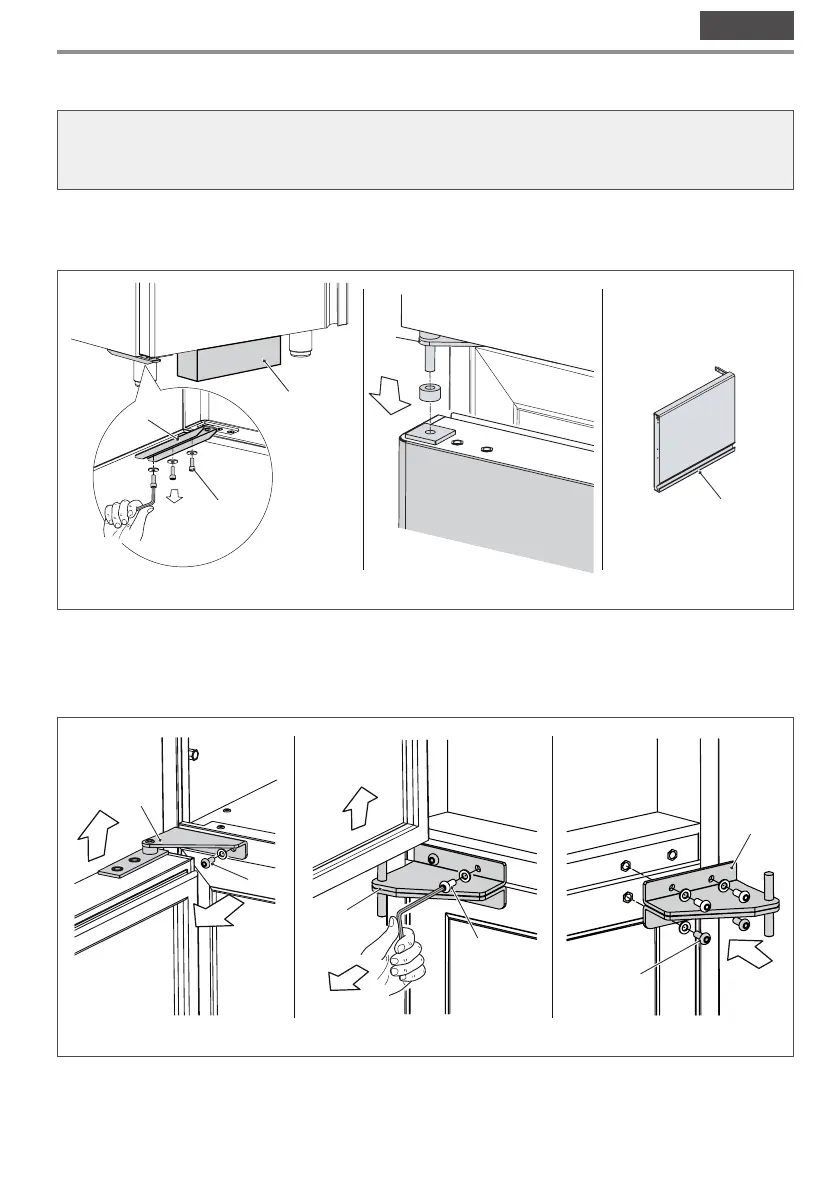

– place a spacer (2) under the lower door to support it;
– remove the screws (3) from the lower bracket (4);
m
BE CAREFUL
Once the screws have been removed, the bracket will turn inwards: assist it and leave it hanging free from
the door.
– support the lower door, remove the support spacer and allow it to drop a few centimetres until it slides off the pin
of the upper central hinge (5);
– rest the long side of the door on the floor (6), with the hinges facing upwards;
2
6
3
4
5
Fig. 15
– open the upper door
– remove the upper left hinge (6) by removing the screws(7);
– remove the door by lifting it off the central hinge (5);
– remove the central hinge (5) by removing the screws (8);
– reassemble the central hinge (5) on the right using the screws that were previously removed;
6
8
8
5
5
7
Fig. 16
