– rest the upper door on the central hinge
– open the door so that you can secure the upper bracket (1) with the relevant screws (7);
– rest the lower door on the appliance and insert the upper cap (13) on the pin of the central hinge (5);
– place a spacer (2) under the door to keep it in place;
– line the lower bracket (4) up with the holes on the appliance and secure it with the screws (3);
– remove the spacer;
– apply the upper front control panel to the appliance, securing it in place with the relevant fixing screws;
– reconnect the electrical connectors which were previously disconnected;
2
7
3
4
1

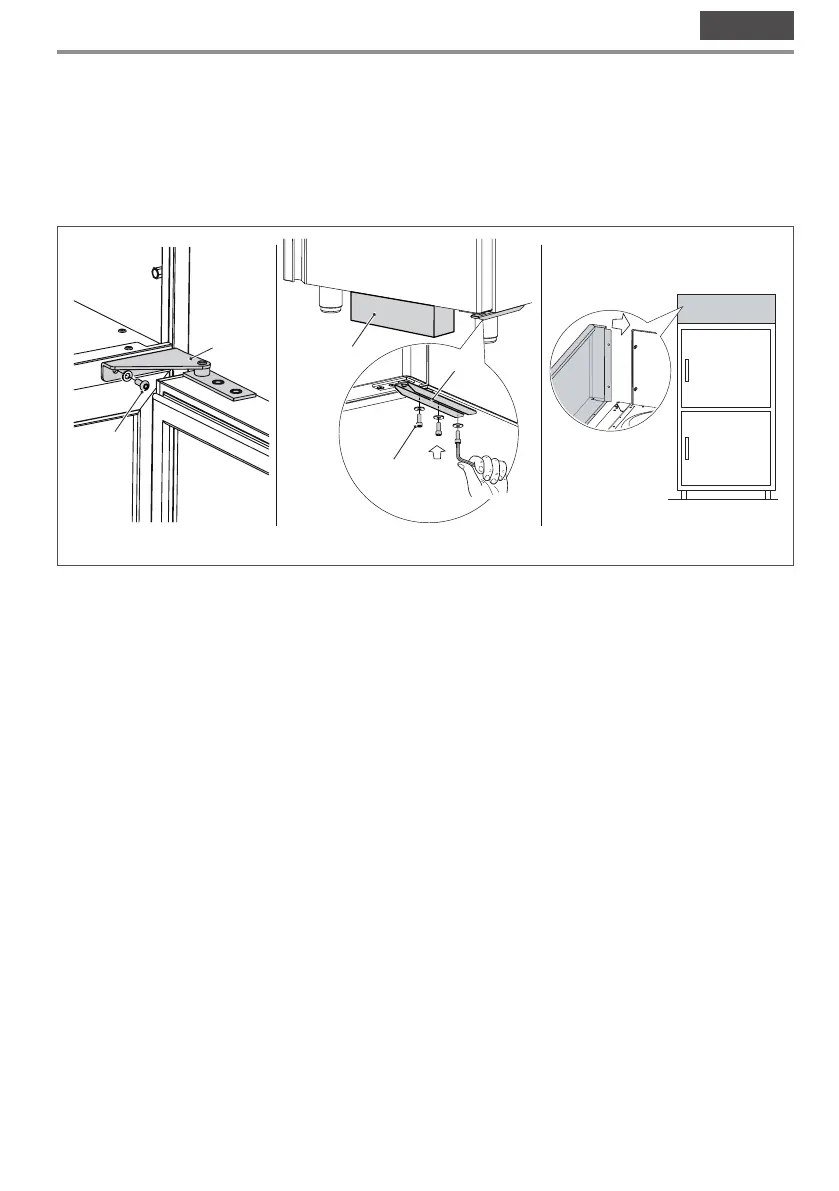

Fig. 19
– check the correct opening and closing of the doors, making sure that, when closed, the sealing gasket correctly
adheres to the surfaces of the appliance;
– also check that the doors stay open if opened more than 90° and that the return spring closes it when the opening
angle is less than 90°.
