Programme selector PCD
1003090-EI-2.0 Issued 2006-12-21 17
Manual operation “Cleaning position” 07
The door rotates forward as long as the + key is hold down and backwards as long
as the - key is hold down.
Note: During manual operation safety devices are disconnected.
7.4 Real time operation
Programming of real time operation must be done by Besam service engineer. Fill
in form on page 34.
The CDC-system has three different day schedules. Each day schedule may con-
tain up to 10 different operation modes. The week schedule informs the system of
which day schedule to run and in what order during a week. It is possible to make
up to 16 exceptions from this week schedule for e.g. public holidays etc.

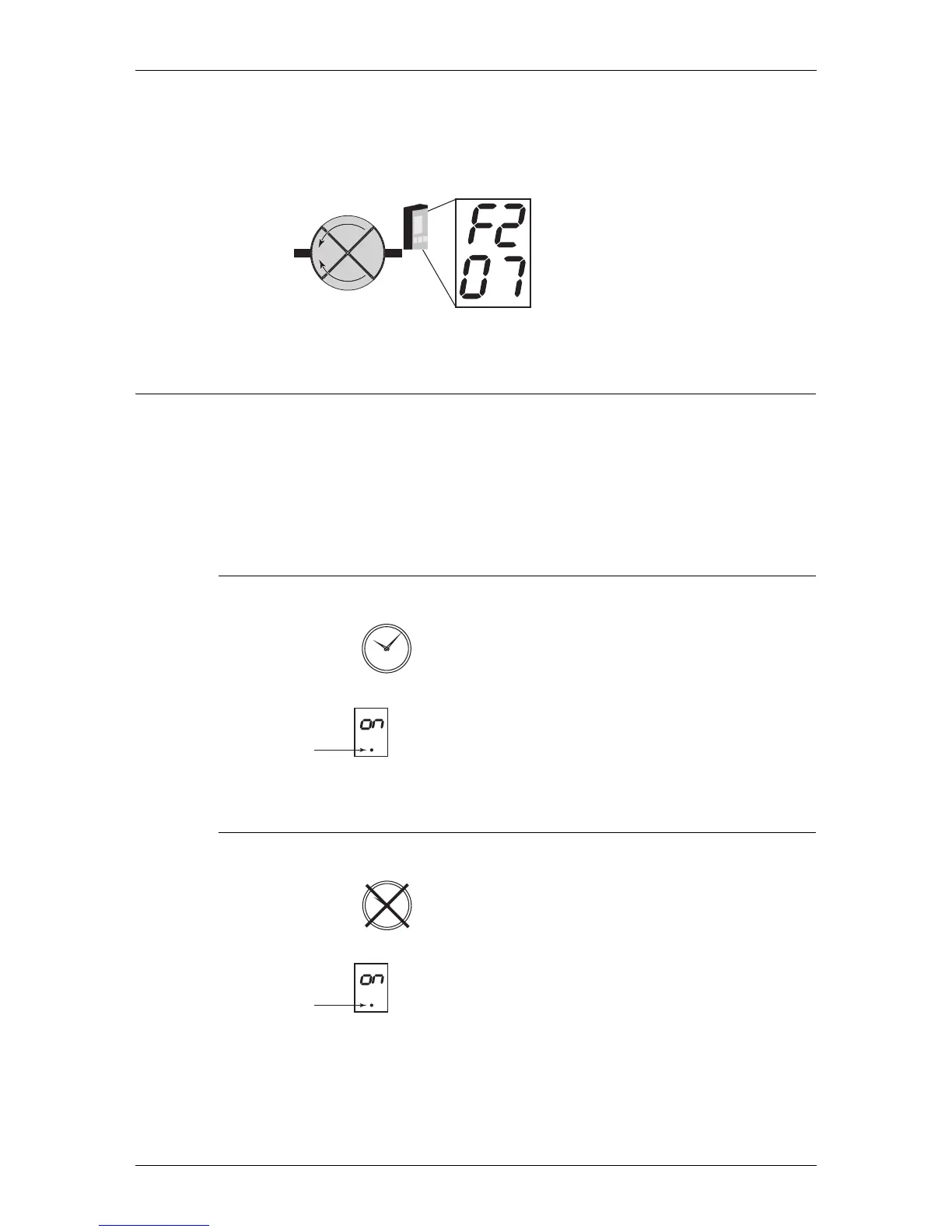

7.4.1 Activation
1. Type F556 (Real time operation ON).
2. Prompt P3 lits up.
3. The door operates according to schedule.
7.4.2 Deactivation
1. Type F557 (Real time operation OFF).
2. Prompt P3 lits down.
3. The door operates according to manually set operation mode.
