Troubleshooting
1003090-EI-2.0 Issued 2006-12-21 31
11.4 Status codes
11.4.1 Diagnostic out-put
It is possible to monitor the system by looking at the red and yellow out-put
LED’s on the control unit CDC.

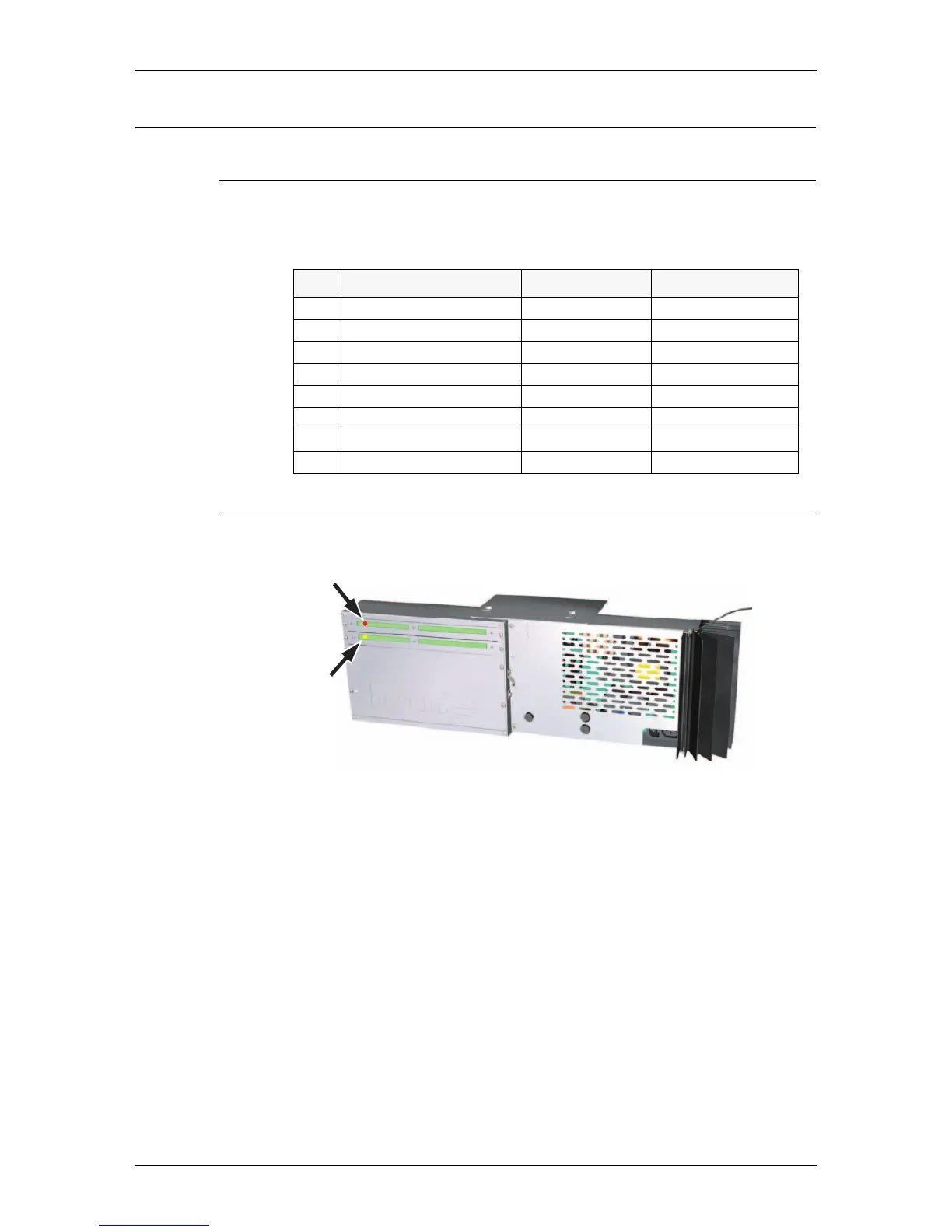

11.4.2 Control unit CDC
Cause I/OA-1 (red LED) I/OA-2 (yellow LED)
10 Safety stop Fixed light
20 Emergency stop Fixed light
30 Blocked door Fixed light Fixed light
21-22 Vertical sensors activated Flashing light
C2 Bok magnet Flashing light
9A Overheat Flashing light Flashing light
11 Electromechanical lock Fixed light Flashing light
06-07 Encoder error Flashing light Fixed light
ILL-00077
I/OA-1
I/OA-2
