MAINTENANCE AND CHECKS
CLUTCH PUMP OILCLUTCH PUMP OIL
CLUTCH PUMP OILCLUTCH PUMP OIL
CLUTCH PUMP OIL

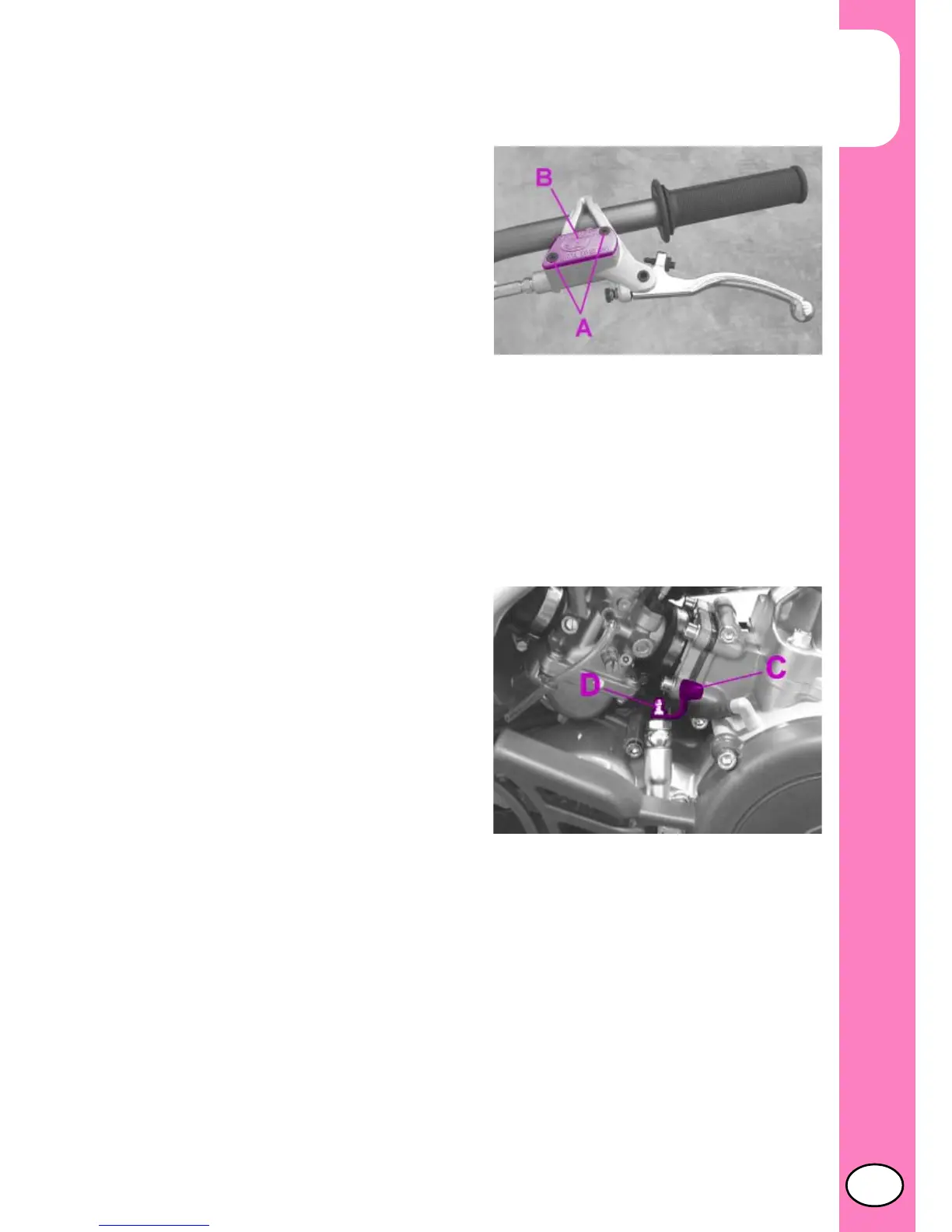

Check the oil level. The oil level must never
be below half the tank capacity.
To restore the oil level, top up by unscrewing
the two screws
AA
AA
A, lifting cop
BB
BB
B and adding
oil.
Note:Note:
Note:Note:
Note:
For oiI changes, follow the instructions
given on the chart on pag. 66, using the
Iubricants recommended on pag. 49
Note:Note:
Note:Note:
Note:
Handle the hydraulic oiI very carefully. It
is corrosive, and will irreparably damage
painted or plastic parts of the motorcycle
upon contact.
Bleeding of clutchBleeding of clutch
Bleeding of clutchBleeding of clutch
Bleeding of clutch
To bleed air from the clutch circuit, pro-
ceed as follows:
•Remove the rubber cap
CC
CC
C from valve
D D
D D
D
•Open the oiI sump cap
•Insert one end of a trasparent tube into
valve
D D
D D
D and the other end into a con-
tainer
•Pump with the cluth lever 2/3 times and
keep the lever pressed
•Unscrew the valve and let the oil drain
•Close the valve and release the lever
•If air bubbles are still visible in the tube
repeat above operation until obtaining a
continuous outflow of oil with no air bub-
bles
Note:Note:
Note:Note:
Note: During this procedure, continu-
ously top up the clutch pump tank to re-
place the oil that is out flowing
•Remove the tube
•Replace the rubber cap.
