Beta EVO 2T Instruction Manual

63
GB
3
MAINTENANCE AND CHECKS
CARBURETTCARBURETT
CARBURETTCARBURETT
CARBURETT
OROR
OROR
OR
To ensure excellent carburettor perform-
ance, the carburettor must be periodi-
cally and thoroughly cleaned.

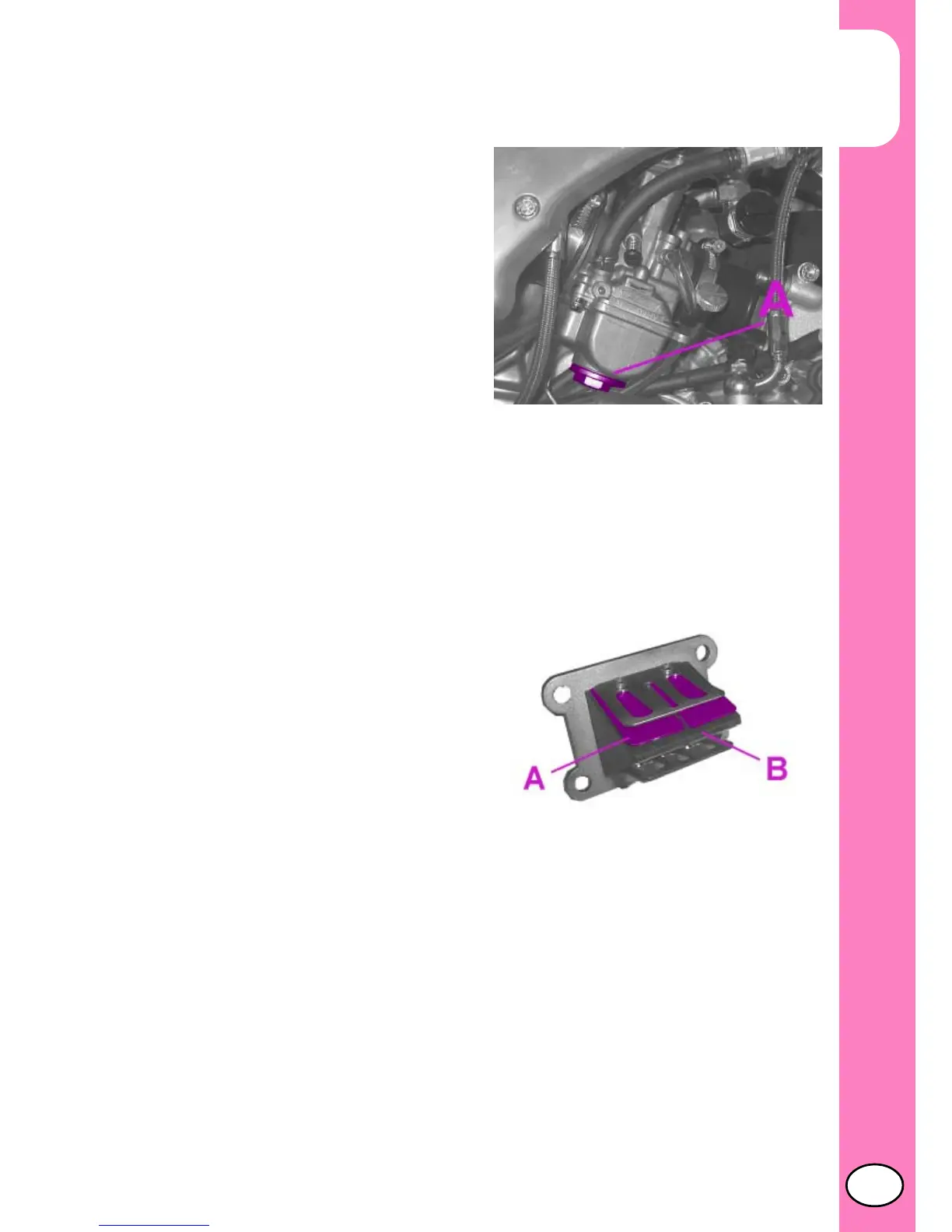

Unscrew plug
AA
AA
A and check that no dirty is
inside.
Differently it will be necessary to open the
tank and to carefully clean the jets.
VV
VV
V
ALAL
ALAL
AL
VE PETVE PET
VE PETVE PET
VE PET
ALSALS
ALSALS
ALS
We recommend to check the valve petals
as follows after every 40 hours of use:
•Check that flaps
AA
AA
A show no signs of
breakage.
•Check that flaps
A A
A A
A close perfectly on
valve body
B.B.
B.B.
B.

Beta EVO 2T Specifications

General

Displacement	249 cc
Cooling System	Liquid cooled
Transmission	6-speed
Bore x Stroke	66.4 mm x 72 mm
Clutch	Wet multi-disc
Dry Weight	67 kg
Engine Type	2-stroke single
Front Suspension	Telescopic fork
Rear Suspension	Monoshock
Front Brake	Single disc
Rear Brake	Single disc
Fuel Capacity	2.5 liters
Frame	Aluminum
