64
MAINTENANCE AND CHECKS
GB
3
REAR SHOCK ABSORBER LEVERAGEREAR SHOCK ABSORBER LEVERAGE
REAR SHOCK ABSORBER LEVERAGEREAR SHOCK ABSORBER LEVERAGE
REAR SHOCK ABSORBER LEVERAGE

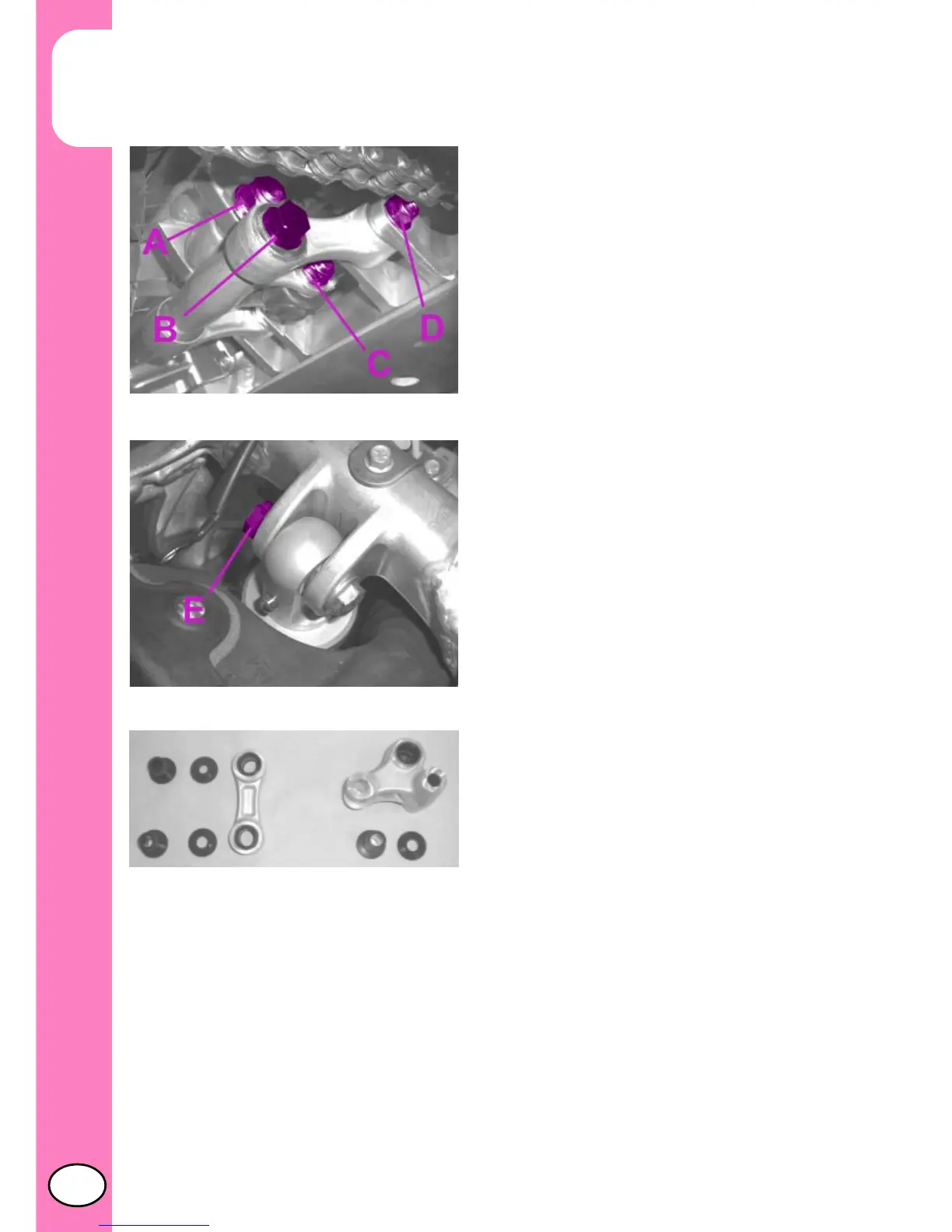

To guarantee an optimal operation and the
longest lifetime of the progressive leverage
of the rear suspension, it is recommended
to check after every race/run the correct
tightening of the bolts marked A, B, C, D
and E.
It is also recommended not to wash the
motorbike with high pressure water jets and
also to perform a check of cages and
bushes every 40 hours of usage. Proceed
as follows:
Disassemble the leverage unscrewing the
screws A, B, C, D.
• Extract the bushes.
• Clean all the parts with a dry cloth.
• Lubricate the cages with lithium grease.
• Reassemble the group starting with fixing
the linking rods to the chassis, using bushes
with internal diameter of 8mm and the spe-
cial M8 screws.
• Fix the rocker arm to the swing arm us-
ing the bushes with the brim thickness of
2.5mm, and the M10x75. Afterwards fixit
to the damper (screw M10x45).
• Finally assemble the linking rods on the
rocker arm using the remaining bushes and
the M10x125 screw.
Note:Note:
Note:Note:
Note:
The prescribed tightening torques are
4,5Kgm for the screws A, B, C, E and
3,0Kgm for the screw D.
