MAINTENANCE AND CHECKS
GB
3
FORK OILFORK OIL
FORK OILFORK OIL
FORK OIL
Right shaftRight shaft
Right shaftRight shaft
Right shaft

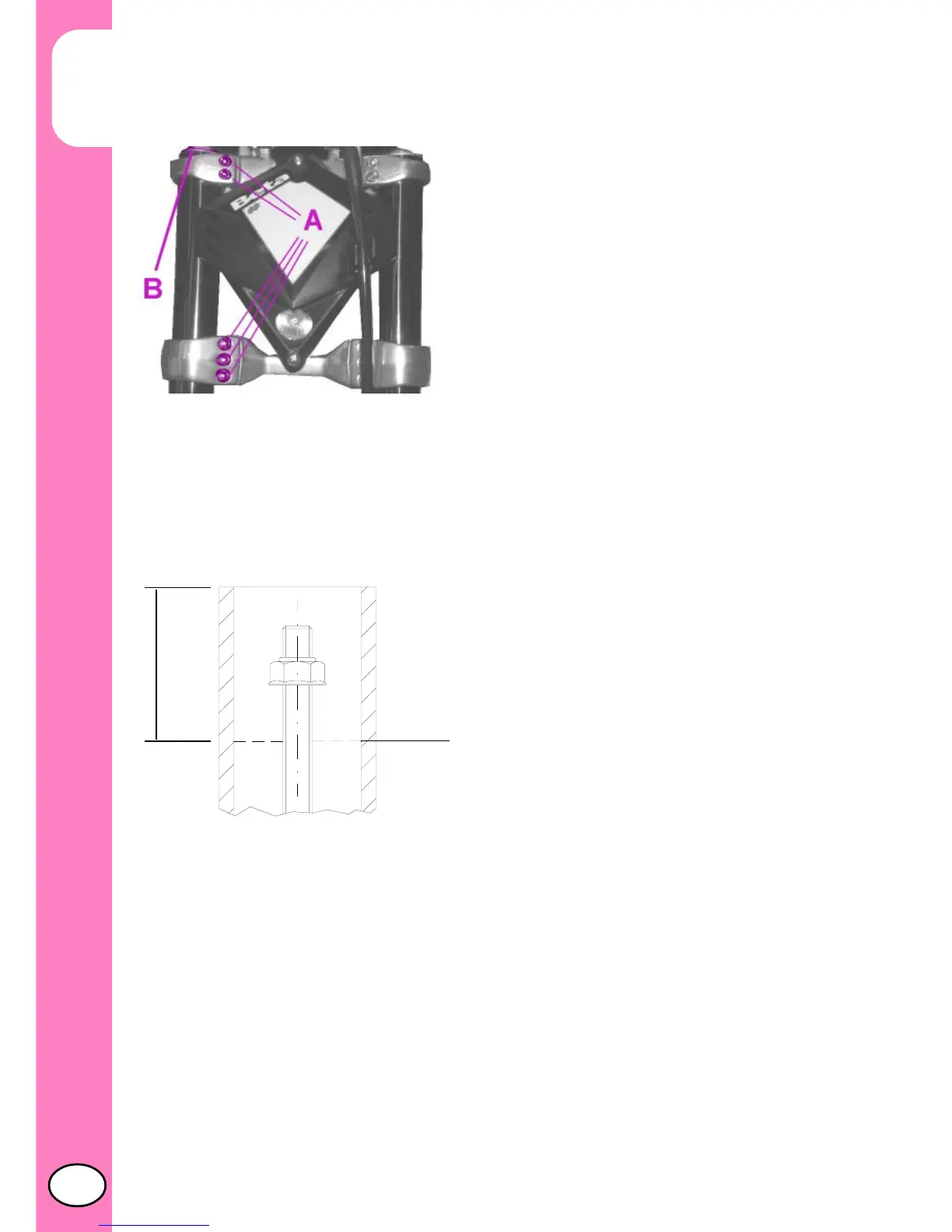

To replace the oil, proceed as follows:
1) Remove the front wheel
2) Remove the handlebar (see pag.69)
3) Loosen left shaft lock screws
A A
A A
A and
take off the slider
4) Unscrew upper plug
BB
BB
B
5) Unscrew fixing lock nut and take off
the plug
6) Unscrew the fixing screw of the
cartridge positioned under the slider,
and extract the cartridge
7) Empty the fork leg and the cartridge,
draining all the oil inside
8) Reassemble the cartridge on the slider
tightening the fixing screw, then refill
oil (OJ01) in the cartridge up to the
level indicated in the figure (with fork
in the fully compressed position)
9) Reassemble the plug on the rod, tighten
the lock nut and, extending the fork
leg, screw the plug on the shaft
10) Reassemble the fork
60 mm
Oil
level
Note:Note:
Note:Note:
Note:
For screw A: torque wrench setting
7,8 : 9,1 Nm.

Beta EVO 2T Specifications

General

Displacement	249 cc
Cooling System	Liquid cooled
Transmission	6-speed
Bore x Stroke	66.4 mm x 72 mm
Clutch	Wet multi-disc
Dry Weight	67 kg
Engine Type	2-stroke single
Front Suspension	Telescopic fork
Rear Suspension	Monoshock
Front Brake	Single disc
Rear Brake	Single disc
Fuel Capacity	2.5 liters
Frame	Aluminum
