MAINTENANCE AND CHECKS
REAR BRAKEREAR BRAKE
REAR BRAKEREAR BRAKE
REAR BRAKE
CheckCheck
CheckCheck
Check

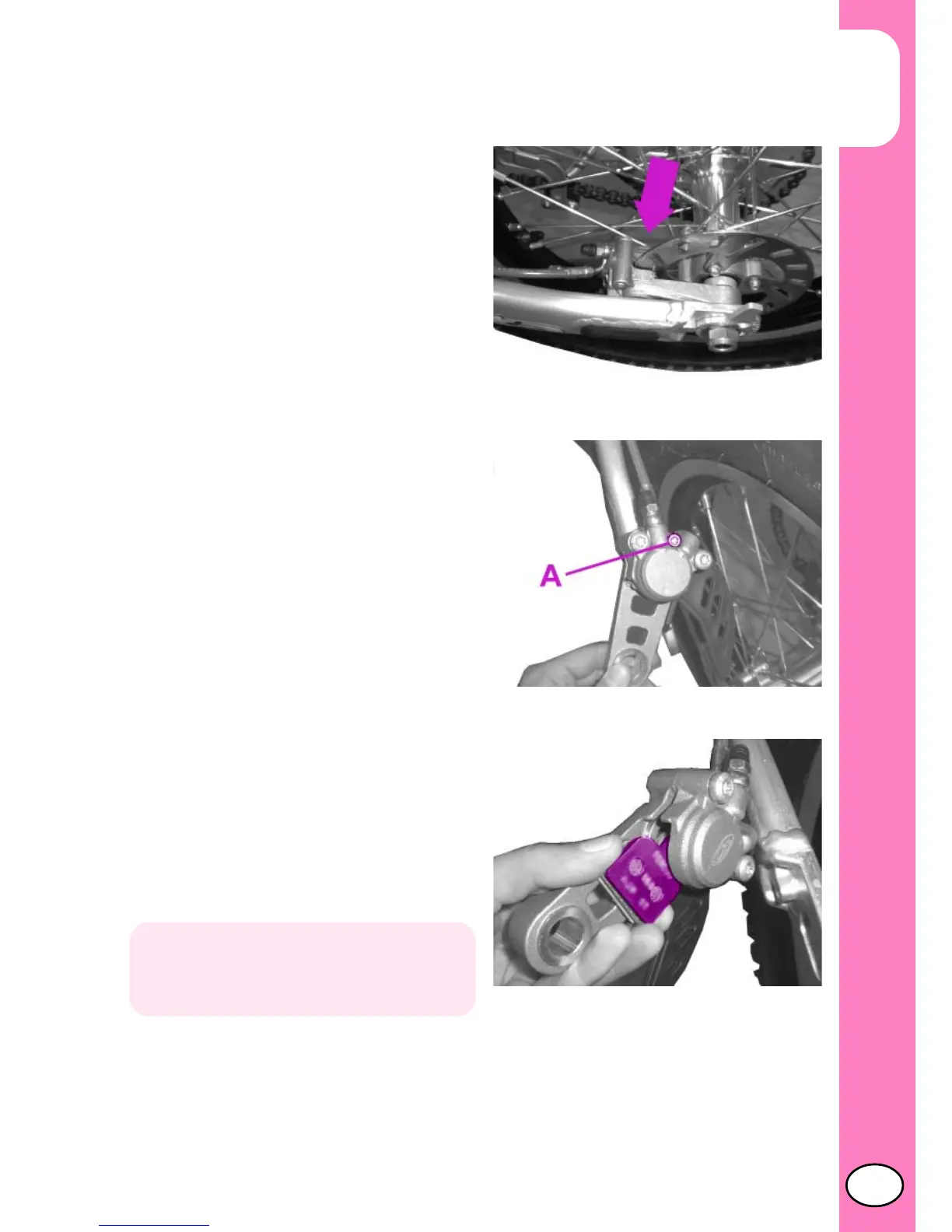

To check the rear brake wear, simply ob-
serve the caliper on the upper part where
it is possible to see the ends of the two pads.
The pads should have at least a 2 mm Iayer
of Iining. if this Iayer is thinner than 2 mm,
replace the pads immediately.
Note: Note:
Note: Note:
Note: Observe the times given on the
chart on pag. 66 when performing the
check.
ReplacementReplacement
ReplacementReplacement
Replacement
To replace the pads, proceed as follows:
•Disassemble the rear wheel
•Remove the caliper from the swing arm
•Unscrew the screw
AA
AA
A
•Take off the pads and replace them
•To reassemble, proceed in the reverse
order. Apply medium thread-locking
(frenafiletti medio) to the screw
AA
AA
A.
If the brake disk is removed, ap-If the brake disk is removed, ap-
If the brake disk is removed, ap-If the brake disk is removed, ap-
If the brake disk is removed, ap-
ply medium thread-locking to theply medium thread-locking to the
ply medium thread-locking to theply medium thread-locking to the
ply medium thread-locking to the
screws when reassembling.screws when reassembling.
screws when reassembling.screws when reassembling.
screws when reassembling.
