Beta EVO 2T Instruction Manual

57
GB
3
MAINTENANCE AND CHECKS
Left shaftLeft shaft
Left shaftLeft shaft
Left shaft

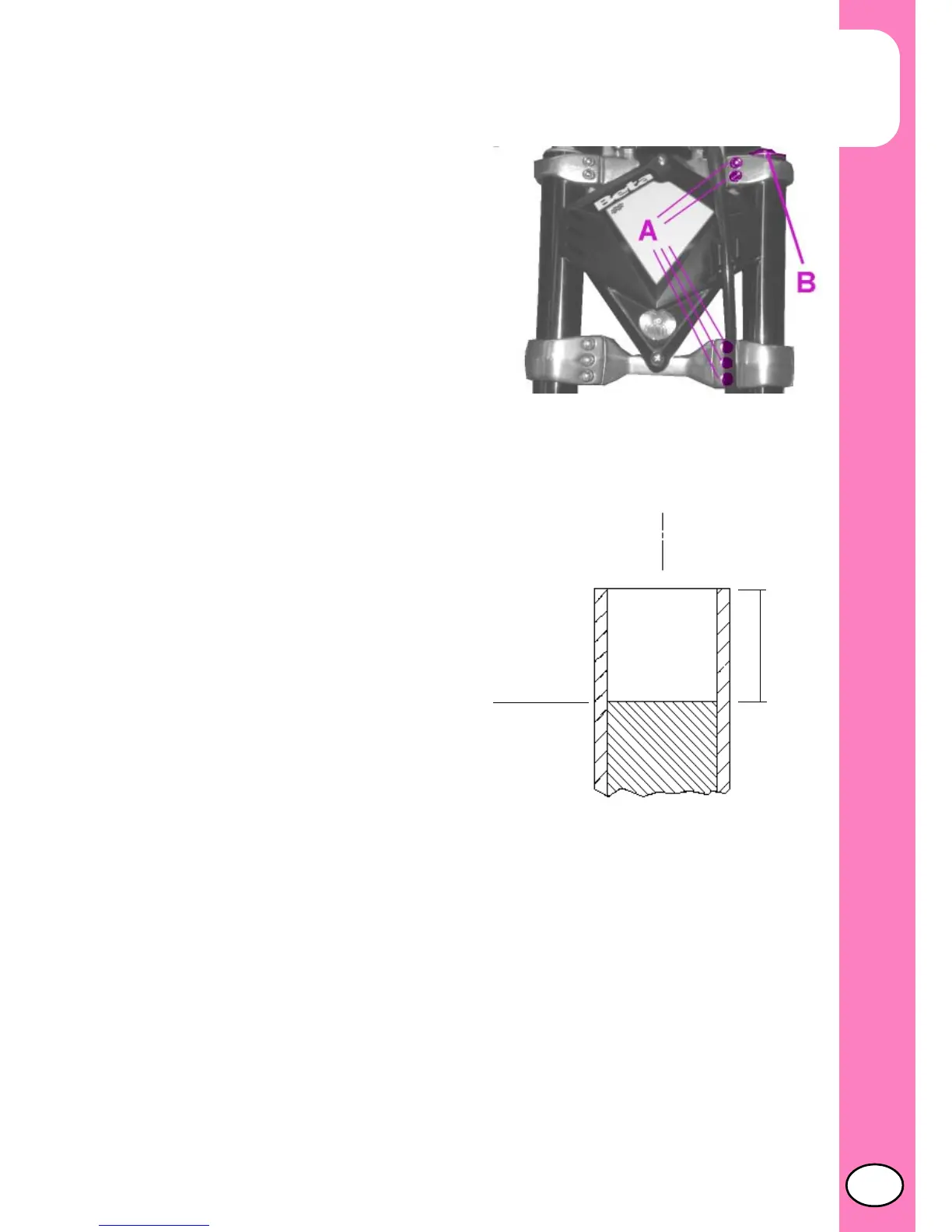

To replace the oil, proceed as follows:
1) Remove the front wheel
2) Remove the handlebar (see pag. 69)
3) Loosen the shaft lock screws
AA
AA
A
4) Unscrew slider plug
BB
BB
B
5) Remove the spring and totally empty
the oil
6) Fill oil up to the level indicated in
figure (with fork compressed in the fully
compressed posistion)
7) Reassemble the spring and extend fork
leg
8) Screw the plug B
Note:Note:
Note:Note:
Note:
For all changes, follow the instructions
given on the chart on pag. 66, using the
Iubricants recommended on pag. 49.
Check regularly and clean thoroughly
removing any dirt on dust cover and also
check the rubber seal to ensure a good
seal.
Note:Note:
Note:Note:
Note:
For screw A: torque wrench setting
7,8 : 9,1 Nm.
Oil
level
120 mm

Beta EVO 2T Specifications

General

Displacement	249 cc
Cooling System	Liquid cooled
Transmission	6-speed
Bore x Stroke	66.4 mm x 72 mm
Clutch	Wet multi-disc
Dry Weight	67 kg
Engine Type	2-stroke single
Front Suspension	Telescopic fork
Rear Suspension	Monoshock
Front Brake	Single disc
Rear Brake	Single disc
Fuel Capacity	2.5 liters
Frame	Aluminum
