ADJUSTMENTS
40
GB

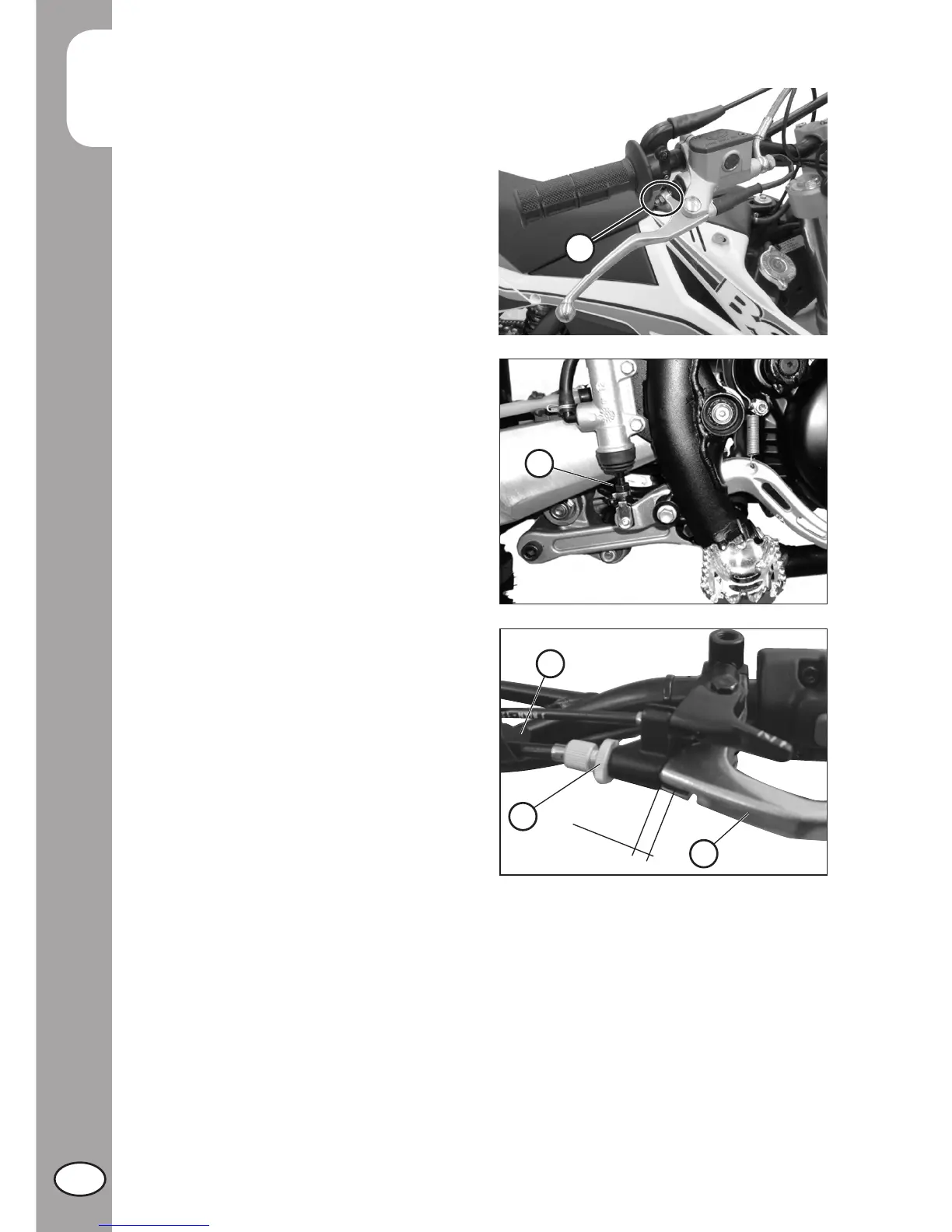

ADJUSTMENT OF CLUTCH LEVER
Adjust the lever A by means of the reg-
ister B, lift rubber dust cover C and turn
adjuster B.
The lever must have 5 mm of idle stroke.
ADJUSTMENT OF BRAKES
Front brake
The front brake is disk type with hydraulic
control, and therefore requires no adjust-
ment.
You can adjust lever height by means of
the register A.
Rear brake
The rear brake is disk type with hydraulic
control. You may adjust pedal height by
means of register B.
A
B
5 mm
B
A
C
