ADJUSTMENT OF REAR SHOCK AB-
SORBER (ENDURO)

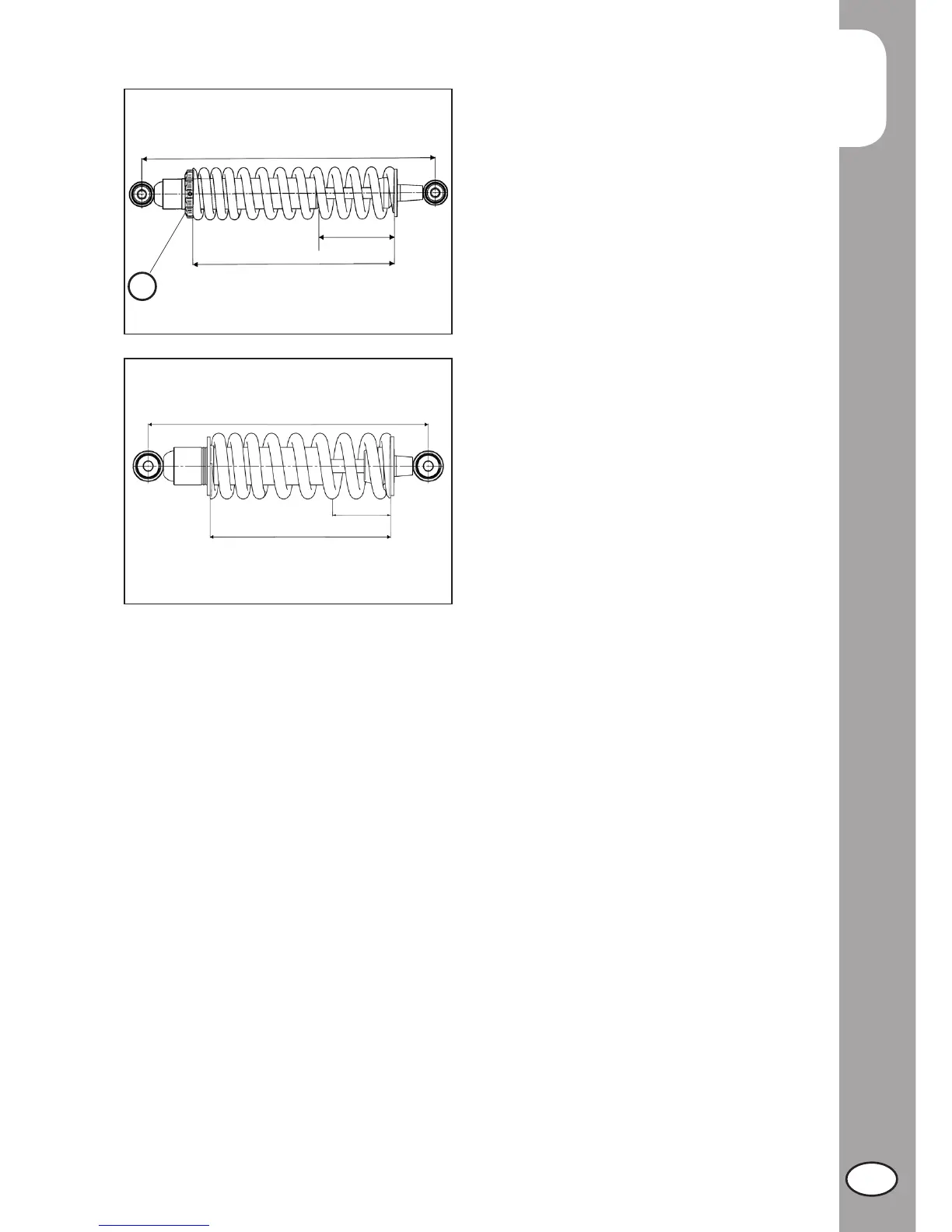

Adjustment of spring load
Use ring nut (A) to adjust the damping ac-
tion of the shock absorber. The damping
action is adjusted by changing the stand-
ard 260 mm spring preload. Adjusting
range: 295 mm to 289 mm. see figure.
ADJUSTING THE REAR SHOCK ABSORB-
ER ON THE (ENDURO FACTORY)
The rear shock absorber on the FACTORY
version is equipped with external adjusters
which allow the vehicle geometry to be
adapted to different load conditions.
Adjuster (B), located near the lower shock
absorber mount, is used to adjust the
hydraulic damping during the rebound
(return) phase.
Knob (C), located on the expansion tank
of the shock absorber, adjusts the hydraulic
damping during the compression phase.
Turning knobs (B) and (C) clockwise in-
creases the damping action; conversely,
turning them anticlockwise decreases it.
WARNING:
The shock absorber contains high-pressure
gas. To prevent serious damage, it should
be removed and disassembled only by
skilled personnel.
In the event of any malfunction,
contact our authorized customer
service network.
