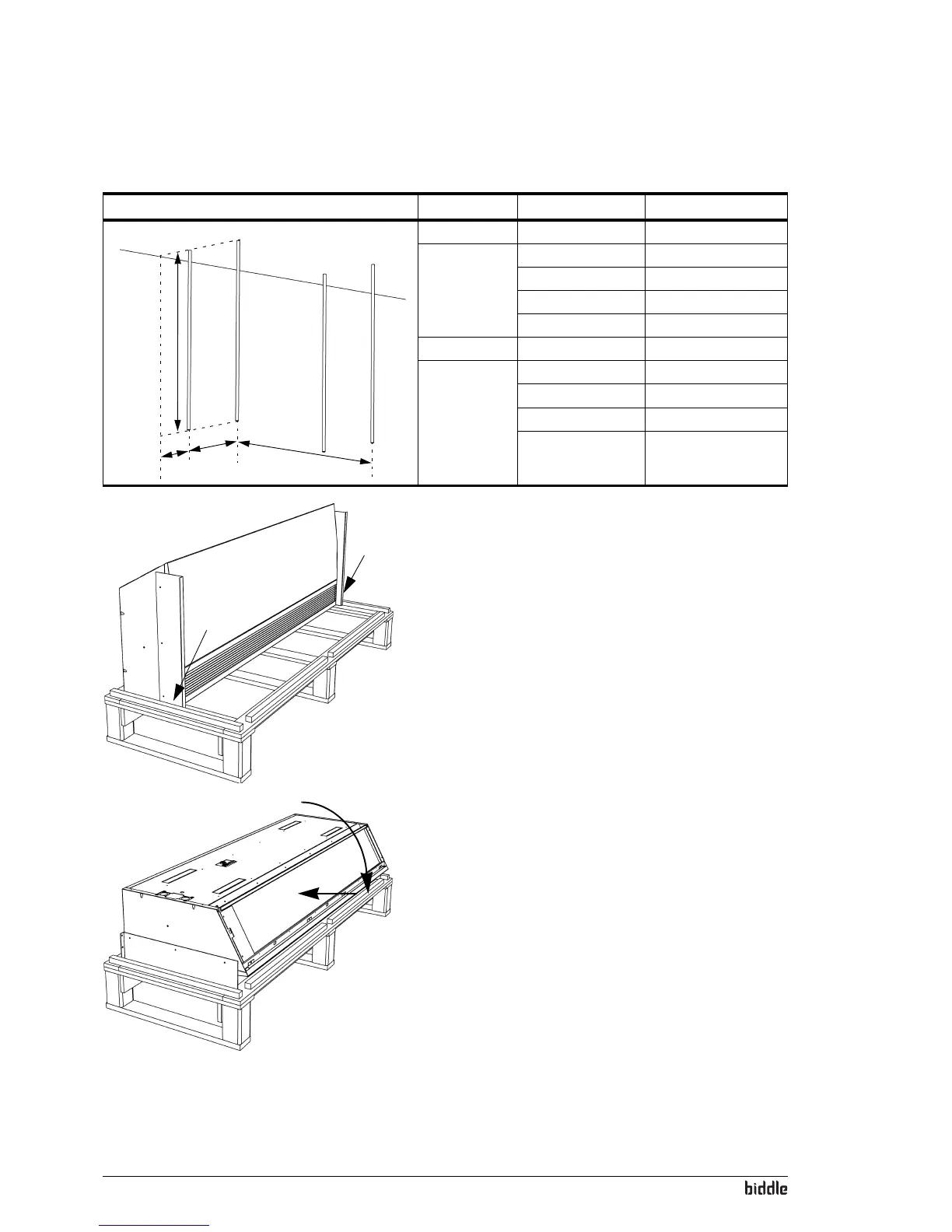

Table 2-1 Dimensions for suspending unit
R
EFERENCE TYPE DIMENSIONS
a
b
c
d
a all models as needed
b CA
2
S 119 mm
CA
2
M 119 mm
CA
2
L 200 mm
CA
2
XL 200 mm
c all models 197 mm
d CA
2
100 500 mm
CA
2
150 1000 mm
CA
2
200 1500 mm
CA
2
250 (six
threaded rods)
2 x 1,000 mm
2
2
1
1
INSTALLATION COMFORT AIR CURTAIN
16
2.4.3 Suspending and securing the unit
1. Remove the components and packaging from the pallet
with the unit on
it. Leave the unit on the pallet.
2. The unit is fixed to the pallet with two transportation
bra
ckets 1. Remove the screws 2. Do not remove the
bra
ckets from the unit.
3. Tilt the unit across the pallet and lay it down as shown
opposite.
4. Lift the pallet, with the unit on it, and hook the unit into
the suspensio
n brackets.
