Biddle CA2 - Page 33

MANUAL INSTALLATION
Version: 6.1 (05-12-2011) 33
Warning:
w If you do not fix the inlet case to the ceiling, the
unit may tip over and fall out of the suspension
brackets.
1
1
2
2
Installing the inlet plenum

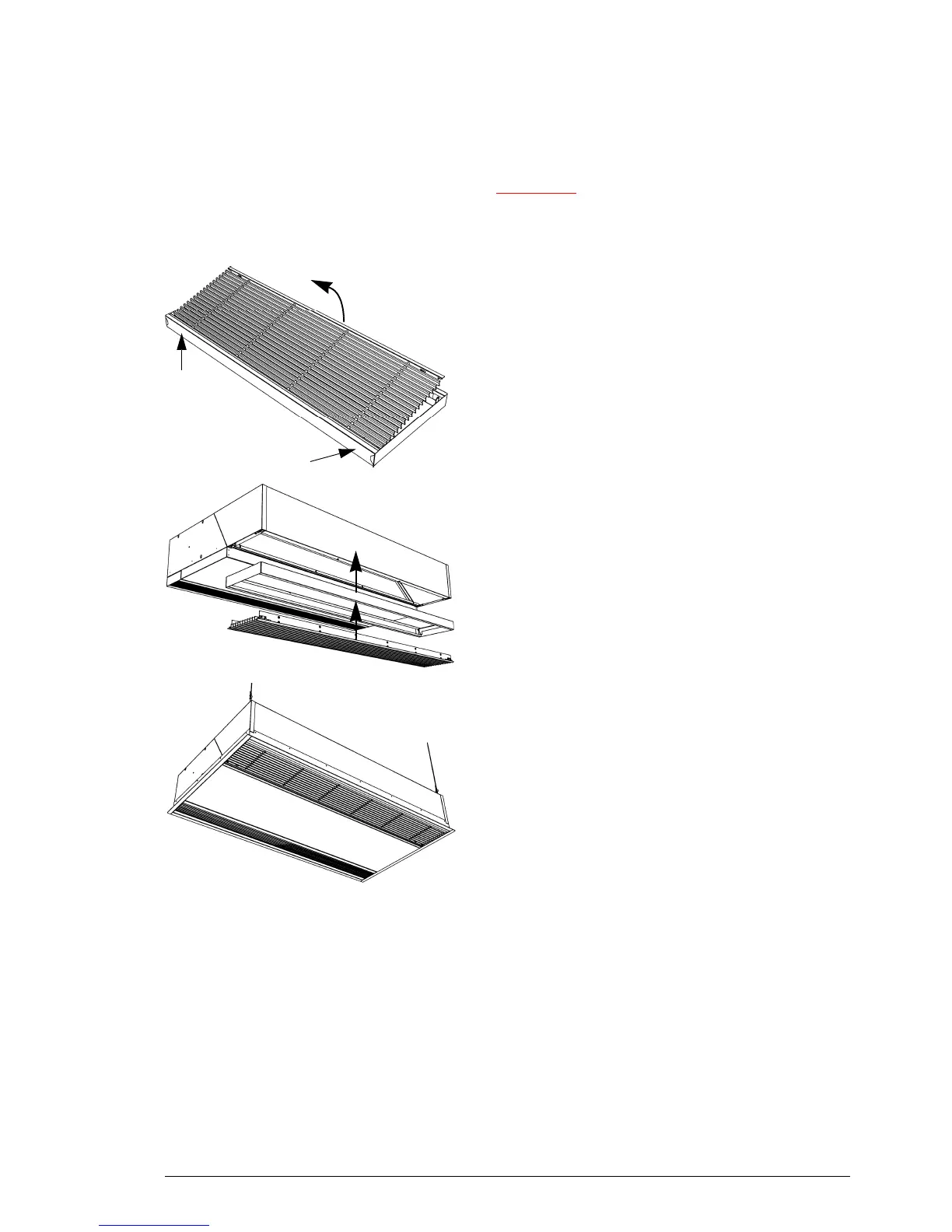

3. Take the inlet grille out of its frame:
- Push the two pins 1 in the grille towards one another
and ti
lt the grille outward.
- Push the two pins at 2 towards one another and take
t
he grille out.
4. Screw the frame onto the inlet case.
5. Put the grille back into its frame.
Finishing
6. Fix the edge finishing strips around the unit.
