INSTALLATION COMFORT AIR CURTAIN
30

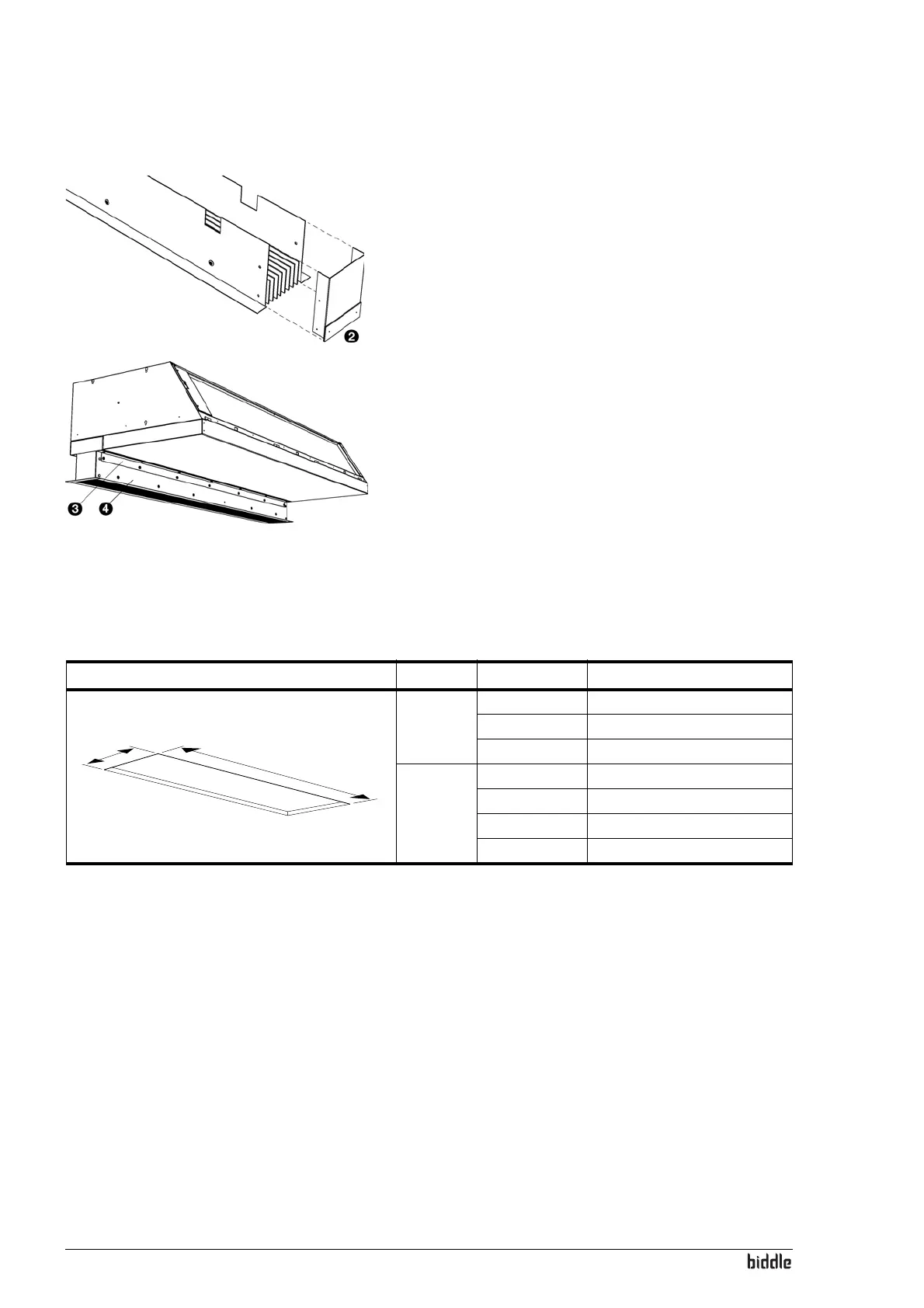

2. Install the end piece without finishing edge 2.
Installing the discharge duct
1. Make a hole in the ceiling for the discharge (for dimen-
sions, see table).
2. Fix the two angle sections 3 with sheet metal screws to
the unit, along
the edges of the discharge opening.
3. Slide the discharge duct 4 into the discharge opening of
the un
it until the desired height is reached.
4. Using sheet metal screws, fix the discharge duct to the
an
gle sections 3.
Discharge section hole dimensions
Installing the grille plenum of the inlet section
1. Make a hole in the false ceiling for the inlet section (see
table).
S
IZE TYPE DIMENSIONS
aCITY S-R102 mm
CITY M-R 102 mm
CITY L-R 133,5 mm
b CITY 100-R 1008 mm
CITY 150-R 1508 mm
CITY 200-R 2008 mm
CITY 250-R 2508 mm
B
C
