CITY MANUAL INSTALLATION
Versie: 5.0 (04-06-2012) 31

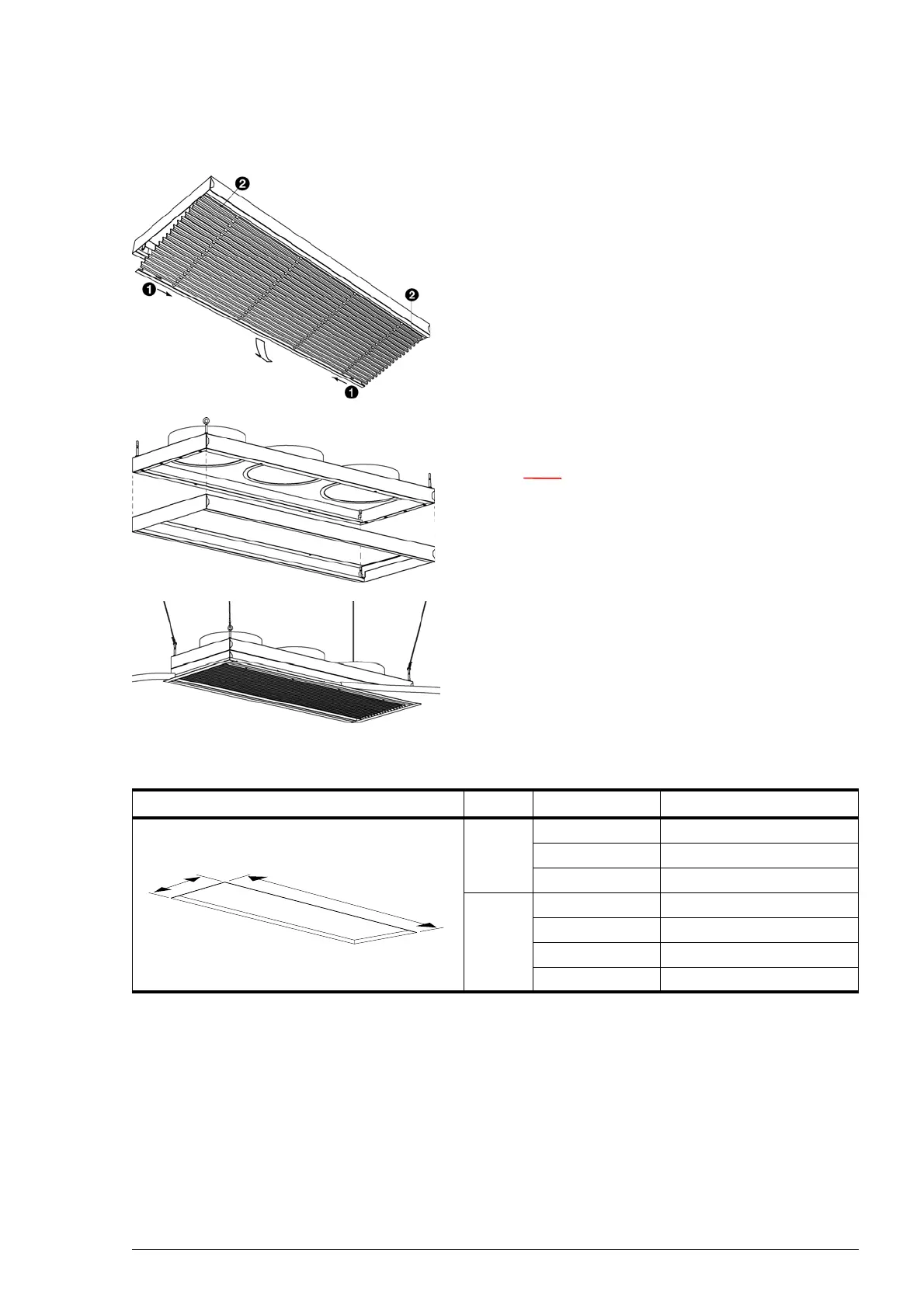

2. Remove the inlet grille from its frame:
- Push the two pins 1 in the grille towards one another
and ti
lt the grille outward.
- Push the two pins at 2 towards one another and take
t
he grille out.
3. Mount the grille plenum in the inlet grille frame.
4. Put the grille back into its frame.
Note:
n The grille plenum may come installed in the inlet
grille on delivery.
5. Fix the edge finishing strips to the frame.
6. Suspend the inlet section. To do so, use the supplied screw
eyes or four threaded rods M6.
Inlet section hole dimensions
S
IZE TYPE DIMENSIONS
a CITY S-R 268 mm
CITY M-R 268 mm
CITY L-R 368 mm
b CITY 100-R 1008 mm
CITY 150-R 1508 mm
CITY 200-R 2008 mm
CITY 250-R 2508 mm
