Installation
Section 2: Installation

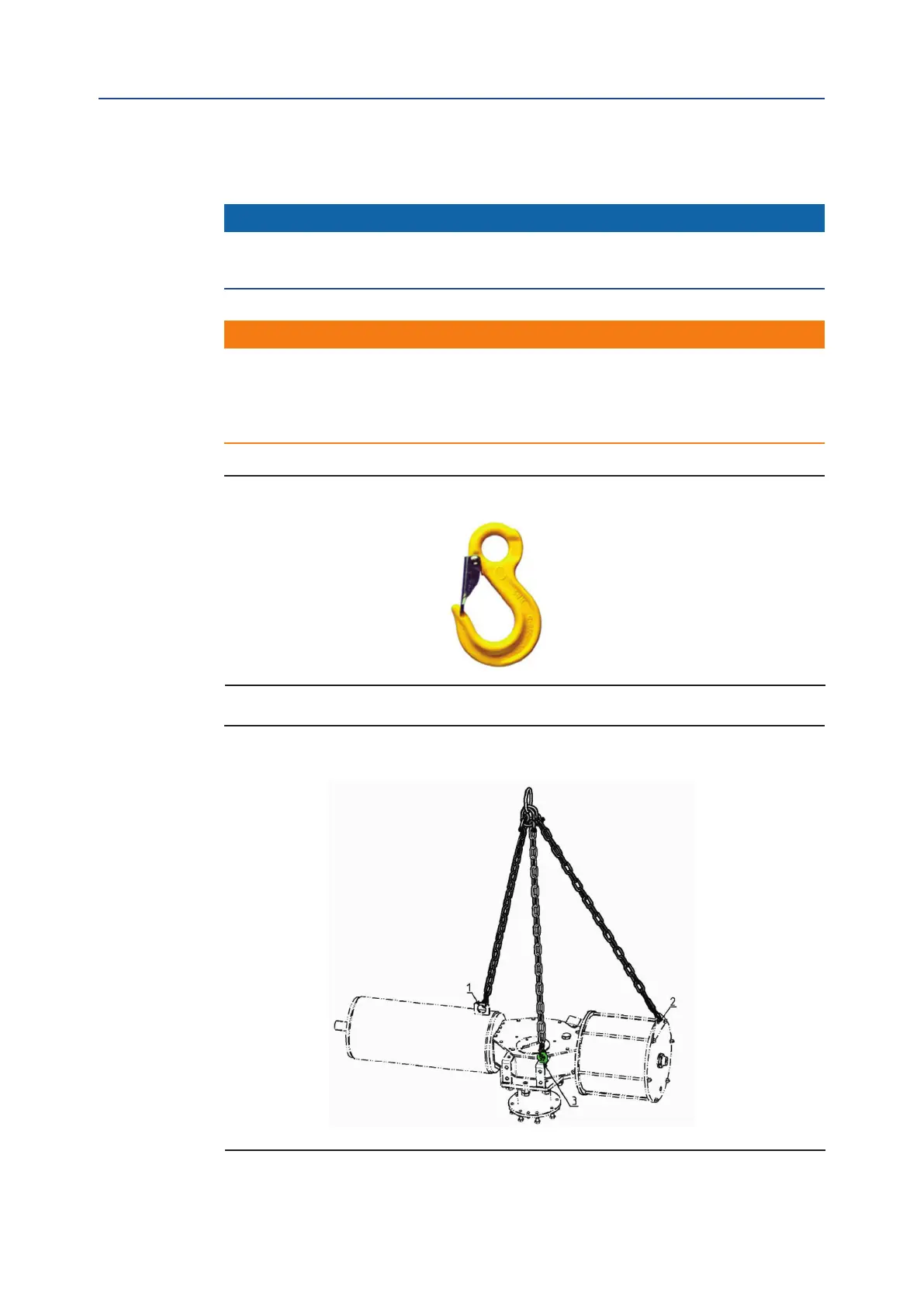

Figure 10 Example of hook with safety latch
Figure 11
2.3.2 Valve Stem with Vertical Axis
NOTICE
The lifting and handling of the actuator must be done by qualied personnel and in
accordance with the laws and regulations in force.
!
WARNING
The actuator must be lifted by means of a suitable lifting apparatus. The weight of the
actuators is indicated in the technical documentation attached to the equipment itself.
For lifting and moving the actuator, use only hooks tted with safety latch, like the one, for
example, shown in follow Figure 10.
Installation, Operation and Maintenance Manual
June 2020
Lifting points: 1-2 (mandatory), 3 (balancing)
