2.3.3 Valve Stem with Horizontal Axis
The actuator can also be lifted to assemble directly onto the valve with stem with
horizontal axis. To make a correct lifting procedure proceed as follow:

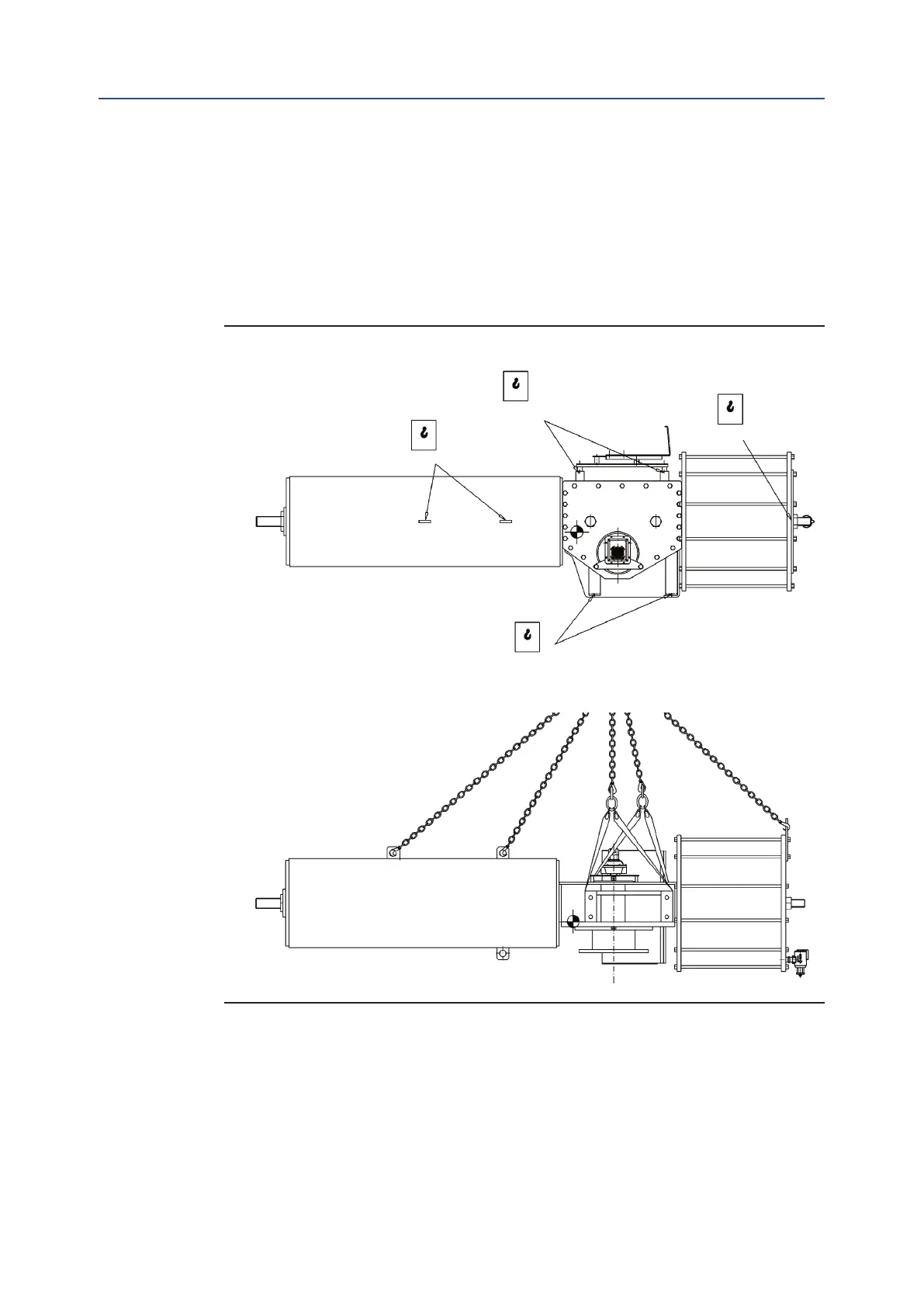

1. Connect properly the actuator lifting points 1 with chains, and connect
by suitable slings the support brackets 2 and 3. See Figure 14.
Figure 14
Lifting eyelets (1)
Support brackets (2)
Lifting eyelets (1)
Support brackets (3)
Installation, Operation and Maintenance Manual
