BigRep STUDIO 6 Interface
65
Control Menu
The Control Menu will stay blocked during the print.
a. Home Options
Note: Homing is only allowed with the door closed. Make sure that
there is no object on the printer before homing
HOME X / HOME Y: Moves extruders to X or Y home position.
HOME ALL: Moves extruder to their X-, Y-, and Z- home position
b. Disable Motors
Allows the user to move the axis manually by hand
c. Extrude/Retract
Select the current nozzle by tapping on Extruder T0 or Extruder T1
Select extrusion length and speed. Use the buttons to extrude or
retract material.
d. Extruder Movement Control
Press the arrows to move the extruder. Select the travel distance
using the numbered buttons under the XYZ-Control.

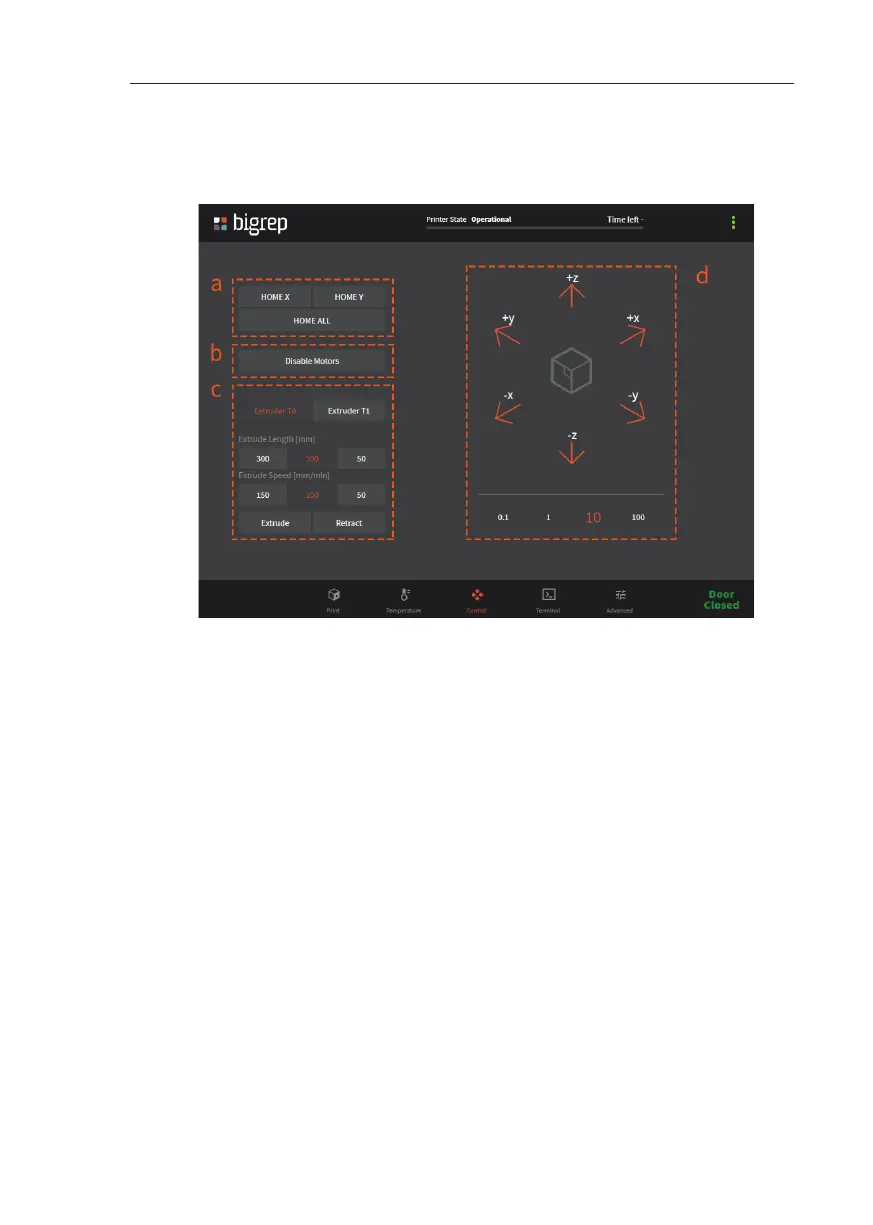

Fig. 6-4: Control Menu
