DSI/CSI Wiring
Proximity Switch Wiring

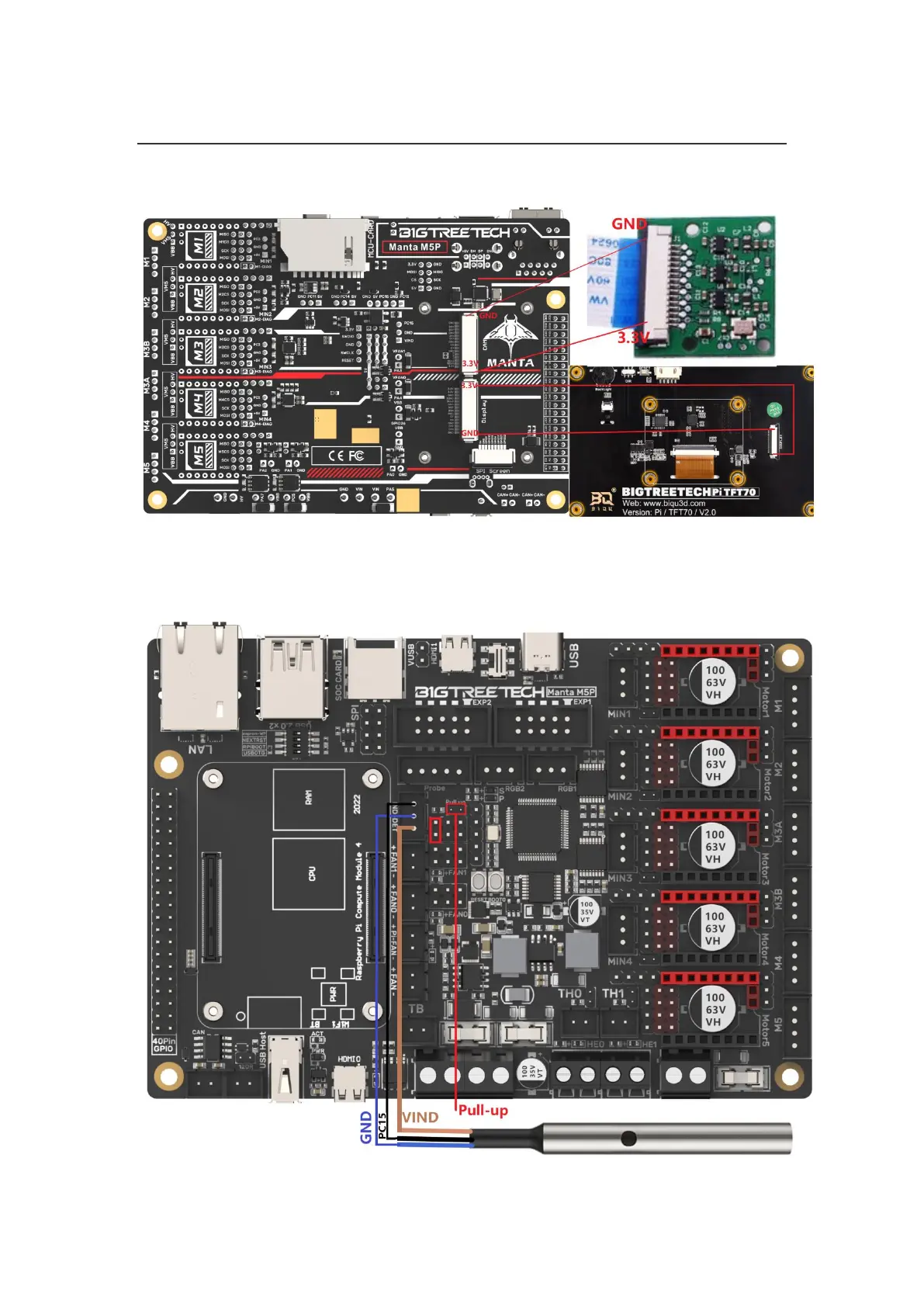

As shown in the figure below, 24V as an example, normally open (NPN type), no
need for shorting through a jumper cap:
