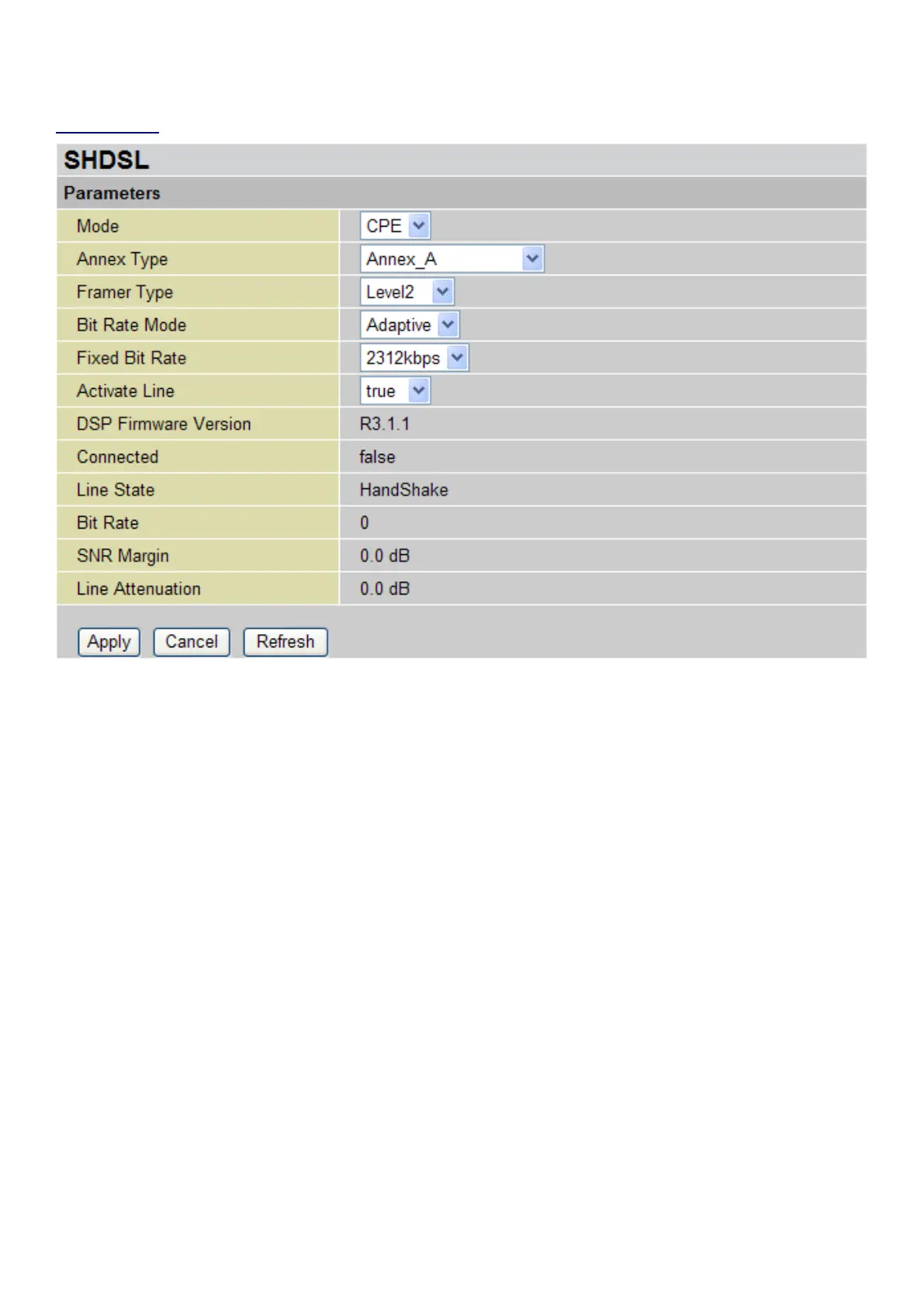

SHDSL
BiPAC 8500
Mode: The SHDSL device can operate as a CPE (Customer Premises Equipment) or CO (Central
Ofce). Select CPE mode when the BiPAC 8500 is connected to your ISP.
Note: Back-to-back feature is a direct connection between two SHDSL devices that one is set
to be CPE and the other CO by using a standard RJ-11 telephone cable.
Annex Type: It is the DSL operating mode standard. Select Annex A or Annex B to support up to
2.3Mpbs SHDSL function.
Note: Make sure that the Annex type is the same for the BiPAC 8500 and the remote router.
Consult with your ISP to set the same annex for the other device.
Framer Type: The mode
Bit Rate Mode: The mode selections are Adaptive and Fixed. Selecting the Adaptive mode, the best
connection rate will be automatically negotiated with the CO / ISP. Selecting the Fixed mode, the
connection rate will be xed to the specic xed bit rate selected with the CO / ISP.
Fixed Bit Rate: Specify the x transfer rate when Fixed Mode is selected. Specify the maximum
transfer rate when Adaptive Mode is selected. Bit Rate range is 72kbps ~ 5704kbps.
Activate Line: Line active true is set by default. Select false to disable and true to enable SHDSL
SHDSL connection
Note: Once Active Line is selected as false, you have to enable the Active Line to true again
and click the Apply button to reactivate SHDSL connection.
DSP Firmware Version: Displays the SHDSL line code rmware version.
Connected: Displays current SHDSL line sync status.
69
