10.1. IR Remote
This section describes the correct button-push sequences to perform regular operations with the IR remote.
The ENTER key must be pressed within 10 seconds of the last command in order to be processed.
Key Function
1 ON Power on the matrix switcher
2 OFF Enter standby mode
3 Number Keys
1-9
Select a number
4 10+ Not used
5 ALL Select all Inputs or Outputs
6 ENTER* Enter to trigger the previous setting
7 OUTPUT Begin Output selection
8 INPUT Begin Input selection
9 OUTPUT OFF Turn off/mute the selected Output
10 STATUS Present EDID or Output status
11 LEARN Learn EDID from one output
12 DEFAULT Begin embedded EDID selection
13 CLEAR Clear the former IR operation
procedure which user just pressed
but has not yet applied by pressing
ENTER

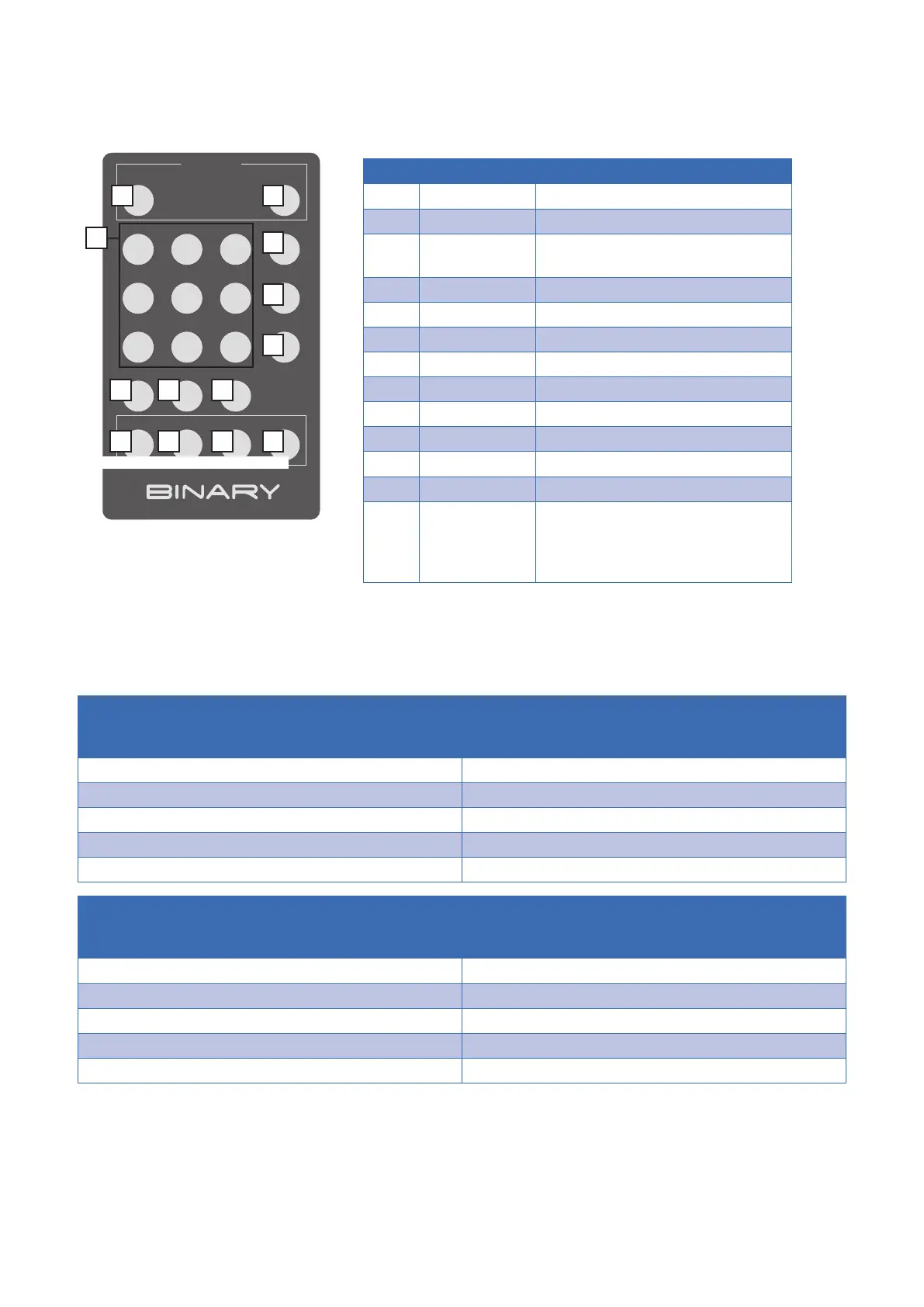

FIGURE 7 : Remote Functions
10.1.1. Route Inputs to Outputs
Input to Single Output
Example: Output=3 Input=4
Display Readout (Example)
1. Press OUTPUT --
2. Press Number Key (1-4) to select Output 3-
3. Press INPUT 3-
4.Press Number Key (1-4) to select Input 34
5. Press ENTER 34
Input to All Outputs
Example: Output=All Input=4
Display Readout (Example)
1. Press OUTPUT --
2. Press ALL to select all Outputs A-
3. Press INPUT A-
4. Press Number Key (1-4) to select Input A4
6. Press ENTER 44
POWER
1
ON OFF
23
OUTPUT
INPUT
OUTPUT
OFF
STATUS LEARNDEFAULTCLEAR
ALL
456
78
10+
ENTER
9
1 2
7
8
9
3
4
11
5
10
6
12 13
B-120-HDMATRIX-4x4
