4. RECOMMENDED FOR INSTALLATION
• Phillips screwdriver (for rack ear attachment)
• Binary high-speed HDMI cables to connect sources to B-120-HDMATRIX-4x4 HDMI inputs
• Control system to control operation of B-120-HDMATRIX-4x4
• Windows PC with Conguration Utility installed and RS-232 adapter
• Conguration Utility Manual
5. DEVICE LAYOUT

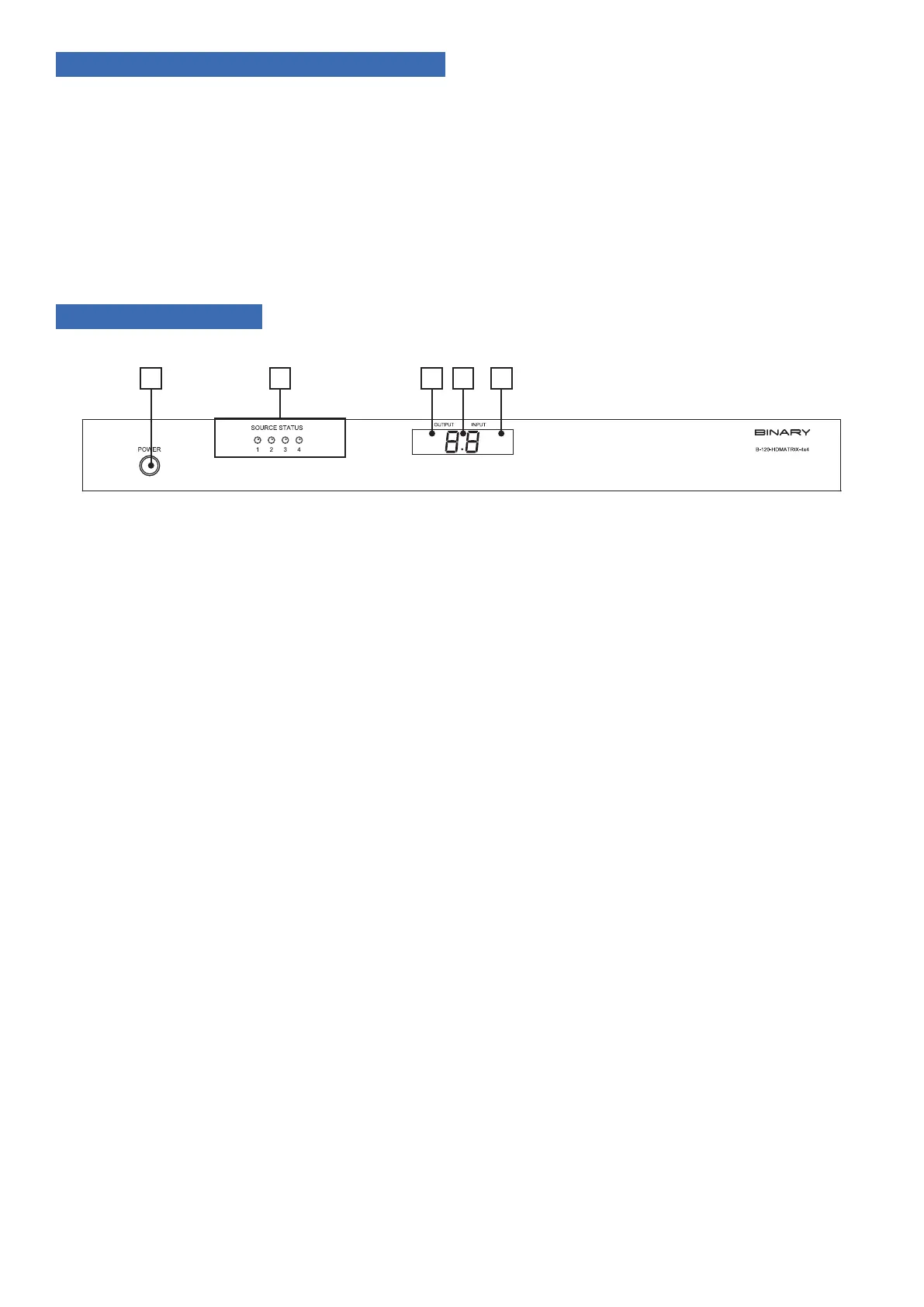

FIGURE 1: B-120-HDMATRIX-4x4 Switcher Layout (Front View)
5.1. Front Panel of the B-120-HDMATRIX-4x4 Switcher
A. Power On/Off Switch
Lights up blue when power is on and lights up red when in stand-by. Can be disabled from conguration utility
software
B. Source Status LEDs
Indicates that the selected source is On and transmitting an HDMI signal
C. Output Display
Displays the last output selected
D. IR Receiver Window
IR receiver for matrix to capture commands sent by IR remote
E. Input Display
Displays the last input selected
