2.5 Unit rear with water connections
The constant climate chamber may be provided with two variants of the humidification module: In these,
the position of the waste water and fresh water connection is different:
• Variant A: Freshwater connection “IN” above the wastewater connection “OUT”.
• Variant B: Wastewater connection “OUT” above the freshwater connection “IN”
Both connections are clearly marked.
(22)
(9)
(12) (11)
Variant A of the connections
(22)
(9)
(11) (12)
Variant B of the connections

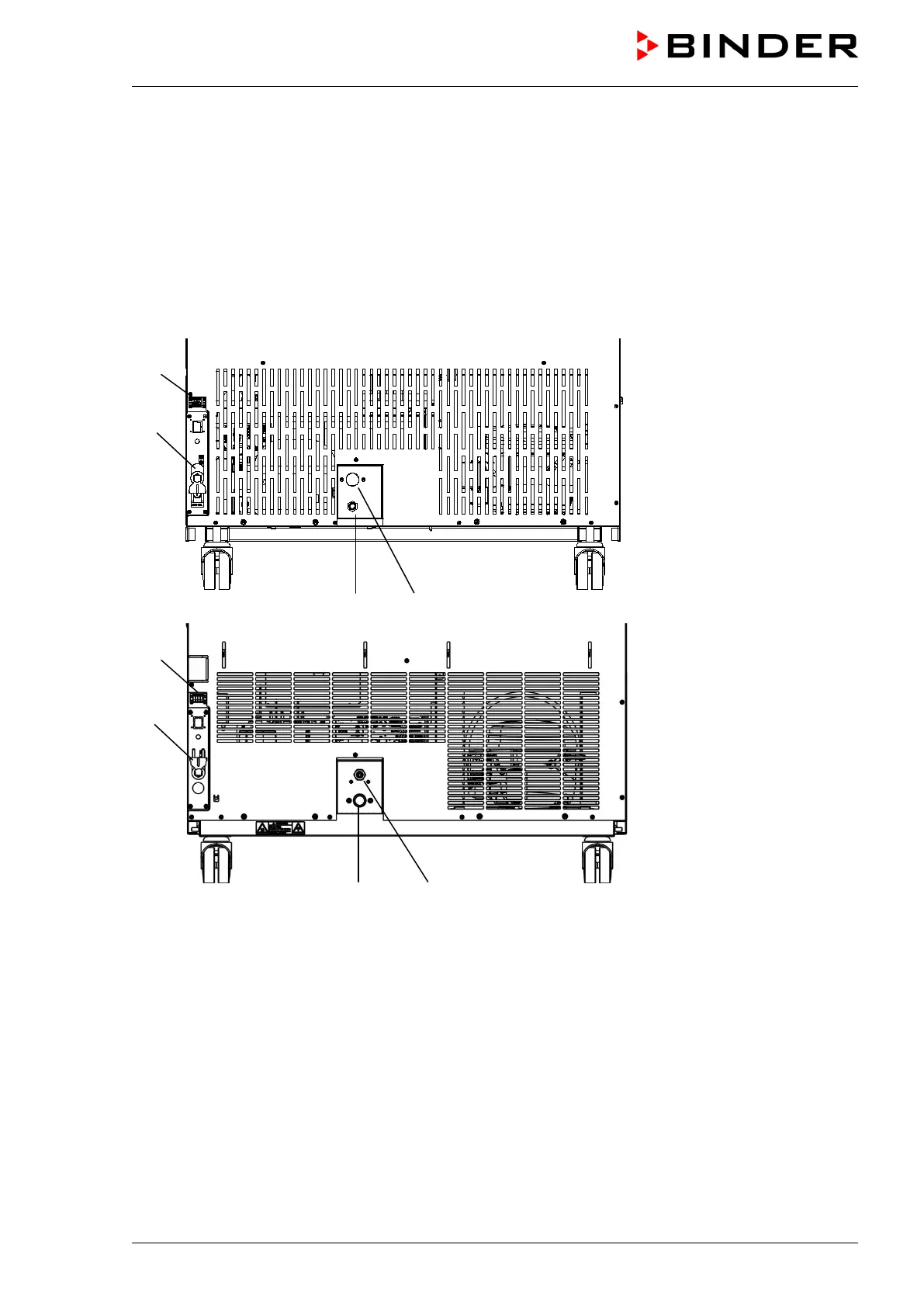

Figure 8: Rear view KMF with water connections
(9) Power cable
(11) Freshwater connection “IN” with screw thread ¾’’ for hose ½“, with union nut
(12) Wastewater connection “OUT” with hose olive for hose ½“
(22) Socket for optional freshwater can (chap. 14.7.1)
