6.2 Function overview of the MB1 program controller displays
The main operation level contains the following dif-
ferent displays:
• Normal display
(Idle Mode or Manual Mode or
Program Mode)
• Event List
• Chart recorder function
• Contact page
Button
VIEW ->
permits toggling between the dis-
plays.
The Normal display enables comparison of the cur-
rent temperature and humidity (W) to the set-point
values (X) or shows the fan working rate.

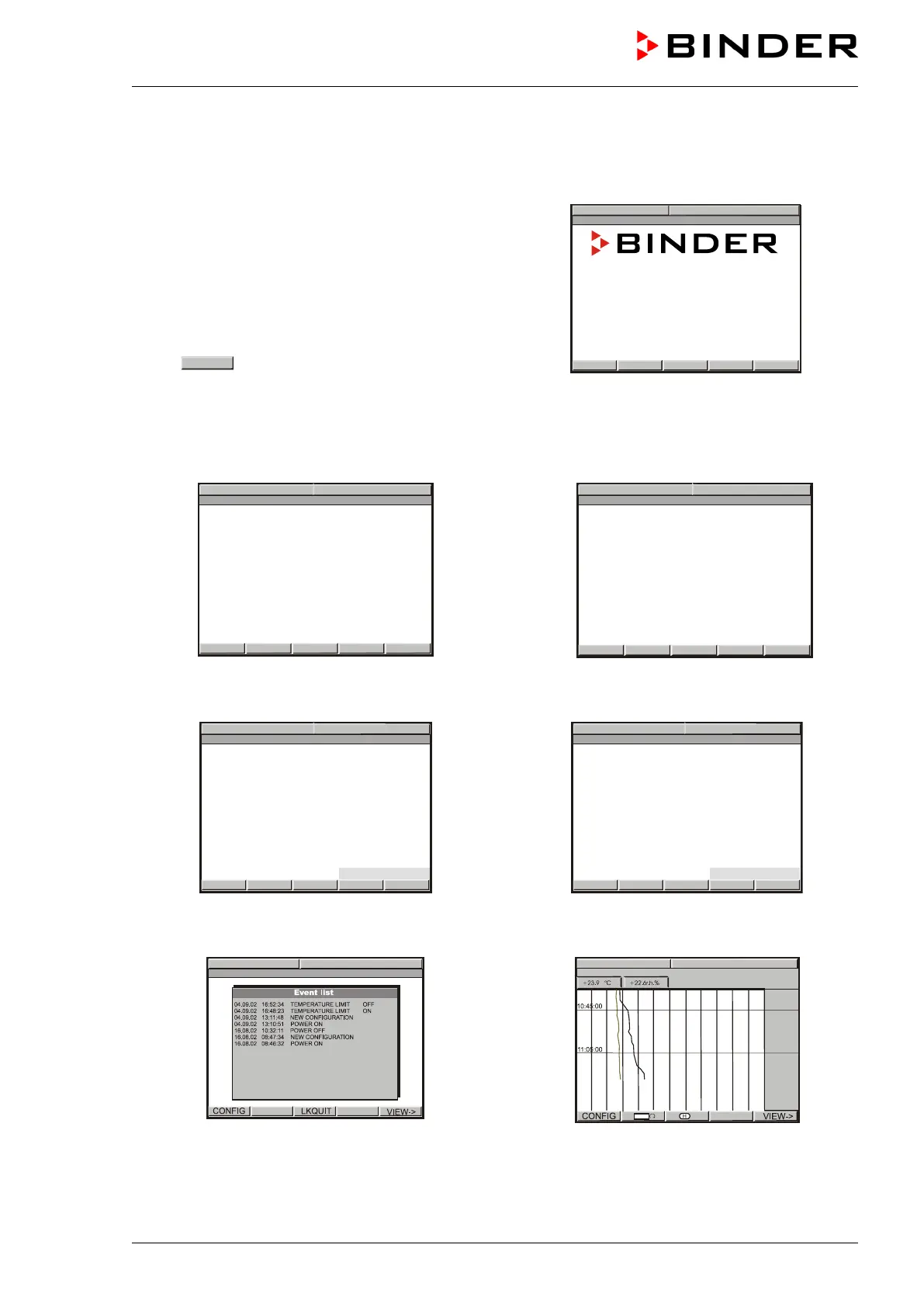

CONTACT PAGE
BINDER Service contact display.
NORMAL DISPLAY Idle Mode
W
X
08:43:55 15.12.13
CONFIG
VIEW->
PGM
TEMP
0.0
26.8
°C
HUMID
0.0
58.6
%rH
HAND
or
W
X
08:43:55 15.12.13
CONFIG
VIEW->
PGM
FAN SPEED
50
%
HAND
X - TEMP
26.8
°C
X - HUMID
58.6
%rH
No heating or refrigeration, no humidification or dehumidification. The actual values (X) approximate am-
bient temperature and humidity. Fan operates at a 50% rate.
NORMAL DISPLAY Manual Mode
W
X
08:43:55 15.12.
13
CONFIG
VIEW->
PGM
TEMP
40.0
36.8
°C
HUMID
65.0
58.6
%rH
HAND
Temperature and humidity values are maintained
according to the previous entered set-points (W).
NORMAL DISPLAY Program Mode
W
X
08:43:55 15.12.
13 PROGRAM 01/SEC1 00:09:59
CONFIG
HAND VIEW->
PGM
TEMP
40
.0
36.8
°C
HUMID
65.0
58.6
%rH
AUTO
A temperature and humidity program entered be-
fore via a program table is run.
EVENT LIST
Overview over the last 16 events or error occurrenc-
es of the unit.
CHART RECORDER FUNCTION
Graphical display of the current temperature and
humidity values and review of the previous meas-
urements on a historical display. A memory interval
of 5s corresponds to a supervision period of 2.5
days
08:43:55 20.10.13
08:43:55 20.10.13
08:43:55 15.12.13
