2.1 Chamber overview

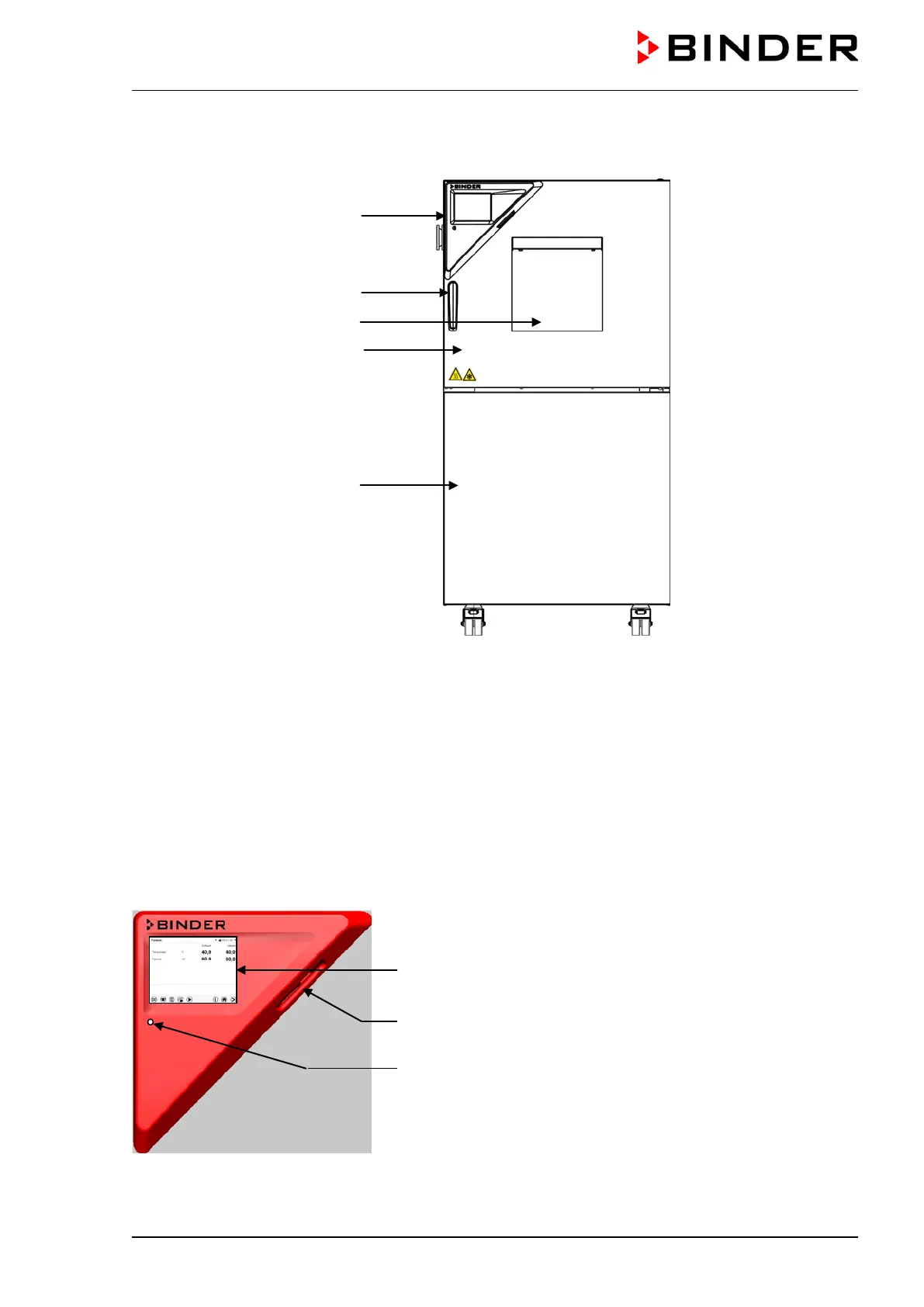

Figure 3: Alternating climate chamber (example: MK 56)
(A) Instrument panel
(B) Door handle
(C) Inspection window
(D) Chamber door
(E) Refrigerating machine, maintenance access flaps
2.2 Instrument panel
5,7" controller display with touchscreen
USB interface
Pilot lamp
Figure 4: Triangle instrument panel with program controller MB2 and USB interface
(A)
(B)
(C)
(D)
(E)
