MK / MKT (E5) 03/2019 page 18/158
2.6 Rear chamber view
(19)
(20)
(16)
(17)

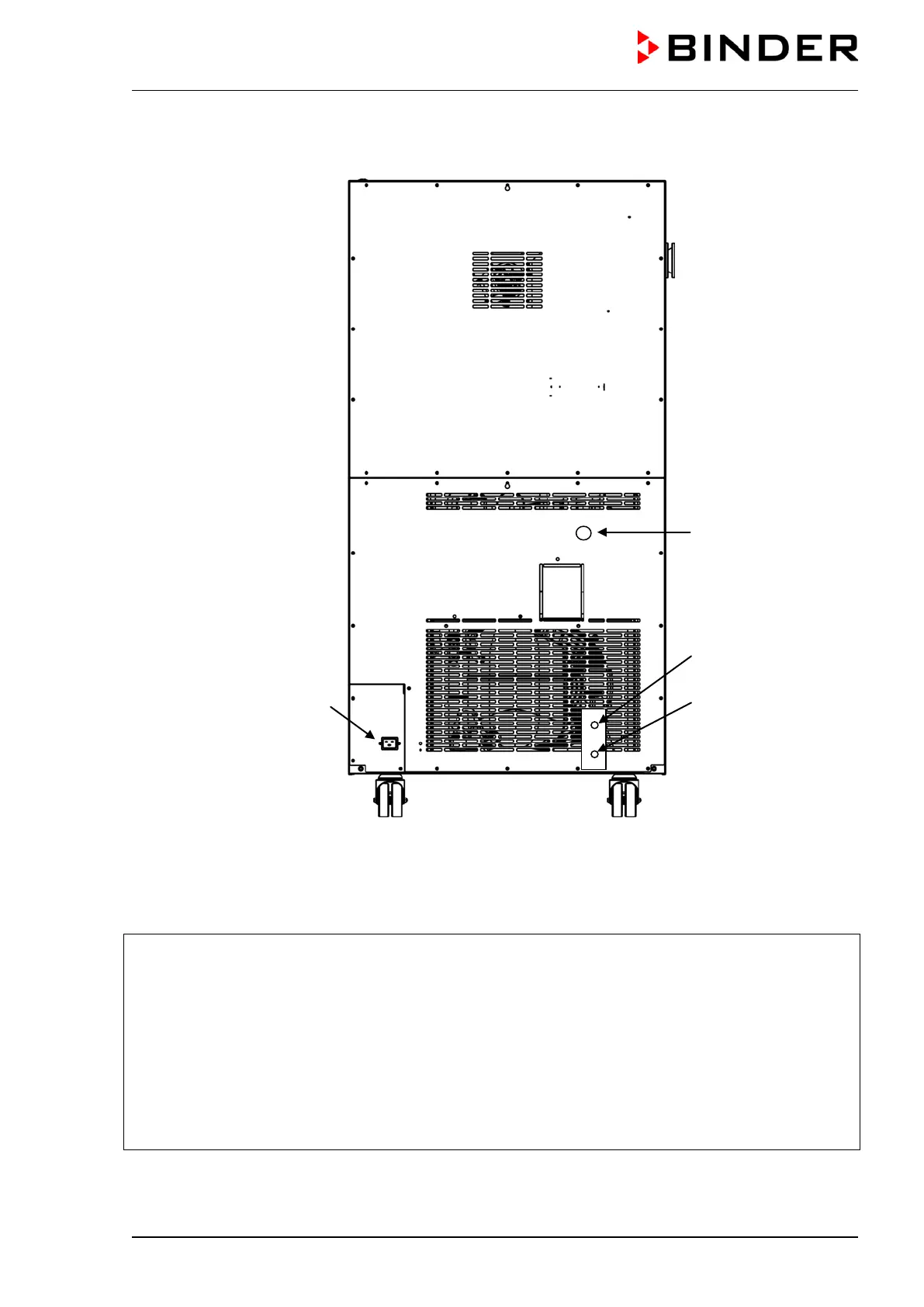

Figure 8: MK 56 rear chamber view with options water cooling and compressed air connection
(12), (13), (14), (15) not used
(16) Connection “OUT” for cooling water outlet with screw thread ¾’’ for hose ½“, with union nut (option
water cooling)
(17) Connection “IN” for cooling water inlet with screw thread ¾’’ for hose ½“, with union nut (option
water cooling)
(18) not used
(19) IEC connector plug
(20) Compressed air connection (option): Coupling connector to connect compressed air or the com-
pressed air dryer (option)
