Manual for VMP300-based instruments
7
1.1.1.1 SP-240/SP-300 slot numbering
It is from the left to right. The slot 1 is the slot the closest to the communication board. The
other slot is dedicated to the booster board or the second potentiostat board.fff

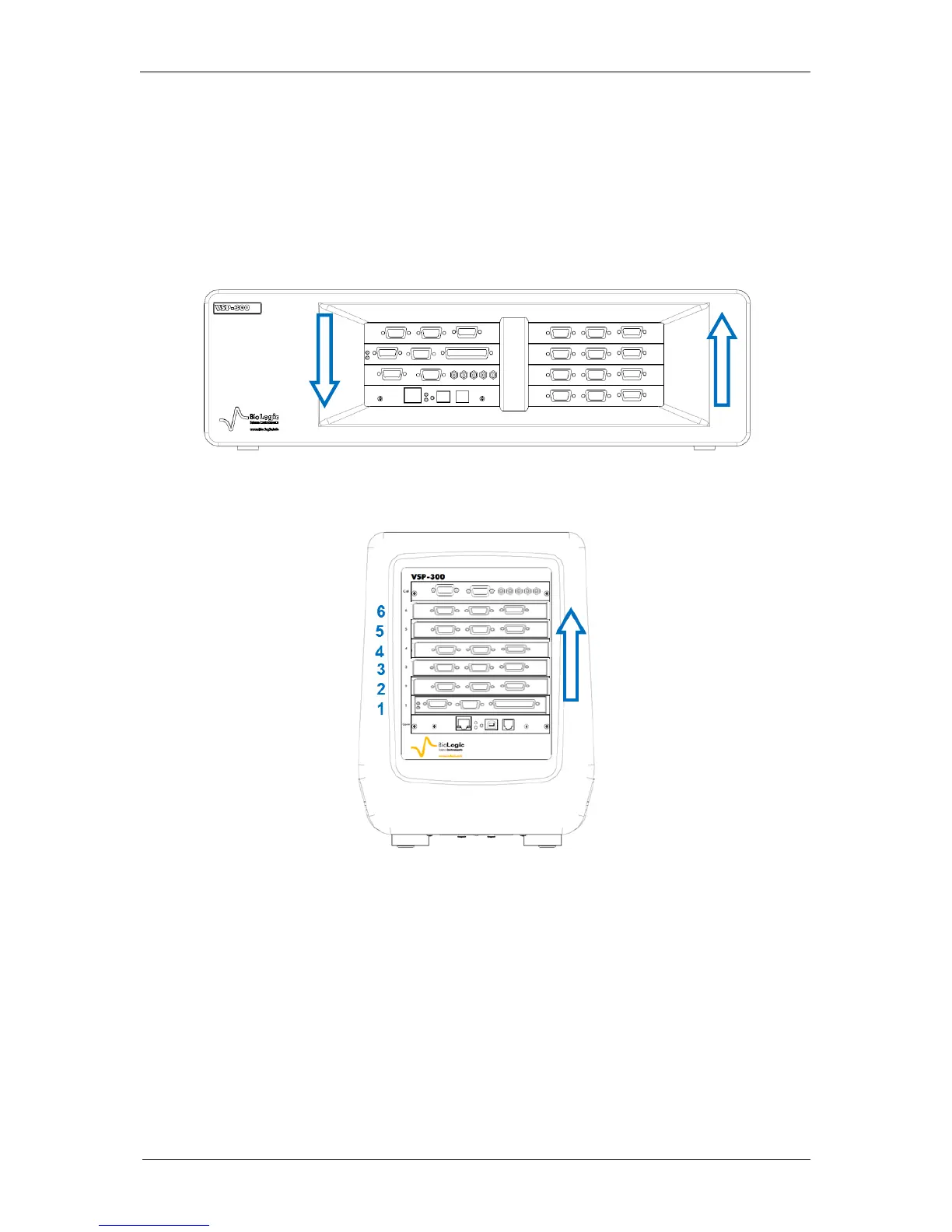

1.1.1.2 VSP-300 slot numbering
1.1.1.3 Horizontal version
Fig. 2: VSP-300 numbering.
1.1.1.4 Vertical version
Fig. 3: Vertical VSP-300 numbering.
5
6
3
2
1
4
