Manual for VMP300-based instruments
85

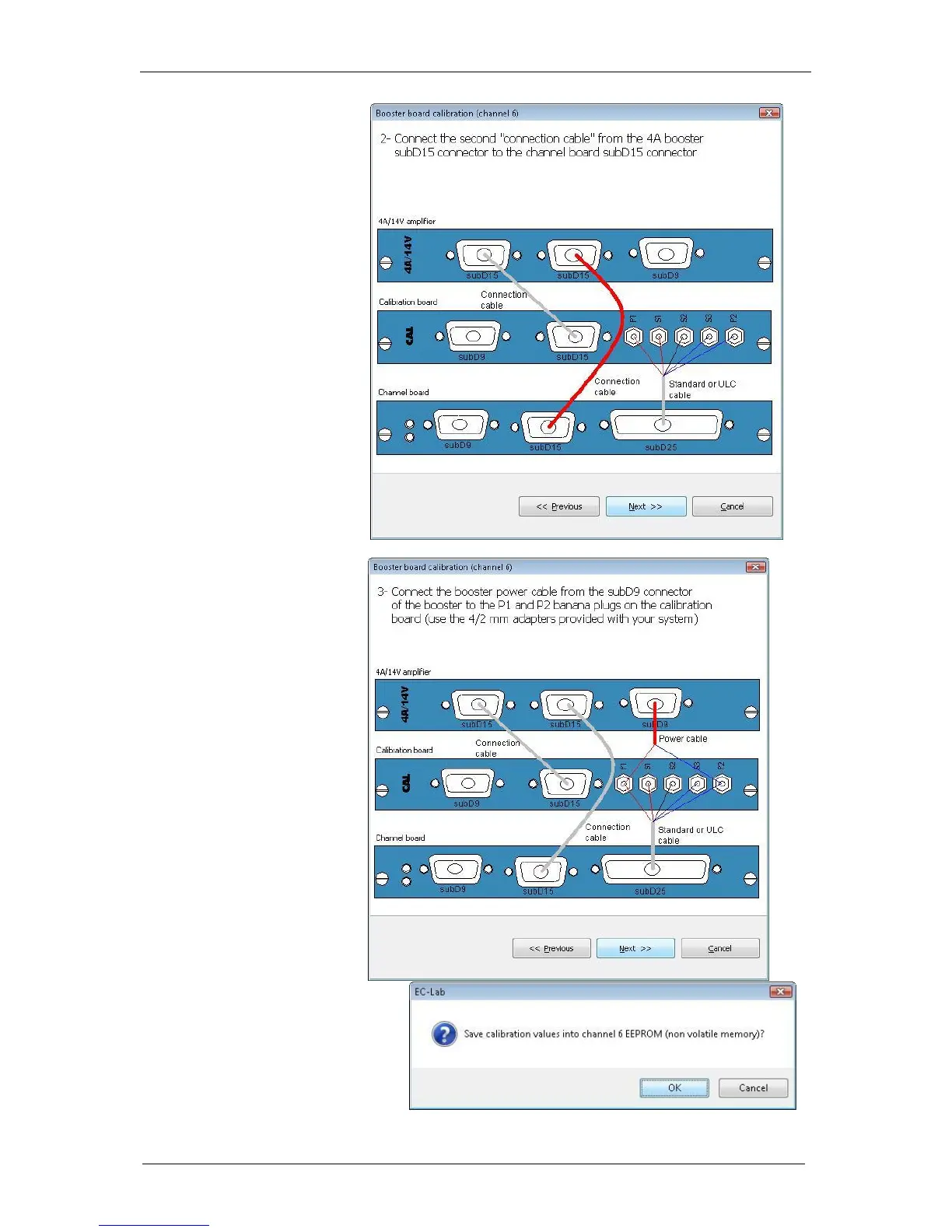

18) Connect the two
DB15 connectors of
the channel and the
amplifier boards as
described below
and click on the
“Next” button.
19) Connect the P1/P2
connector coming
from the amplifier
board to the P1/P2
of the cell cable
coming from the
channel (two 4mm
to 2mm adapters
are provided with
the amplifier board)
and click on the
“Next” button.
20) If all the items pass, the
value of the calibration is
saved in the memory of
the board and/or in the
ULC electrometer. Click
on the ”OK” button to
complete the calibration
process.
