Biobase BSC-4FA2 - Caster and Drain Valve Installation

9
M10*20 Hexagon socket
head bolt + flat washer
10 + spring washer
10 ,through the base,
connect with the M10
welded nut on the
bottom of the cabinet

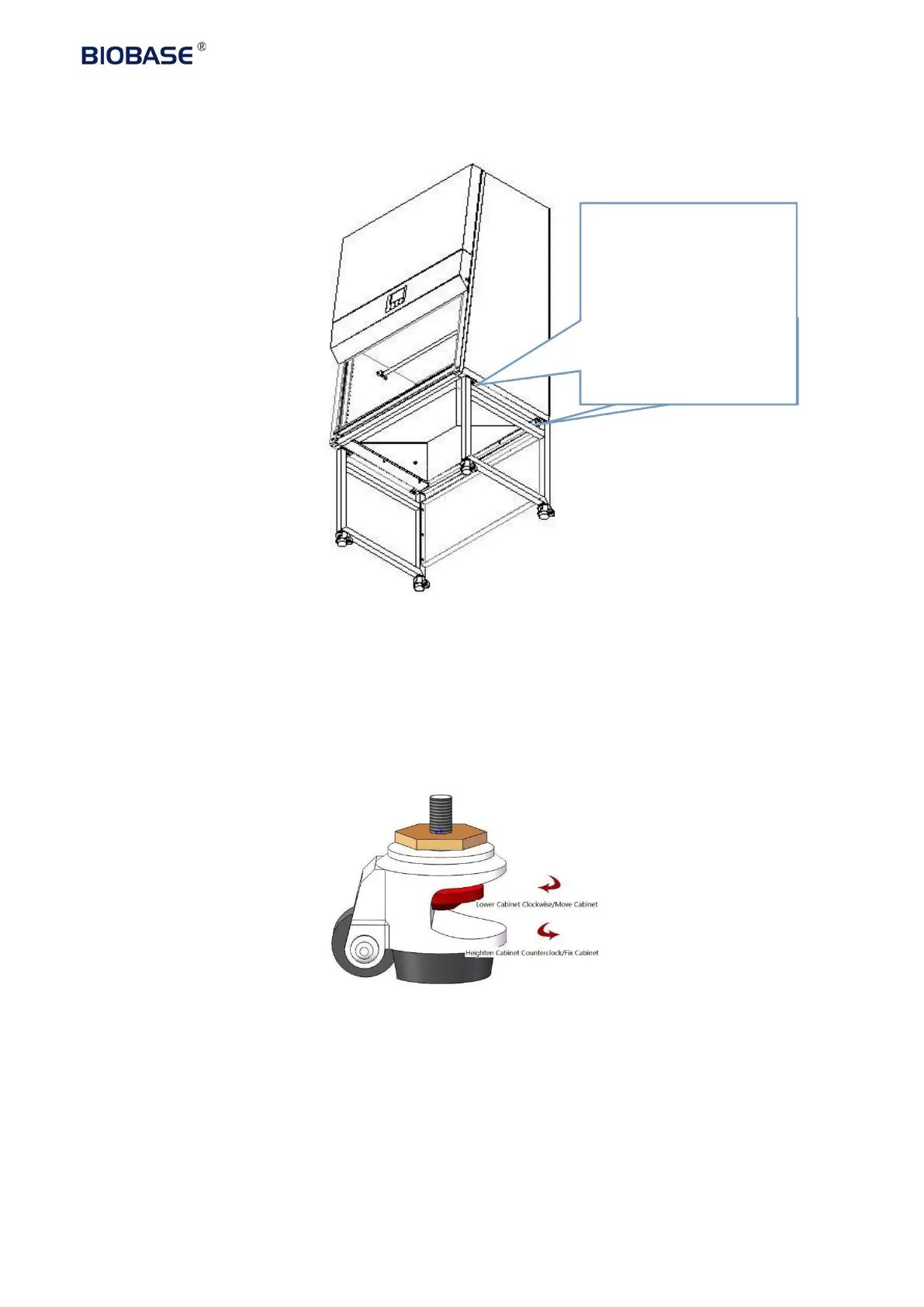

Picture 5
Picture 6
Take out the M10*55 Hexagon socket head screws, Flat washer 10, Spring washer 10 from the
accessory box, and fasten tightly according to Picture 6.
h. Adjustment of Footmaster Caster
Picture 7
Clockwise rotate caster’ red part to low down the base feet and the height of the cabinet. Low down
all four casters can move the cabinet position. Counterclockwise rotate casters’ red part can rise the
base leg and height of cabinet. Adjust all four casters at the same time can makes cabinet stable.
i.Installation of Drain valve.
