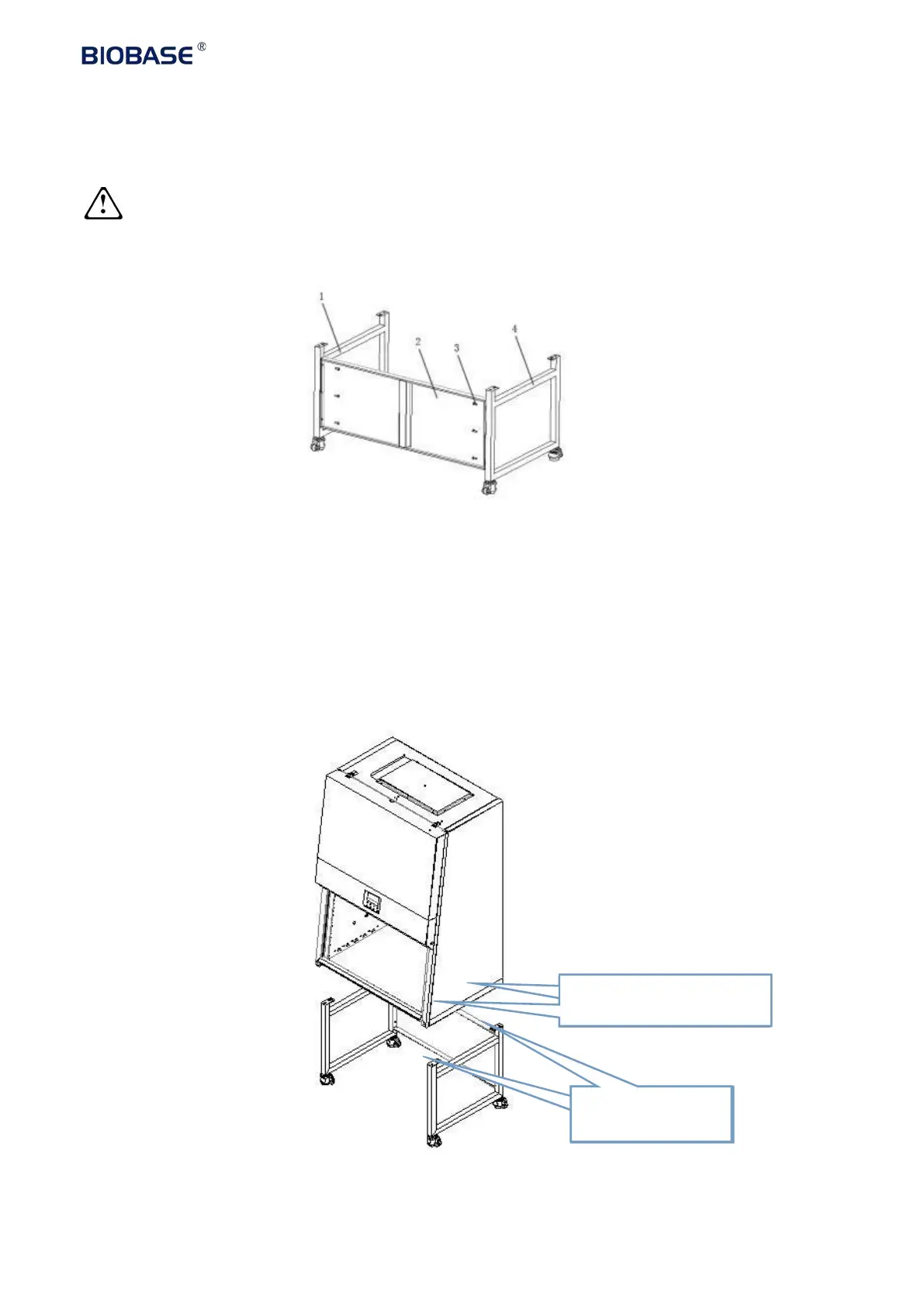

g. The base stand assembly
Referring to Picture 4 assemble the base stand.
Note: The base mounting bolts are fixed to the base stand. When install the base stand,
except the 4 bolts marked with red circle in Picture 5, please remove the other bolts and install.
Picture 4
Remove the M10×20 Hexagon socket head screws, Buckle plug, M10 Stainless steel flat washer,
M10 Stainless steel spring washer, M10 Stainless steel cap nuts, referring to Picture 5 assembled base,
firmly fastening requirements.
Connect base stand and main body
Refer to Picture 5 to connect base stand and main body
